4.8.2 Stand Mounting

To mount the AFL2-12A-HM65 using the stand mounting kit, please follow the steps

below.

Step 1:

Locate the screw holes on the rear of the AFL2-12A-HM65. This is where the

bracket will be attached. (Figure 4-10)

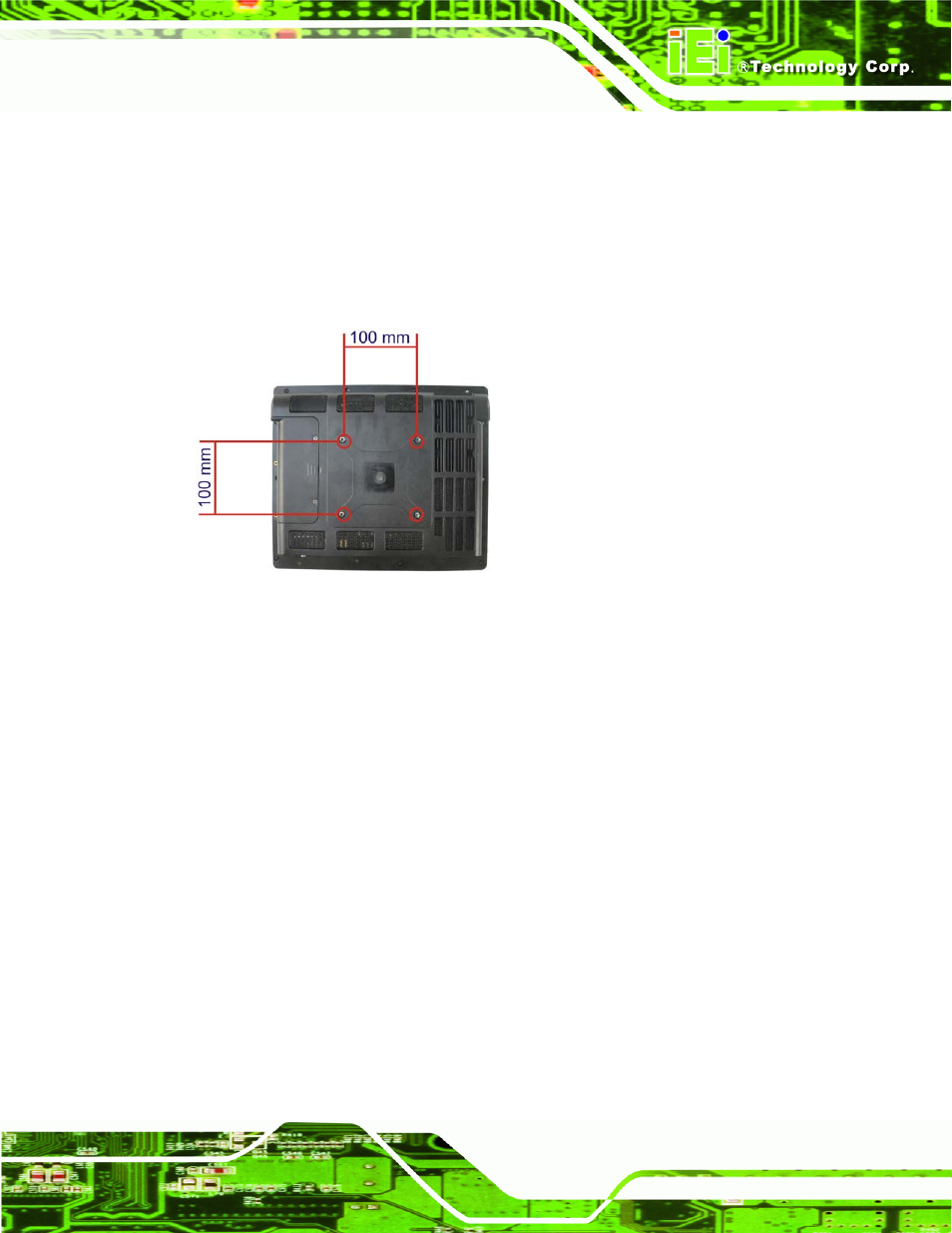

Figure 4-10: Mounting screw location

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the AFL2-12A-HM65, insert the retention screws into

the screw holes and tighten them.

Step 0:

4.8.3 Arm Mounting

The AFL2-12A-HM65 is VESA (Video Electronics Standards Association) compliant and

can be mounted on an arm with a 100mm interface pad. To mount the AFL2-12A-HM65

on an arm, please follow the steps below.

Step 1:

The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation

that came with the mounting arm.
