AFL2-12A-HM65 Series Panel PC

Page 32

Revision 2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1

and USB 2.0 compliant devices. Only USB 3.0 connectors are compatible with USB 3.0

devices.

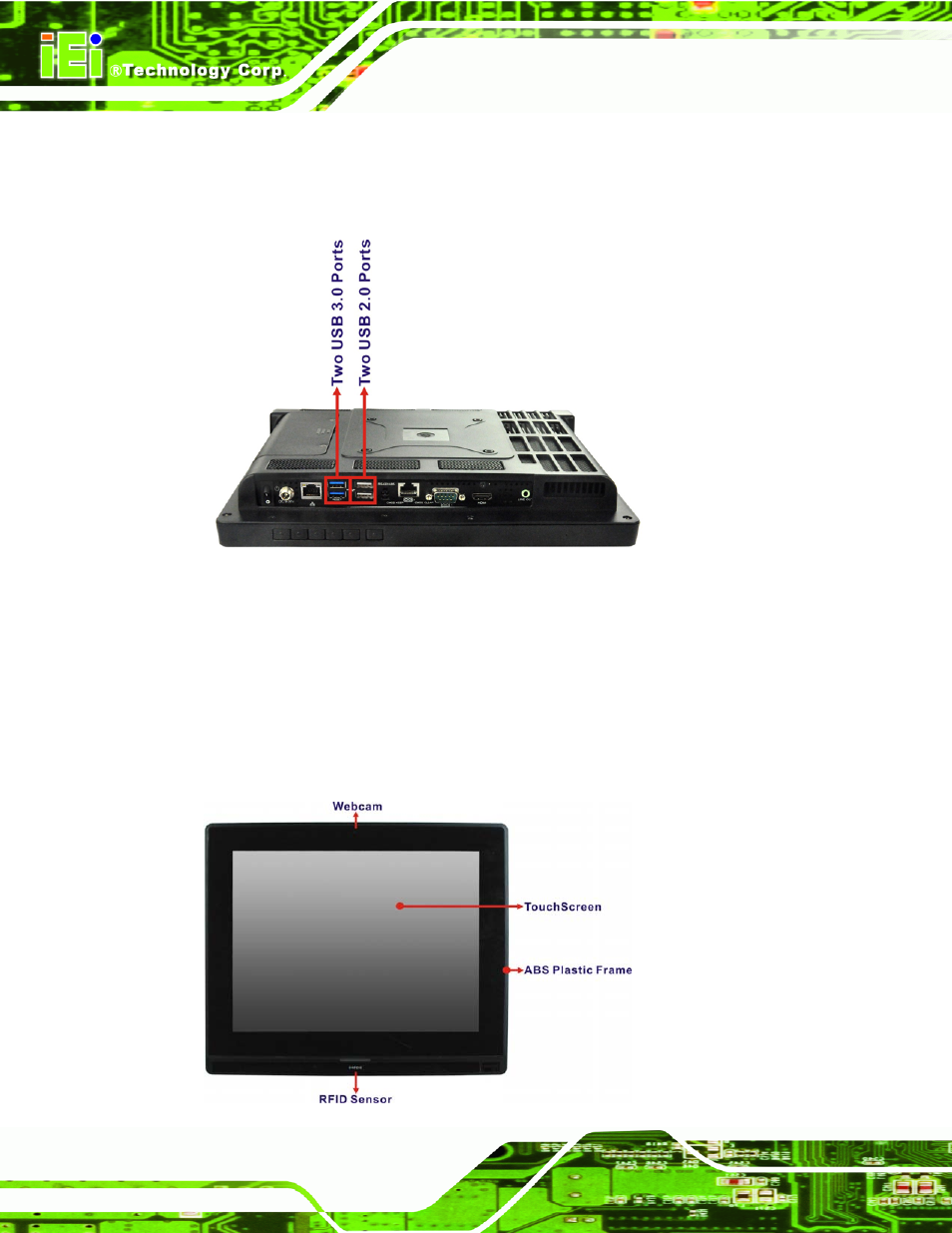

Figure 2-5: External USB Ports

2.5 Touchscreen LCD

2.5.1 Monitor

A 12.1” LCD screen is installed on the front of the AFL2-12A-HM65. The screen is shown

in Figure 2-6 below.
