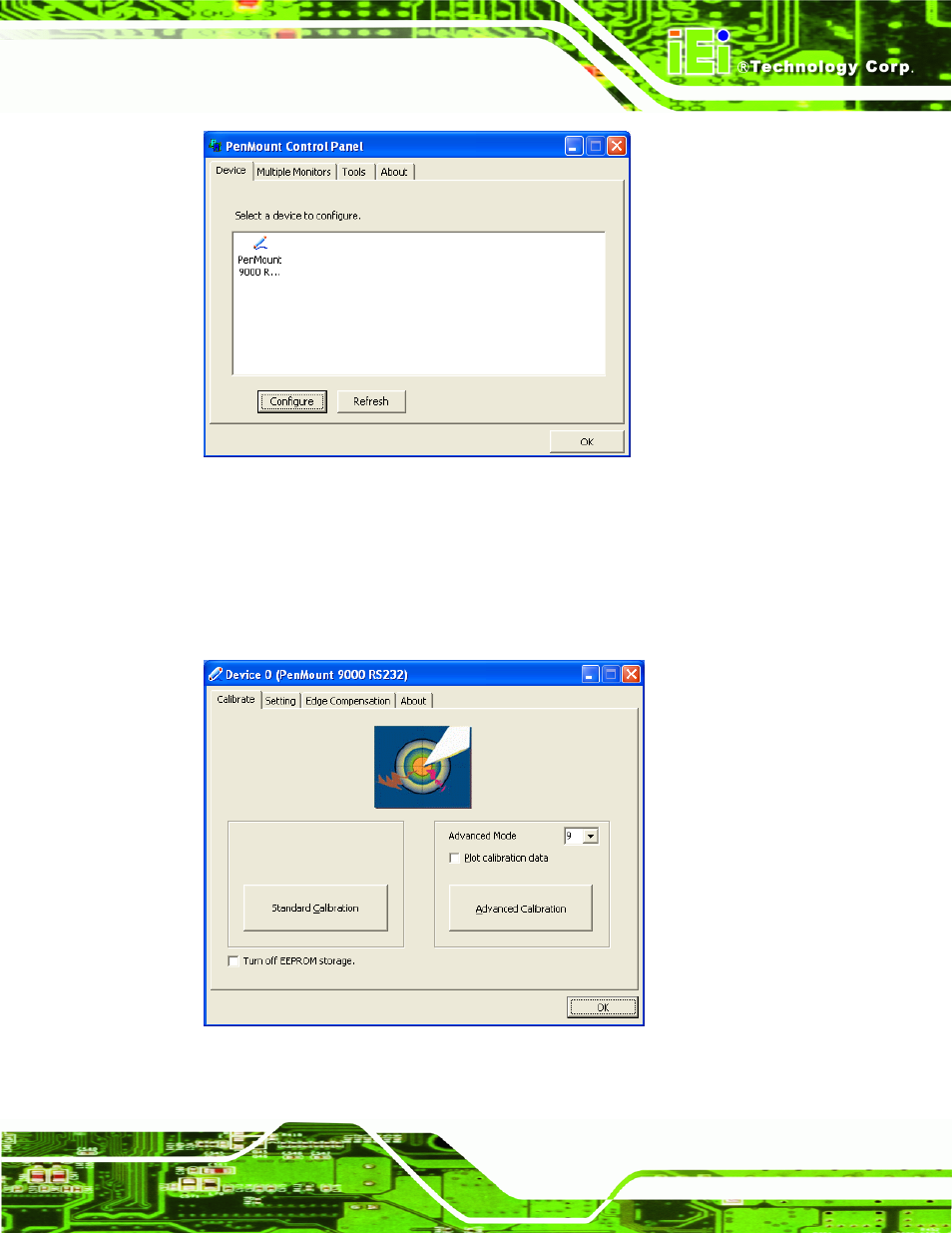

Figure 7-24: Configuration Screen

Step 6:

Double click the PenMount 9000 icon as shown in Figure 7-24.

Step 7:

The calibration initiation screen in Figure 7-25 appears.

Step 8:

Select the Standard Calibration button as shown in Figure 7-25.

Figure 7-25: Calibration Initiation Screen
