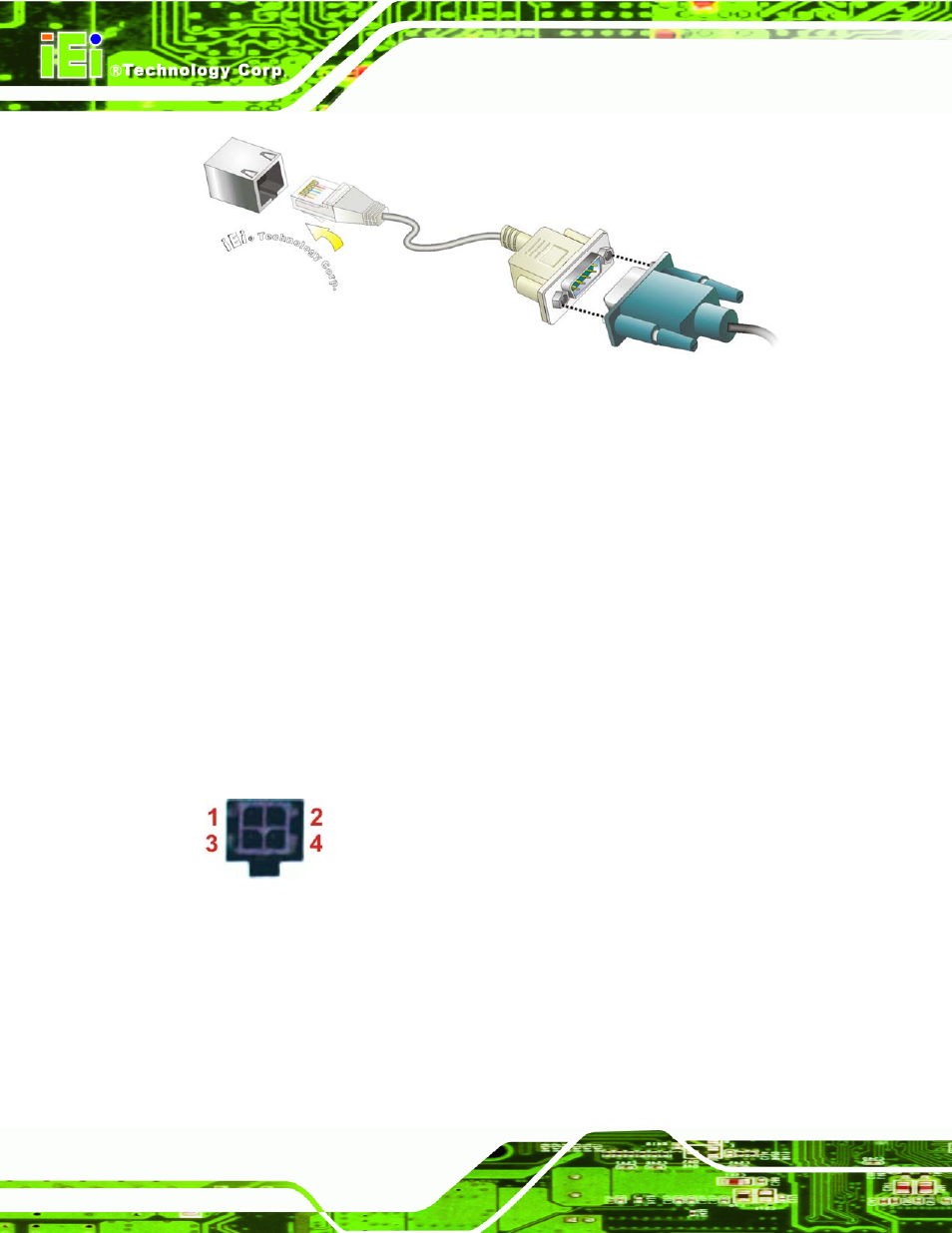

Figure 4-18: RJ-45 Serial Port Connector

Step 4:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

4.9.3 RS-422/485 Serial Port Connection

CN Label:

COM6

CN Type:

4-pin connector

CN Location:

See Figure 4-19

CN Pinouts:

See Table 4-2 and Figure 4-20

A RS-422/485 serial port device can be connected to the RS-422/485 serial port on the

bottom panel. The pinouts of the RS-422/485 serial port are shown below.

Figure 4-19: RS-422/485 Serial Port
