AFL2-12A-HM65 Series Panel PC

Page 55

4.9 Bottom Panel Connectors

4.9.1 LAN Connection

There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors on the bottom panel of the AFL2-12A-HM65.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the bottom panel of the AFL2-12A-HM65. See Figure

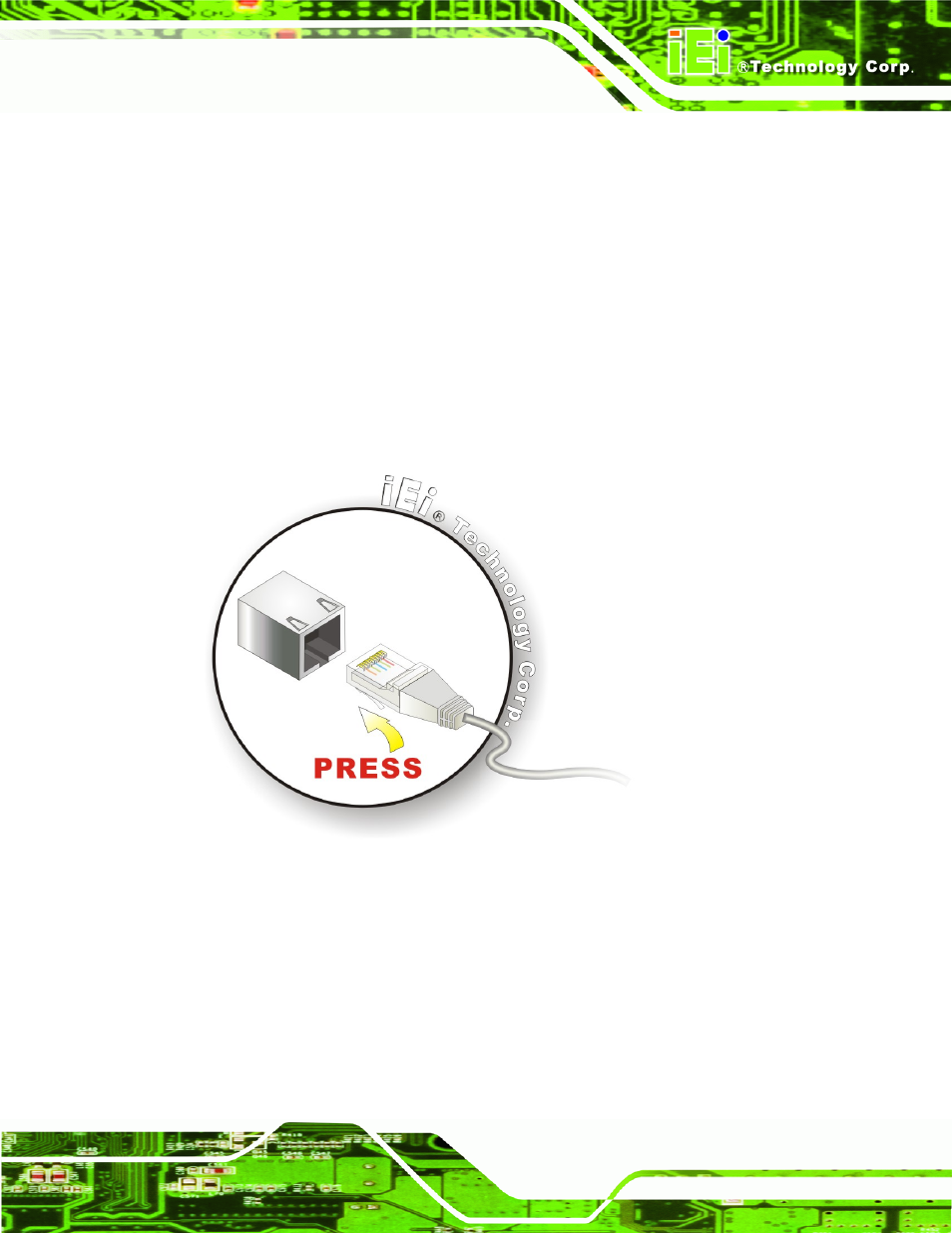

Figure 4-15: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the onboard RJ-45 connector.

Step 0:

4.9.2 Serial Device Connection

The AFL2-12A-HM65 has one male DB-9 port connector and one RJ-45 serial port

connector on the I/O panel for serial device connection.
