TANK-6000-C226 Em b e d d e d S ys te m

P a g e 27

S te p 3:

Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

TANK-6000-C226. See Figure 3-19.

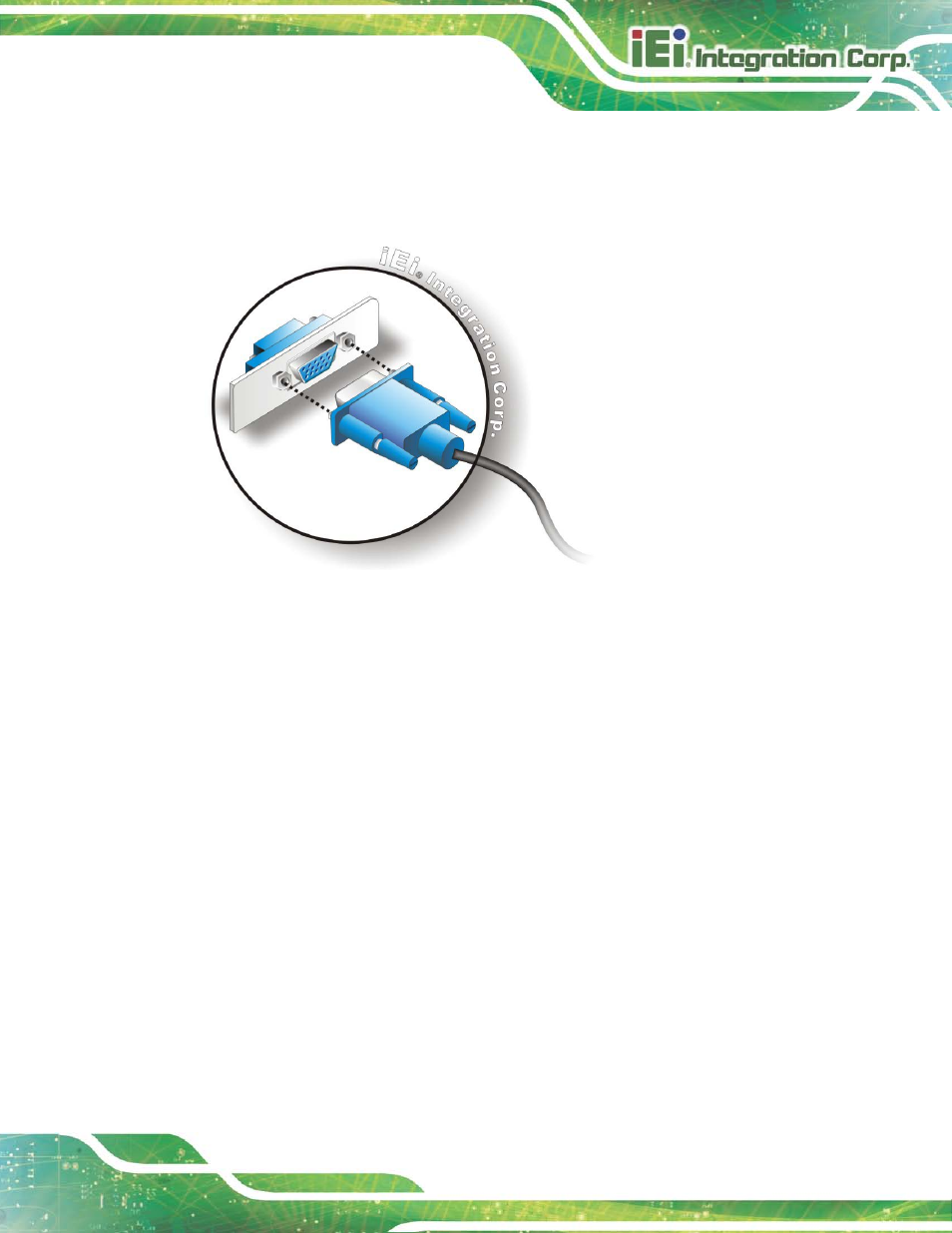

Figure 3-18: VGA Connector

S te p 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
