TANK-6000-C226 Em b e d d e d S ys te m

P a g e 25

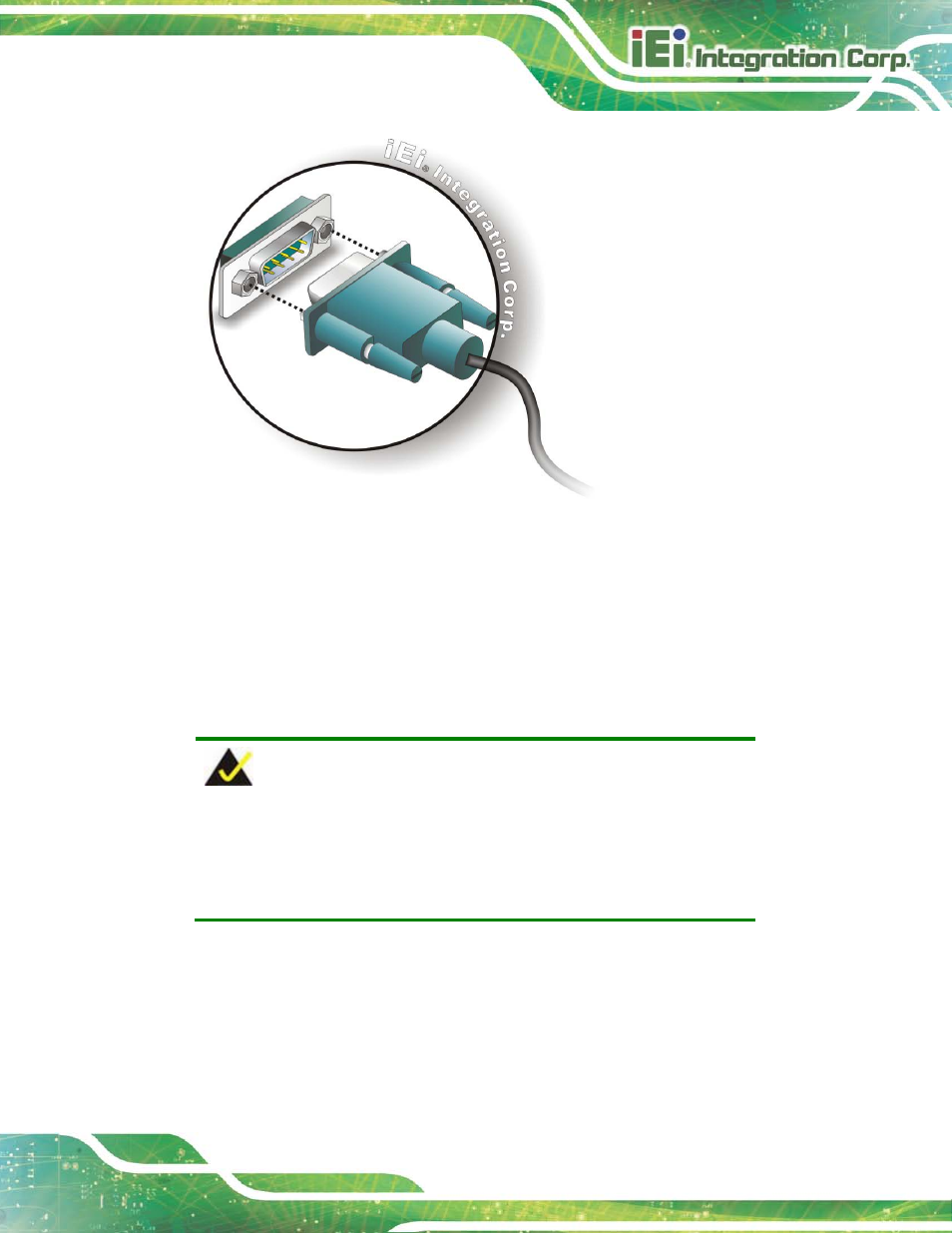

Figure 3-16: DB-9 Serial Port Connector

S te p 3:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

S tep 0:

3.8.5 US B De vic e Co n n e c tio n

NOTE:

User must install the USB 3.0 driver before connecting a USB device to

the system or else the system may not recognize the connected

device.

There are four USB 3.0 connectors and two USB 2.0 connectors on the TANK-6000-C226.

To connect a USB device, please follow the instructions below.

S te p 1:

Locate the USB connectors. The locations of the USB connectors are shown

in Chapter 1.
