TANK-6000-C226 Em b e d d e d S ys te m

P a g e 24

S te p 1:

Locate the RJ-45 connectors. The location of the LAN connector is shown in

Chapter 1.

S te p 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the TANK-6000-C226. See

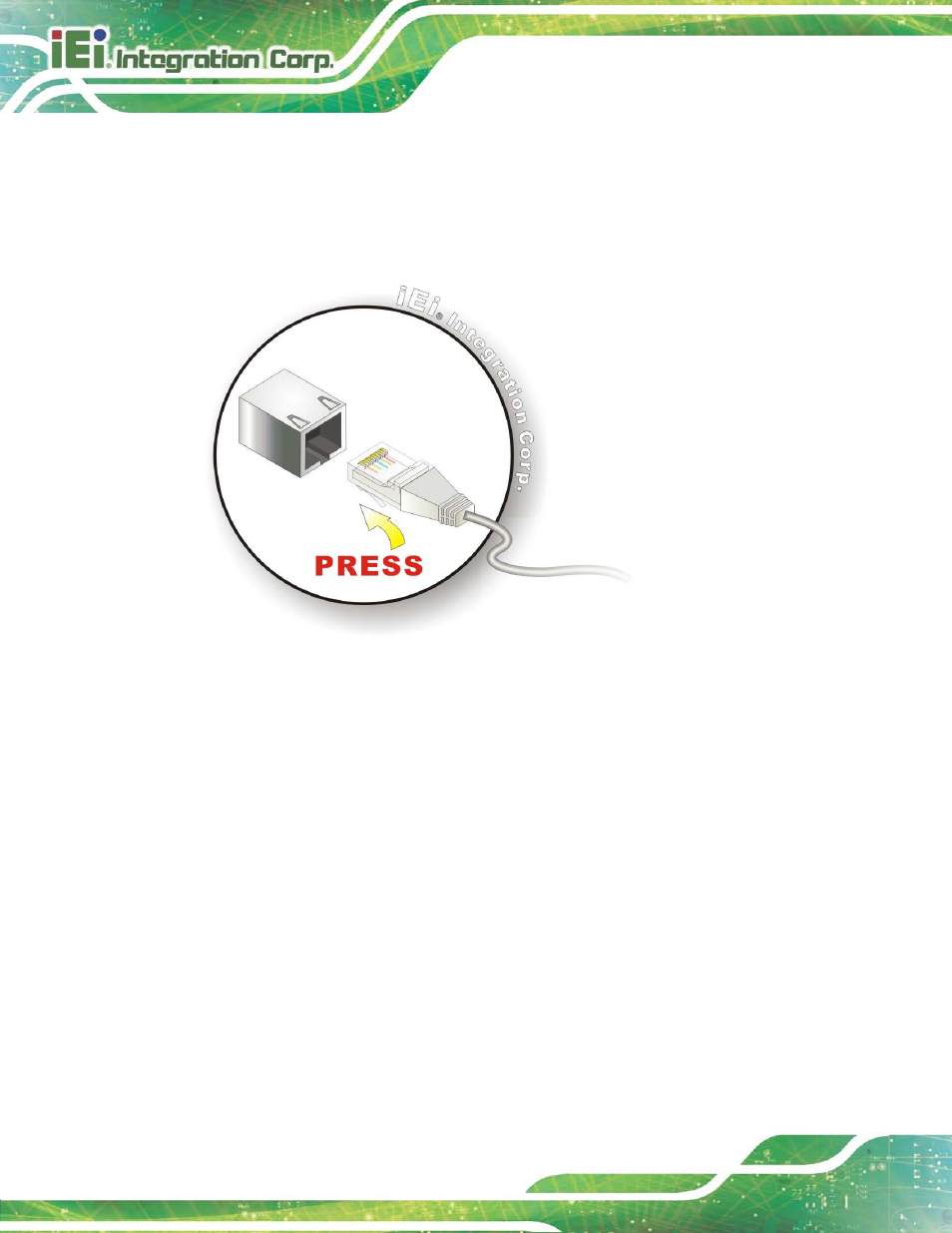

Figure 3-15: LAN Connection

S te p 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the RJ-45 connector.

S te p 0:

3.8.4 DB-9 S e ria l P o rt Co n n e c tio n

There are two RS-232 DB-9 connectors on the TANK-6000-C226. Follow the steps below

to connect a serial device to the DB-9 connector of the TANK-6000-C226.

S te p 1:

Locate the DB-9 connector. The locations of the DB-9 connectors are shown

in Chapter 1.

S te p 2:

Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the rear panel. See Figure 3-16.
