TANK-6000-C226 Em b e d d e d S ys te m
P a g e 23
3.8.2 HDMI De vic e Co n n e c tio n
The HDMI connector transmits a digital signal to compatible HDMI display devices such
as a TV or computer screen. To connect the HDMI cable to the TANK-6000-C226, follow
the steps below.
S te p 1: Locate the HDMI connector. The location is shown in Chapter 1.
S te p 2: Align the connector. Align the HDMI connector with the HDMI port. Make sure
the orientation of the connector is correct.

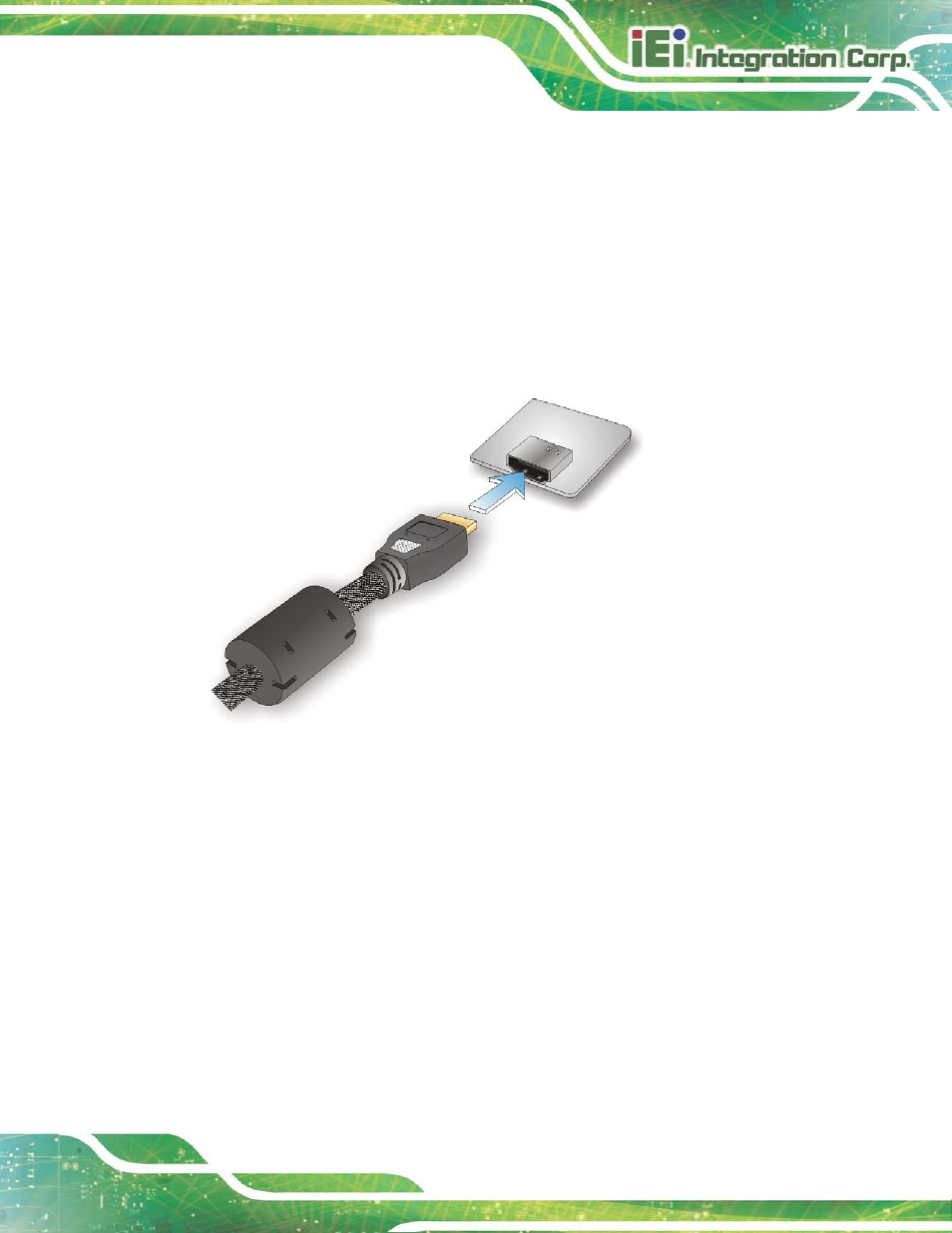

Figure 3-14: HDMI Connection
S te p 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector
should engage with a gentle push. If the connector does not insert easily, check
again that the connector is aligned correctly, and that the connector is being
inserted with the right way up.
3.8.3 LAN Co n n e c tio n
There are four external RJ-45 LAN connectors on the TANK-6000-C226. The RJ-45
connector enables connection to an external network. To connect a LAN cable with an
RJ-45 connector, please follow the instructions below.
