TANK-6000-C226 Em b e d d e d S ys te m

P a g e 16

3.3.2 S e ria l ATA 3.0 Drive In s ta lla tio n

To install the hard disk drive to the SATA 3.0 driver bay, please follow the steps below:

S te p 1:

Unlock the HDD drive bay using the key. The keys can be found in the packing

list.

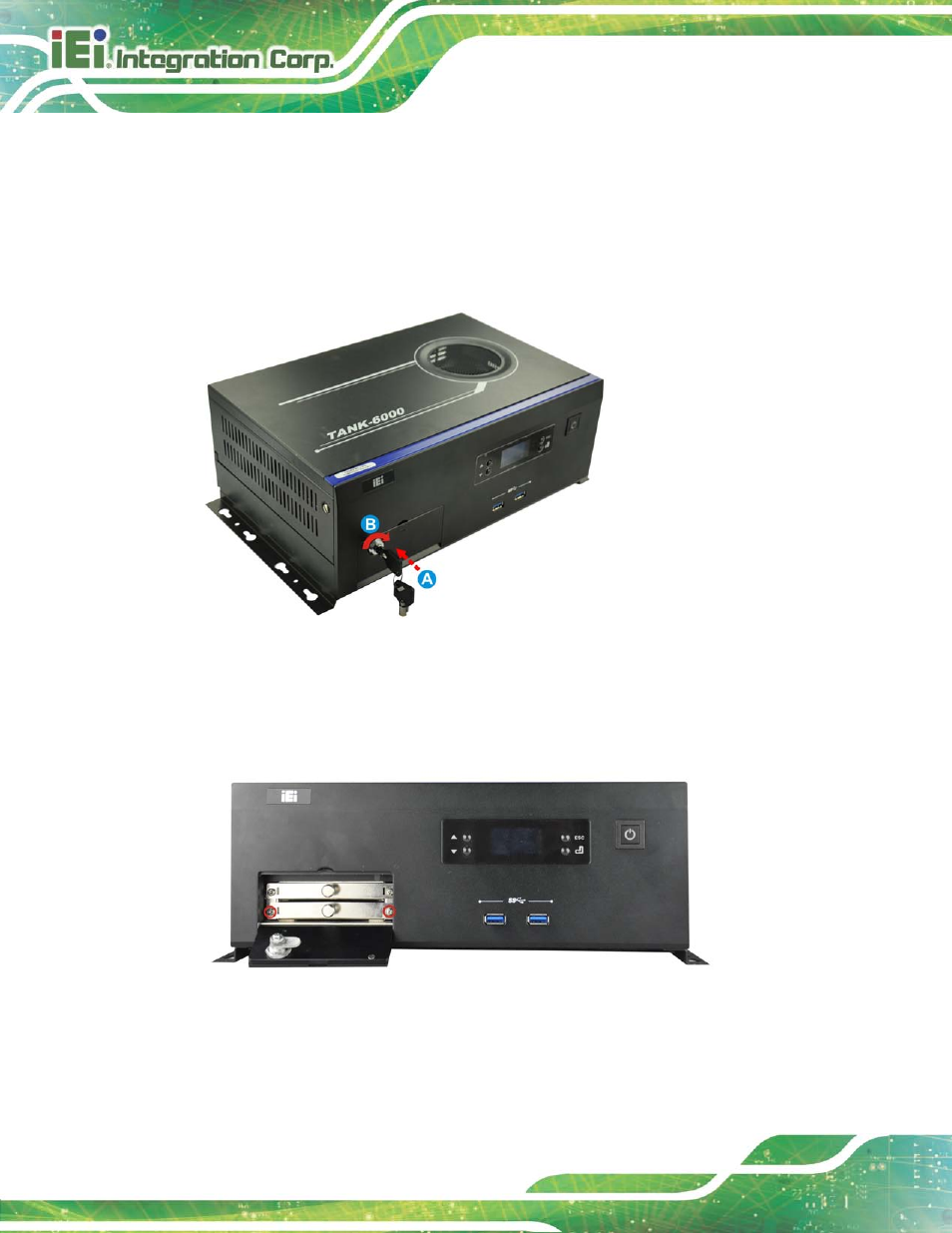

Figure 3-4: HDD Drive Bay

S te p 2:

Loosen two HDD bracket retention screws and lift the HDD bracket out of the

TANK-6000-C226.

Figure 3-5: HDD Bracket Retention Screws

S te p 3:

Slide the HDD to the HDD bracket and secure the HDD to the bracket using four

retention screws.
