ECW-281B/281B2-R30/N270 Embedded System

Page 51

4.2.7 Mounting the System with Wall Mount Kit

To mount the embedded system onto a wall using the VESA MIS-D 100 wall mount kit,

please follow the steps below.

Step 1:

Select the location on the wall for the wall-mounting bracket.

Step 2:

Carefully mark the locations of the four bracket screw holes on the wall.

Step 3:

Drill four pilot holes at the marked locations on the wall for the bracket retention

screws.

Step 4:

Align the wall-mounting bracket screw holes with the pilot holes.

Step 5:

Secure the mounting-bracket to the wall by inserting the retention screws into

the four pilot holes and tightening them (

7

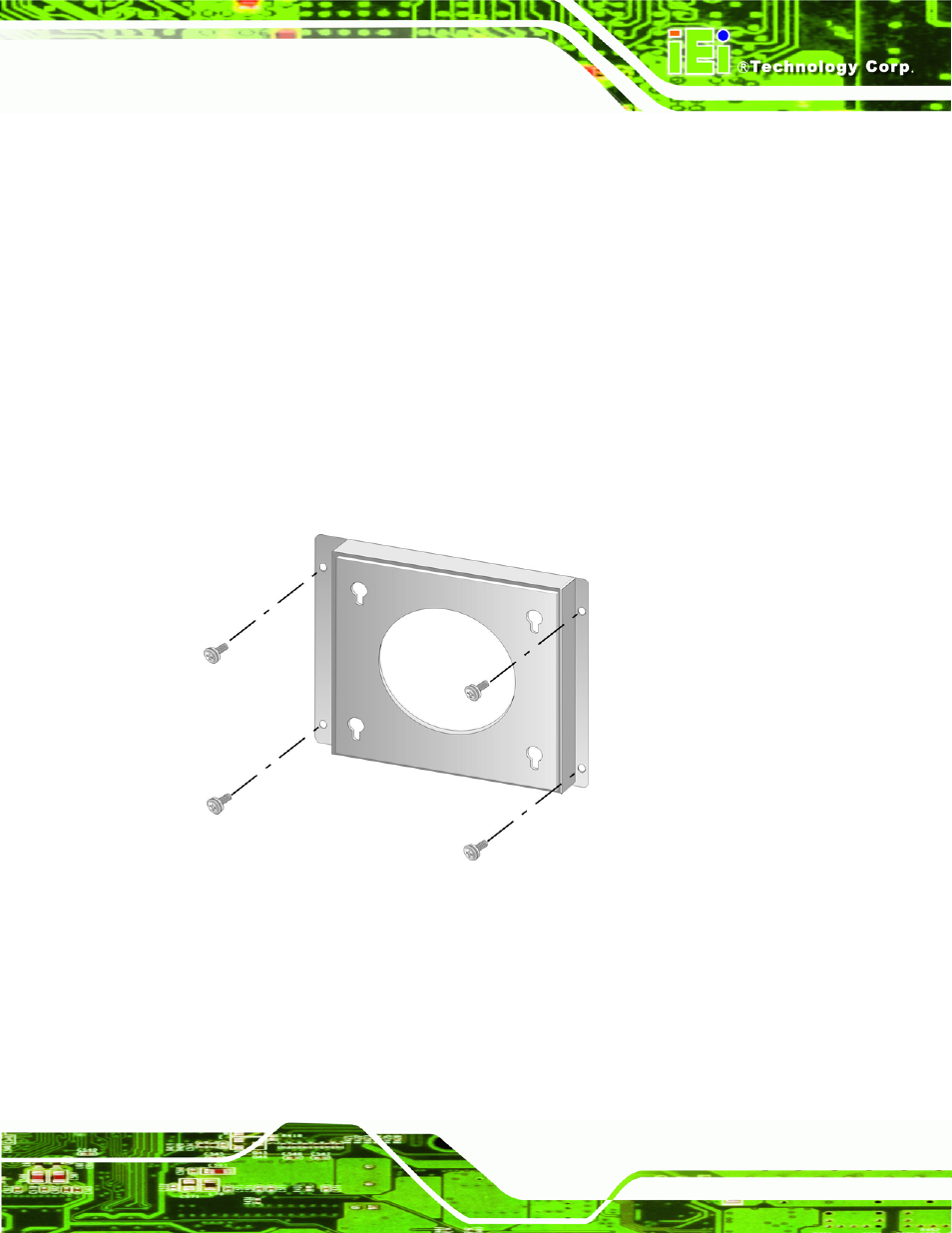

Figure 4-7

).

Figure 4-7: Wall-mounting Bracket

Step 6:

Insert the four monitor mounting screws provided in the wall mounting kit into the

four screw holes on the bottom panel of the system and tighten until the screw

shank is secured against the bottom panel (Figure 4-8).
