ECW-281B/281B2-R30/N270 Embedded System
Page 38
COM2 Mode Setting JP1 6-pin header
Table 3-19: Jumpers
3.5.1 CF Card Setup
Jumper Label: JCF1
Jumper Type: 2-pin header
Jumper Settings: See
77
Table 3-20
Jumper Location: See
77
Figure 3-19
The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave
device or the master device. CF Card Setup jumper settings are shown in
77
Table 3-20.
CF Card Setup Description
OFF Slave Default
Short 1-2 Master
Table 3-20: CF Card Setup Jumper Settings
The CF Card Setup jumper location is shown in
77
Figure 3-19.

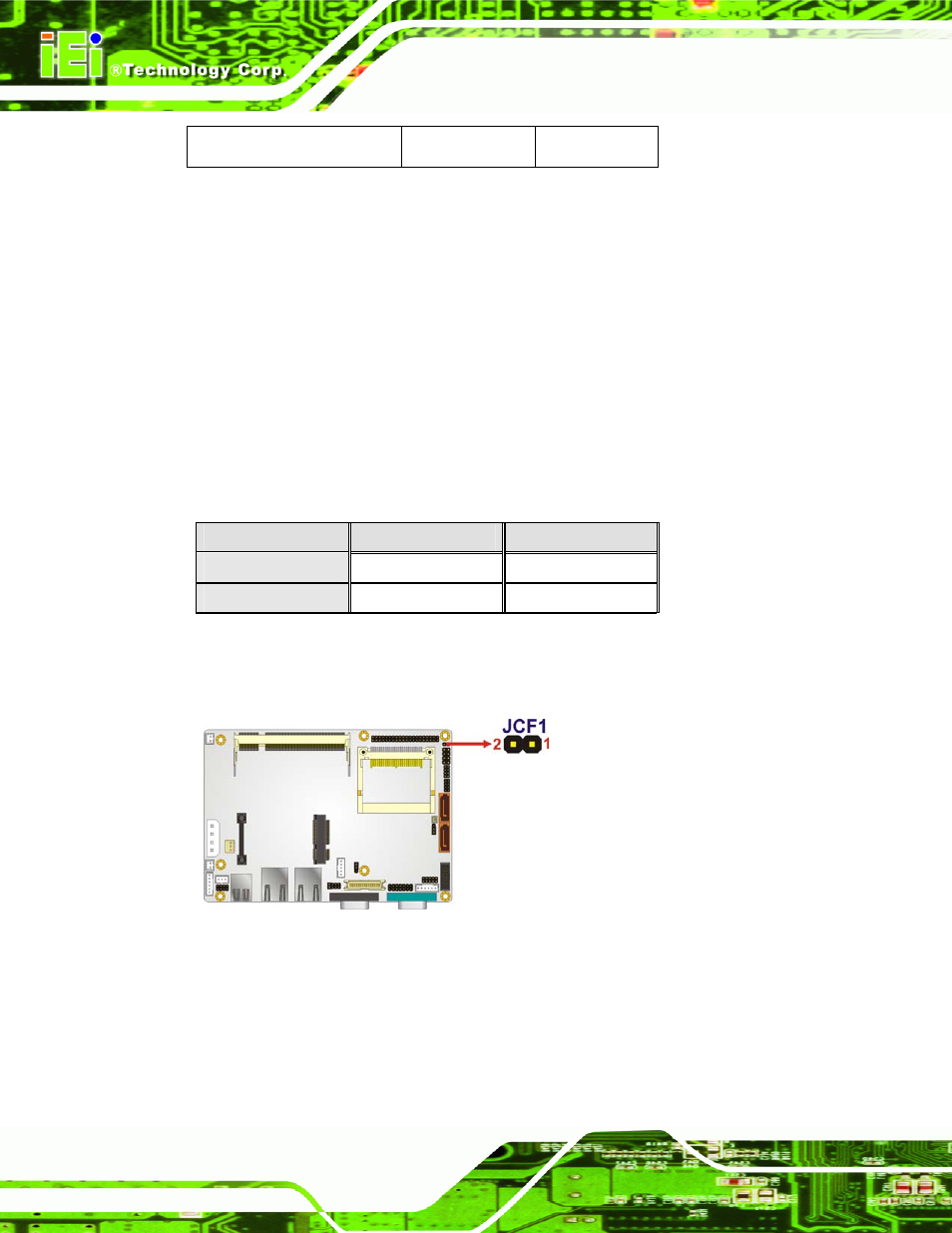

Figure 3-19: CF Card Setup Jumper Location
3.5.2 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type: 3-pin header
