ECW-281B/281B2-R30/N270 Embedded System
Page 49

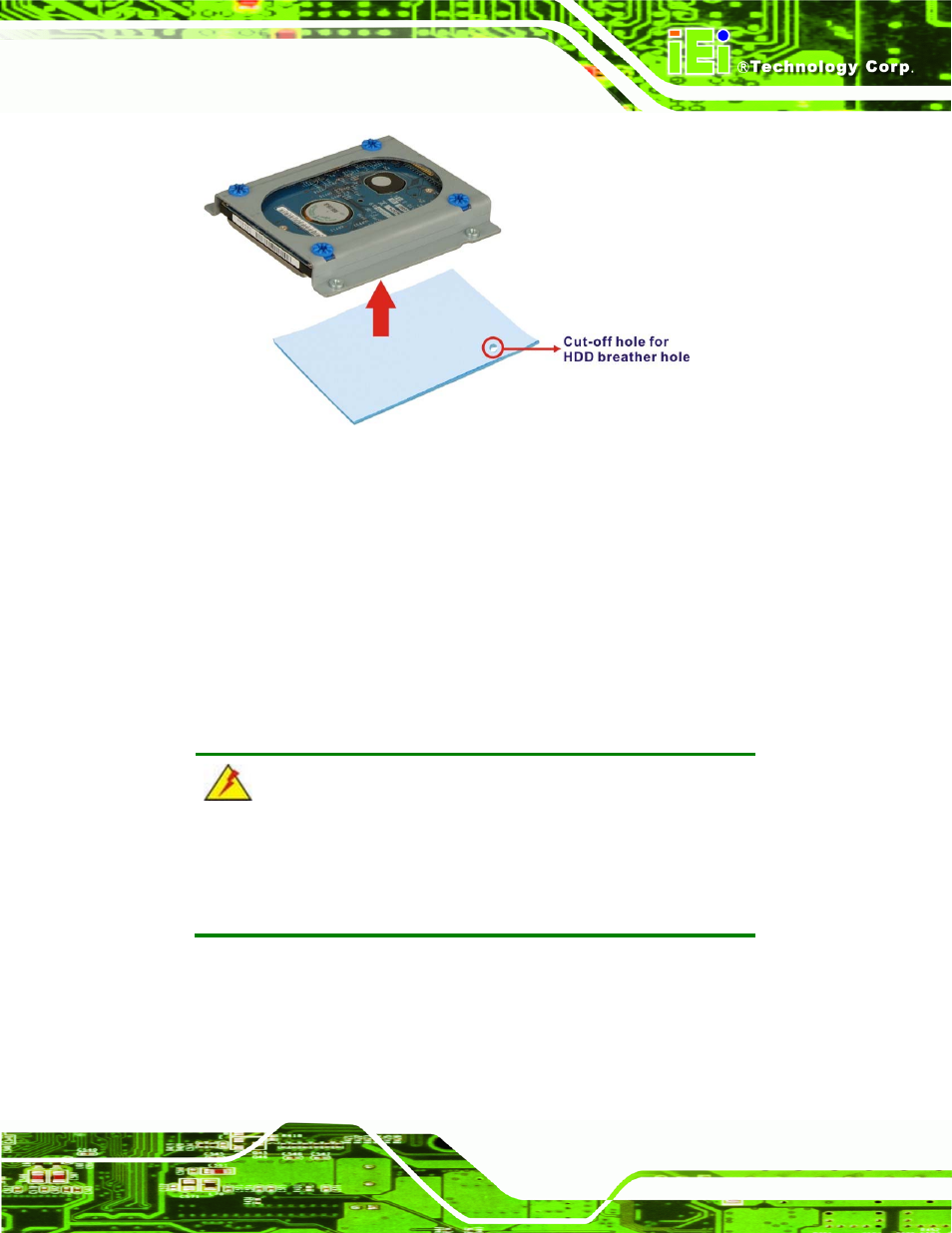

Figure 4-5: HDD Thermal Pad
Step 8: Replace the HDD bracket onto the bottom surface by aligning the four retention
screw holes in the HDD bracket with those in the back of the bottom surface.
Step 9: Reinsert the four previously removed retention screws.
Step 10: Connect the SATA cable connector in the ECW-281B/281B2-R30/N270 to the
HDD.
Step 11: Replace the bottom surface to the bottom panel by reinserting the six previously
removed retention screws. Step 0:
WARNING:
Over-tightening bottom cover screws will cause damage to the bottom
surface. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49
Nm).
