ECW-281B/281B2-R30/N270 Embedded System
Page 151

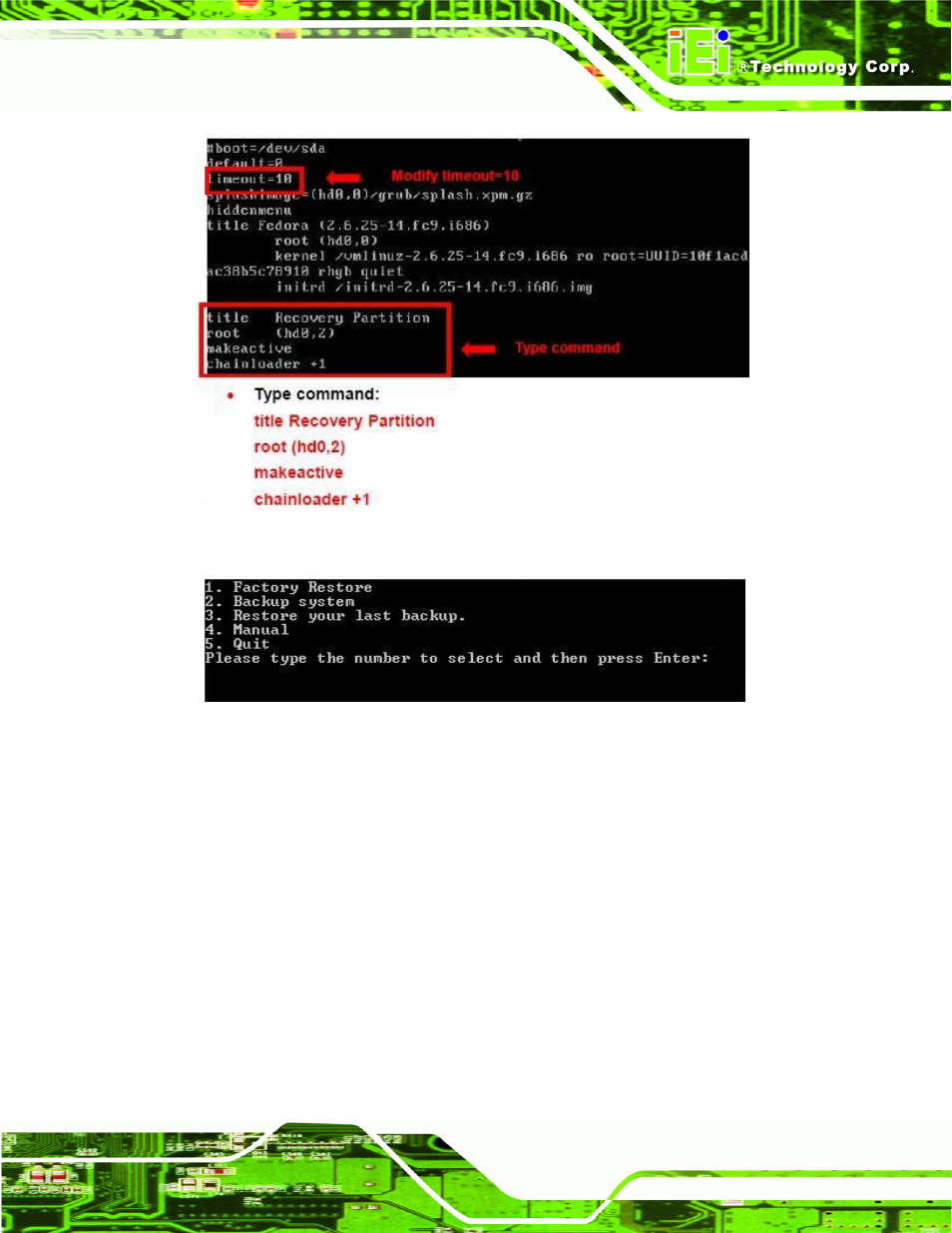

Step 7: The recovery tool menu appears. (Figure B-33)
Figure B-33: Recovery Tool Menu
Step 8: Create a factory default image . Follow Step 2 ~ Step 12 described in Section
B.2.5 to create a factory default image. S te p 0 :
B.5 Recovery Tool Functions
After completing the initial setup procedures as described above, users can access the
recovery tool by pressing <F3> while booting up the system. However, if the setup
procedure in Section B.3 has been completed and the auto recovery function is enabled,
the system will automatically restore from the factory default image without pressing the
F3 key. The recovery tool main menu is shown below.
