IEI Integration ECW-281B-N270-WT v3.01 User Manual
Page 62

ECW-281B/281B2-R30/N270 Embedded System
Page 47

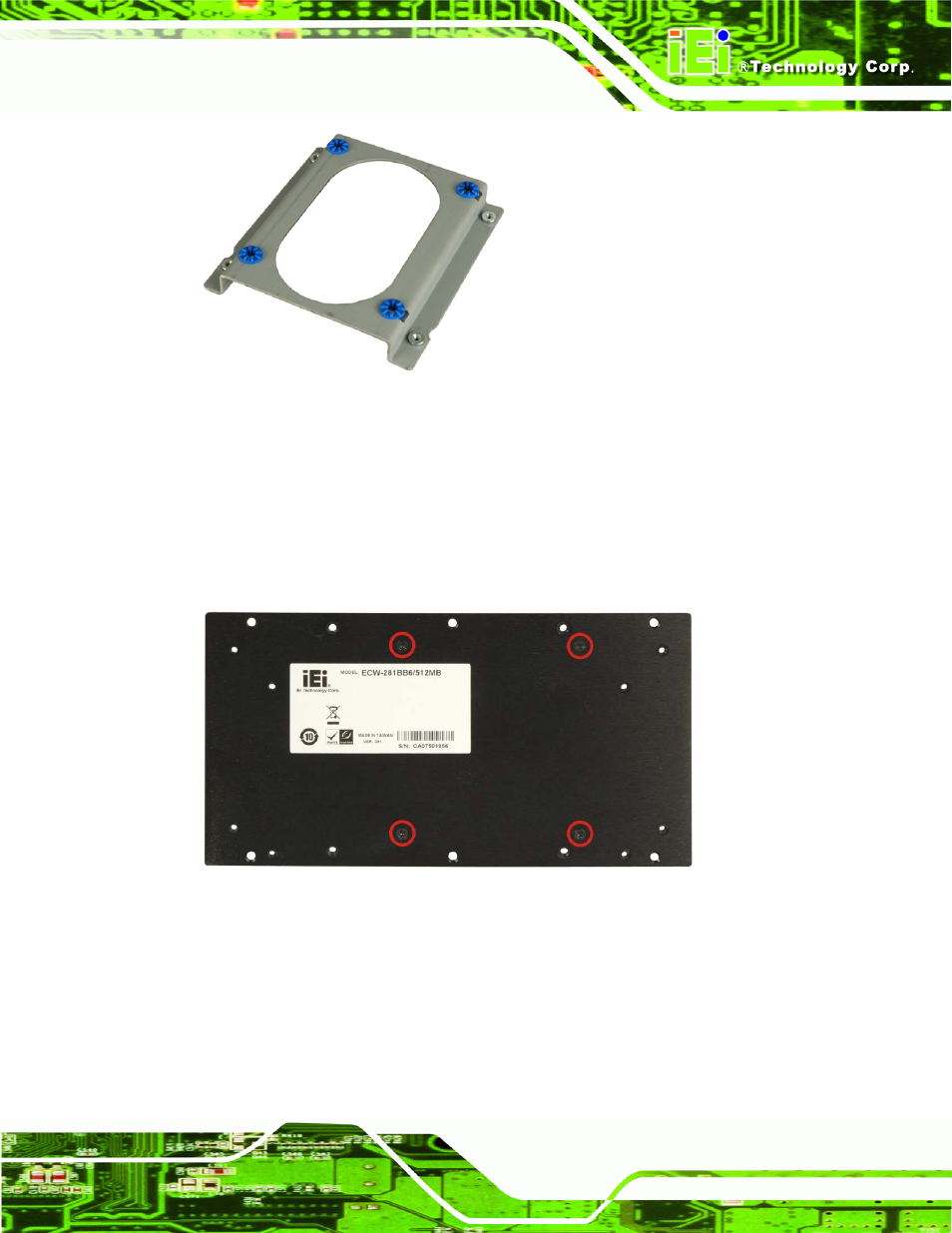

Figure 4-2: Hard Drive Bracket
To install the hard drive into the system, please follow the steps below.
Step 1:
Remove the bottom surface See Section
77
4.2.3.
Step 2:
Remove the hard drive bracket from the bottom surface by removing the four
retention screws that secure the bracket to the bottom surface. (
77
Figure 4-3
)
Figure 4-3:HDD Bracket Retention Screws
Step 3:
Place the HDD into the bracket.
Step 4:
Align the retention screw holes in the HDD with those in the bottom of the
bracket.
