3.3.8 Reset Button Connector
CN Label: RESET1
CN Type: 2-pin wafer (1x2)
CN Location: See
77
Figure 3-9
CN Pinouts: See
77
Table 3-9
The reset button connector is connected to a reset switch on the system chassis to enable
users to reboot the system when the system is turned on.

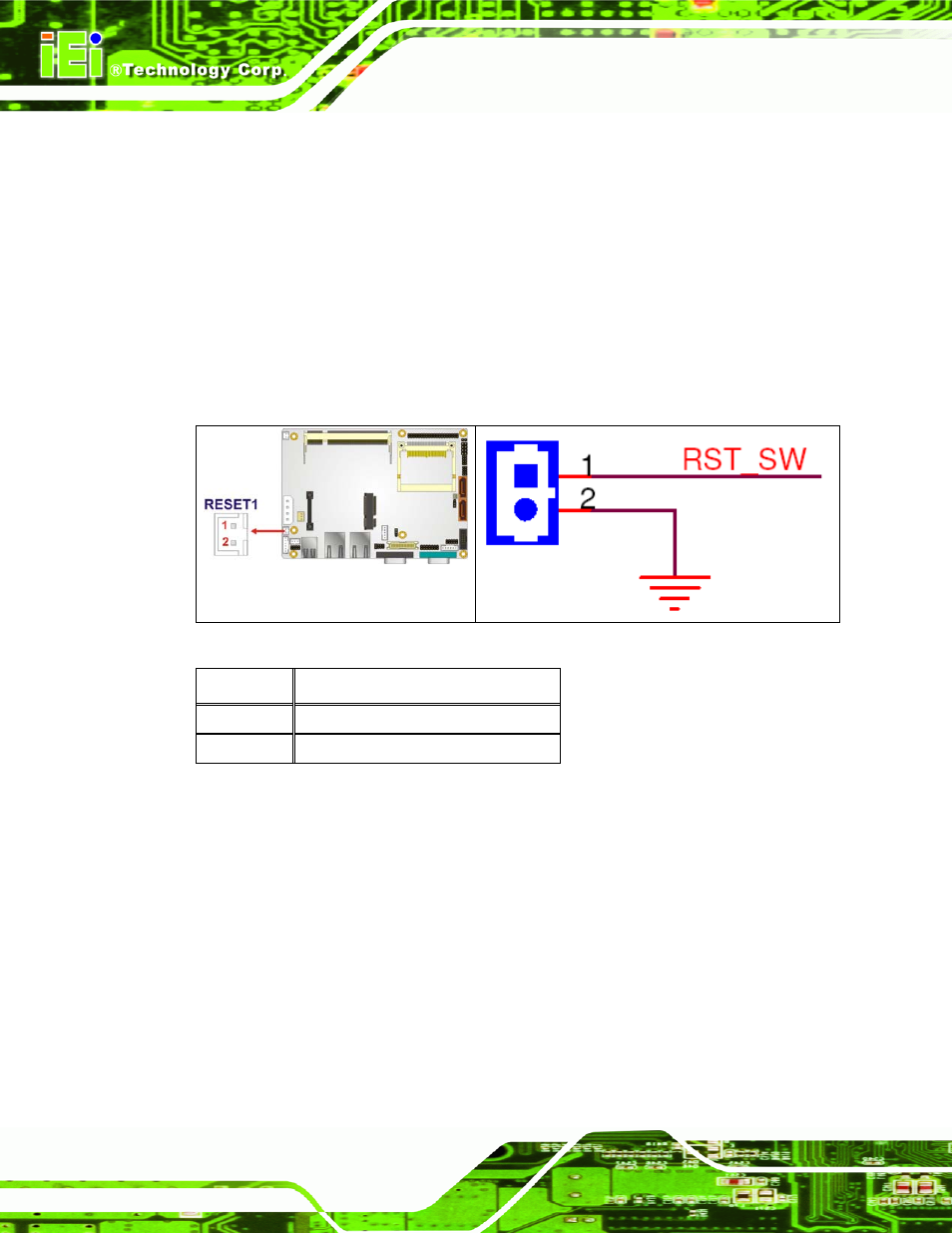

Figure 3-9: Reset Button Connector Locations
PIN NO. DESCRIPTION
1 Reset Switch
2 GND
Table 3-9: Reset Button Connector Pinouts
3.3.9 SATA Drive Connectors
CN Label: SATA1 , SATA2
CN Type: 7-pin SATA drive connectors
CN Location: See
777
Figure 3-10
CN Pinouts: See
777
Table 3-10
