The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
777
Table 3-15 .
STATUS DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 3-15: RJ-45 Ethernet Connector LEDs
3.4.2 Serial Port Connector (COM1)
CN Label: COM1
CN Type: DB-9 connectors
CN Location: See
777
Figure 3-14
CN Pinouts: See
777
Table 3-16 and
777
Figure 3-16
The 9-pin DB-9 serial port connectors are connected to RS-232 serial communications
devices.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
Table 3-16: RS-232 Serial Port (COM 1) Pinouts

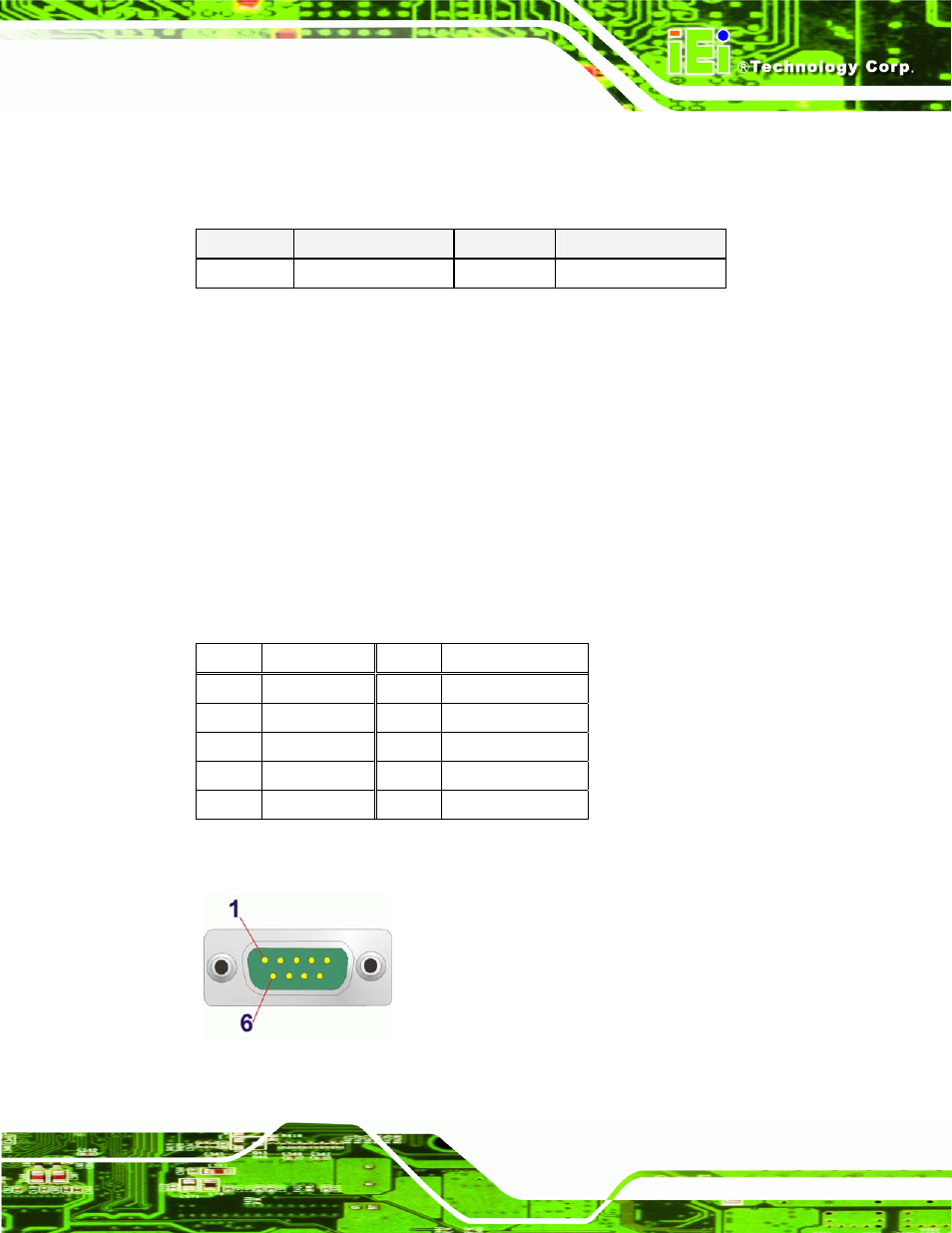

Figure 3-16: COM1 Pinout Locations
