ECW-281B/281B2-R30/N270 Embedded System
Page 46

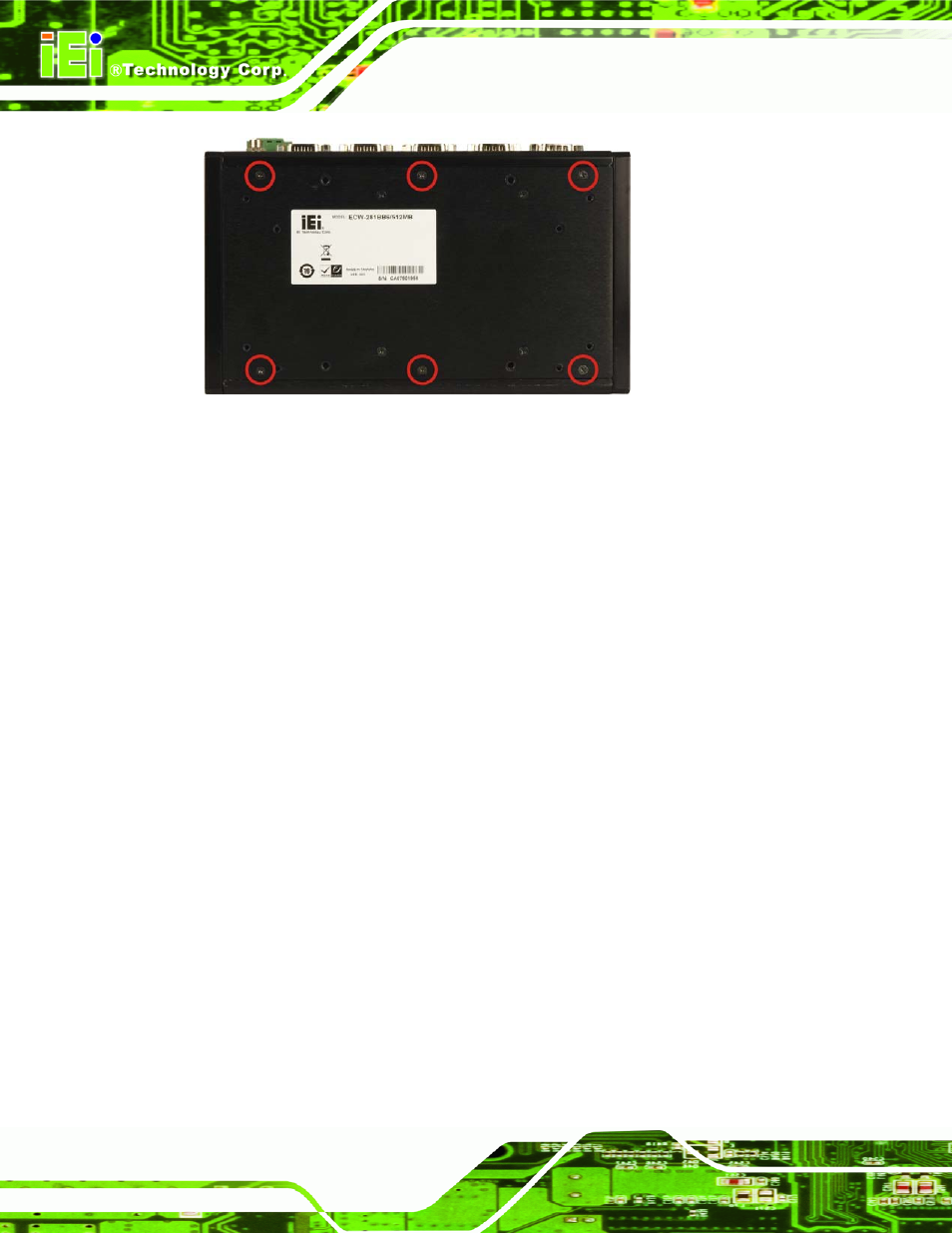

Figure 4-1: Bottom Surface Retention Screws
Step 2: Gently remove the bottom surface from the ECW-281B/281B2-R30/N270.
Step 0:
4.2.4 Configure the Jumper Settings
To configure the jumper settings, please follow the steps below.
Step 1: Remove the bottom surface. See Section
77
4.2.3 .
Step 2: Locate the jumper settings on the embedded motherboard. See Chapter
77
3 .
Step 3: Make the jumper settings in accordance with the settings described and defined
in Chapter
77
3 .
4.2.5 Hard Drive Installation
One 2.5” SATA hard drive supported. The SATA drive is installed into a hard drive bracket
attached on the inside of the bottom panel (
77
Figure 4-2 ).
