IMB-H612 Mic ro -ATX Mo th e rb o a rd

P a g e 64

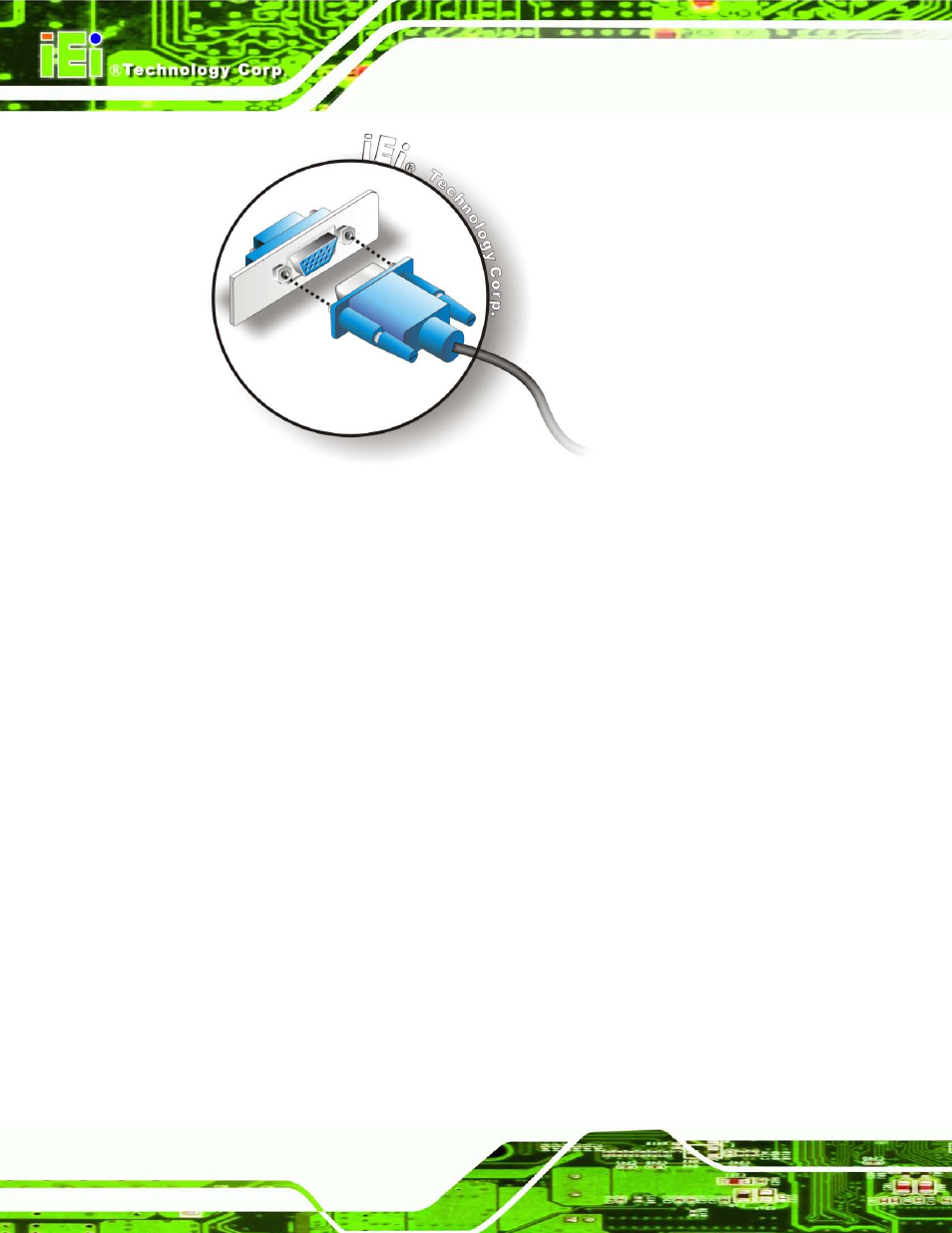

Figure 4-19: VGA Connector

S te p 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
