IMB-H612 Mic ro -ATX Mo th e rb o a rd
P a g e 2
1.1 In tro d u c tio n

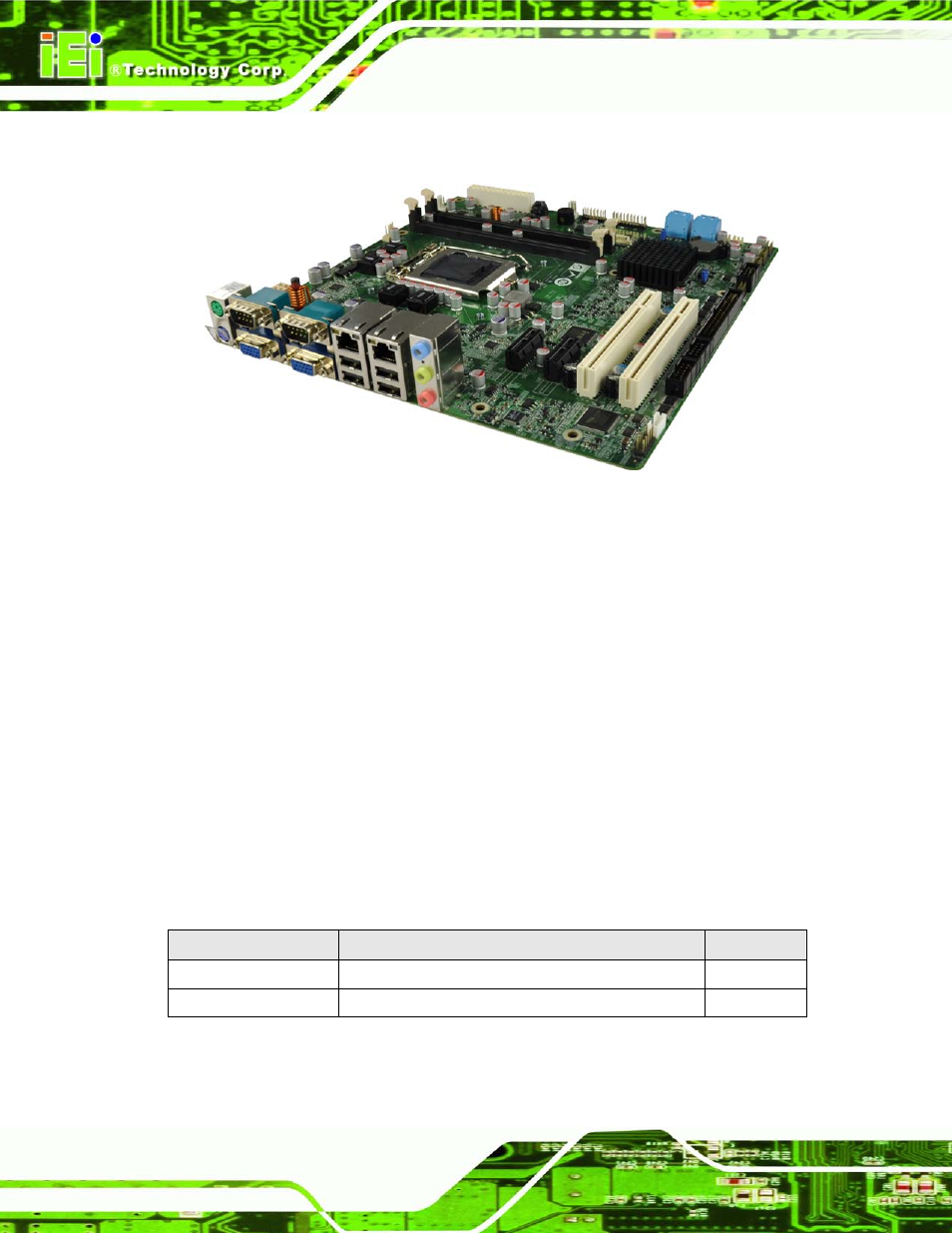

Figure 1-1: IMB-H612
The IMB-H612 is a Micro-ATX motherboard. It accepts a LGA1155 Intel® Core™ i3/i5/i7
processor and supports two 240-pin 1333/1066 MHz dual-channel DDR3 DIMM modules
up to 16 GB.
The integrated Intel® H61 System Chipset supports two GbE LAN ports through dual
Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 supported). The IMB-H612
includes two VGA ports. Expansion and I/O include two PCI slots, two PCIe x1 slots, four
USB 2.0 ports on the rear panel, six USB 2.0 ports by pin header, four SATA 3Gb/s
connectors and one external PS/2 keyboard/mouse port. Serial device connectivity is
provided by one internal RS-422/485 connector, two external RS-232 and three internal
RS-232 connectors for IMB-H612A or seven internal RS-232 connectors for IMB-H612B.
1.2 Mo d e l Va ria tio n s
The model variations of the IMB-H612 series are listed below.
Models
CPU
Serial Ports
IMB-H612A-R10
Intel® Core™ i3/i5/i7, Pentium®, Celeron® processor
Six
IMB-H612B-R10
Intel® Core™ i3/i5/i7, Pentium®, Celeron® processor
Ten
Table 1-1: Model Variations
