IMB-H612 Mic ro -ATX Mo th e rb o a rd
P a g e 59
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker.
Microphone (Pink): Connects a microphone.

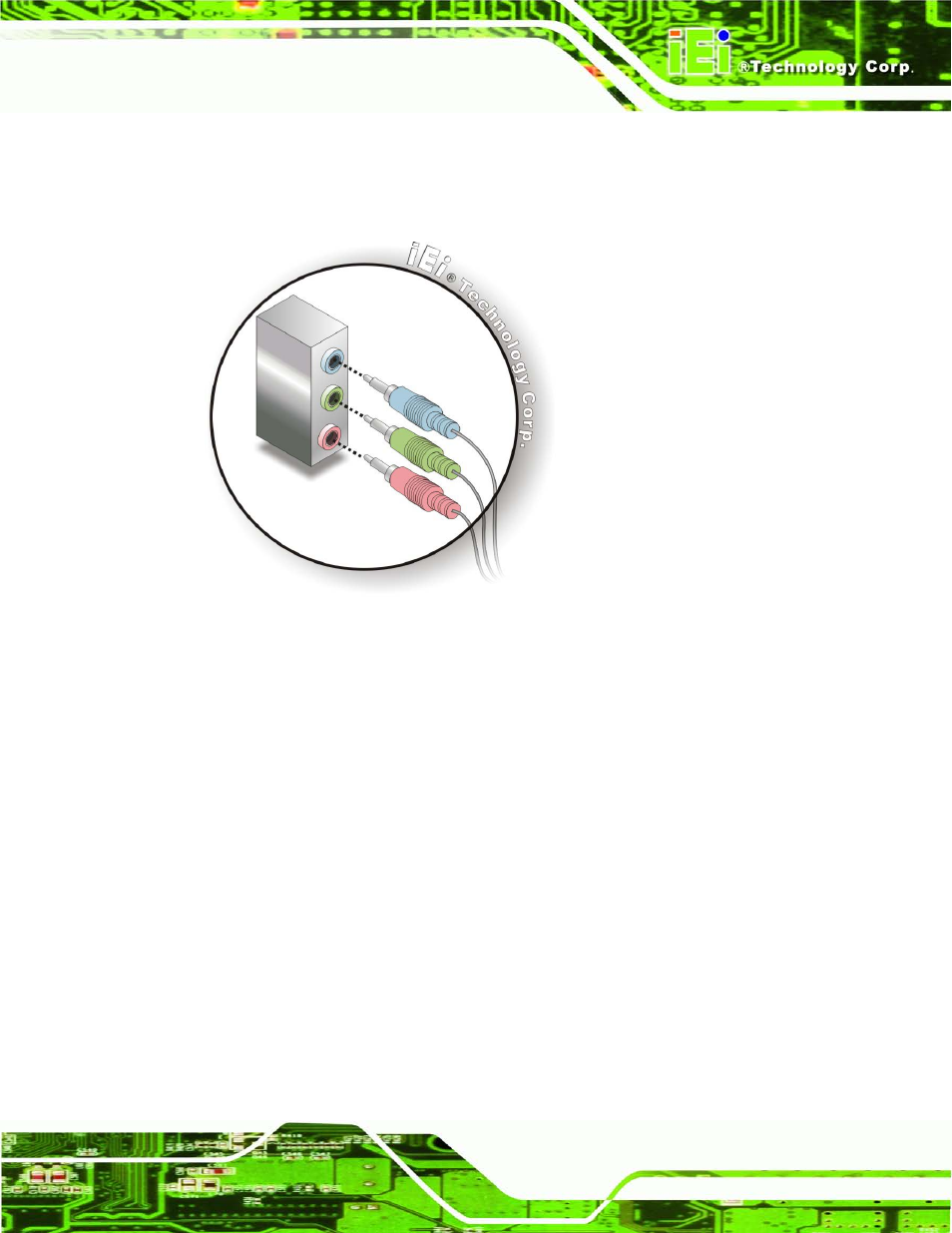

Figure 4-14: Audio Connector
S te p 3:
Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.6.2 LAN Co n n e c tio n
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
S te p 1:
Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 3.
S te p 2:
Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the IMB-H612. See Figure 4-15.
