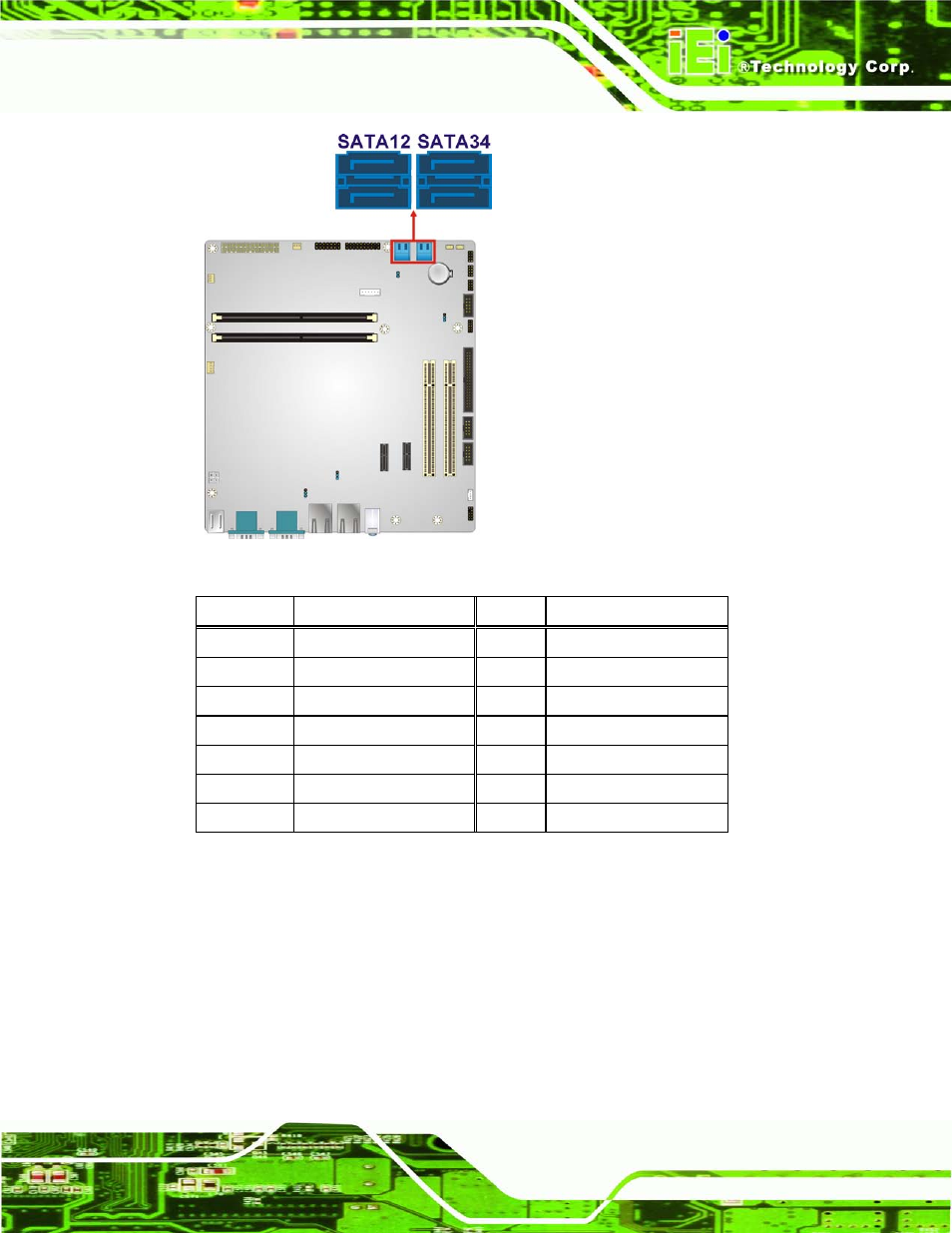

Figure 3-13: SATA 3Gb/s Drive Connector Locations
Pin Description Pin Description
1 GND 2 TXP_A
3 TXN_A 4 GND
5 RXN_A 6 RXP_N
7 GND 8 GND
9 TXP_B 10 TXN_B
11 GND 12 RXN_B
13 RXP_B 14 GND
Table 3-10: SATA 3Gb/s Drive Connector Pinouts
3.2.13 S e ria l P o rt Co n n e c to r, RS -422/485
CN La b e l: COM6
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-14
CN P in o u ts : See Table 3-11
