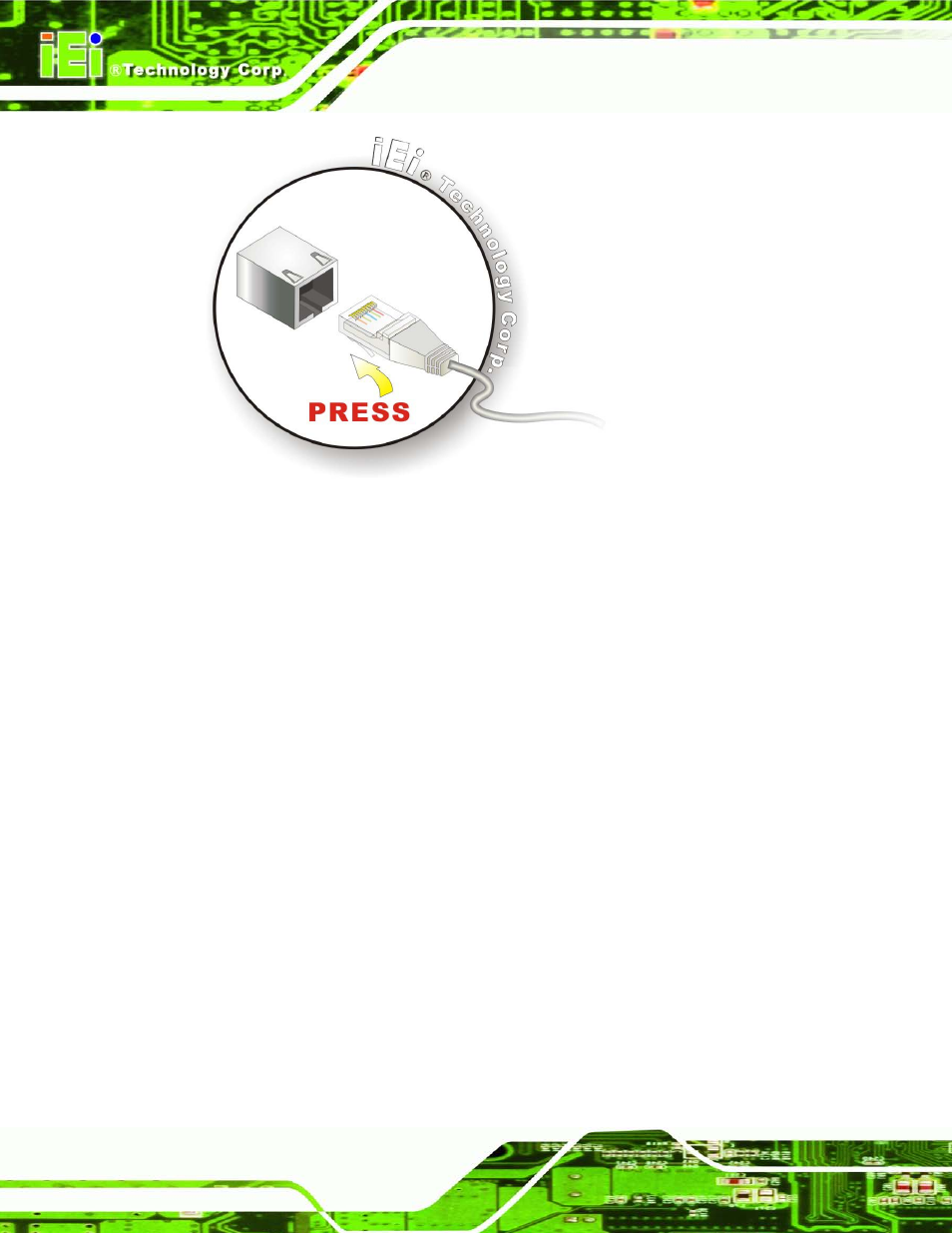

Figure 4-15: LAN Connection
S te p 3:
Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector.
4.6.3 P S /2 Ke yb o a rd a n d Mo u s e Co n n e c tio n
The IMB-H612 has a dual PS/2 connector on the external peripheral interface panel. The
dual PS/2 connector is used to connect to a keyboard and mouse to the system. Follow
the steps below to connect a keyboard and mouse to the IMB-H612.
S te p 1:
Locate the dual PS/2 connector. The location of the dual PS/2 connector is
shown in Chapter 3.
S te p 2:
Insert the keyboard/mouse connector.
Insert a PS/2 keyboard or mouse
connector into the appropriate PS/2 connector on the external peripheral
interface connector. See Figure 4-16.
