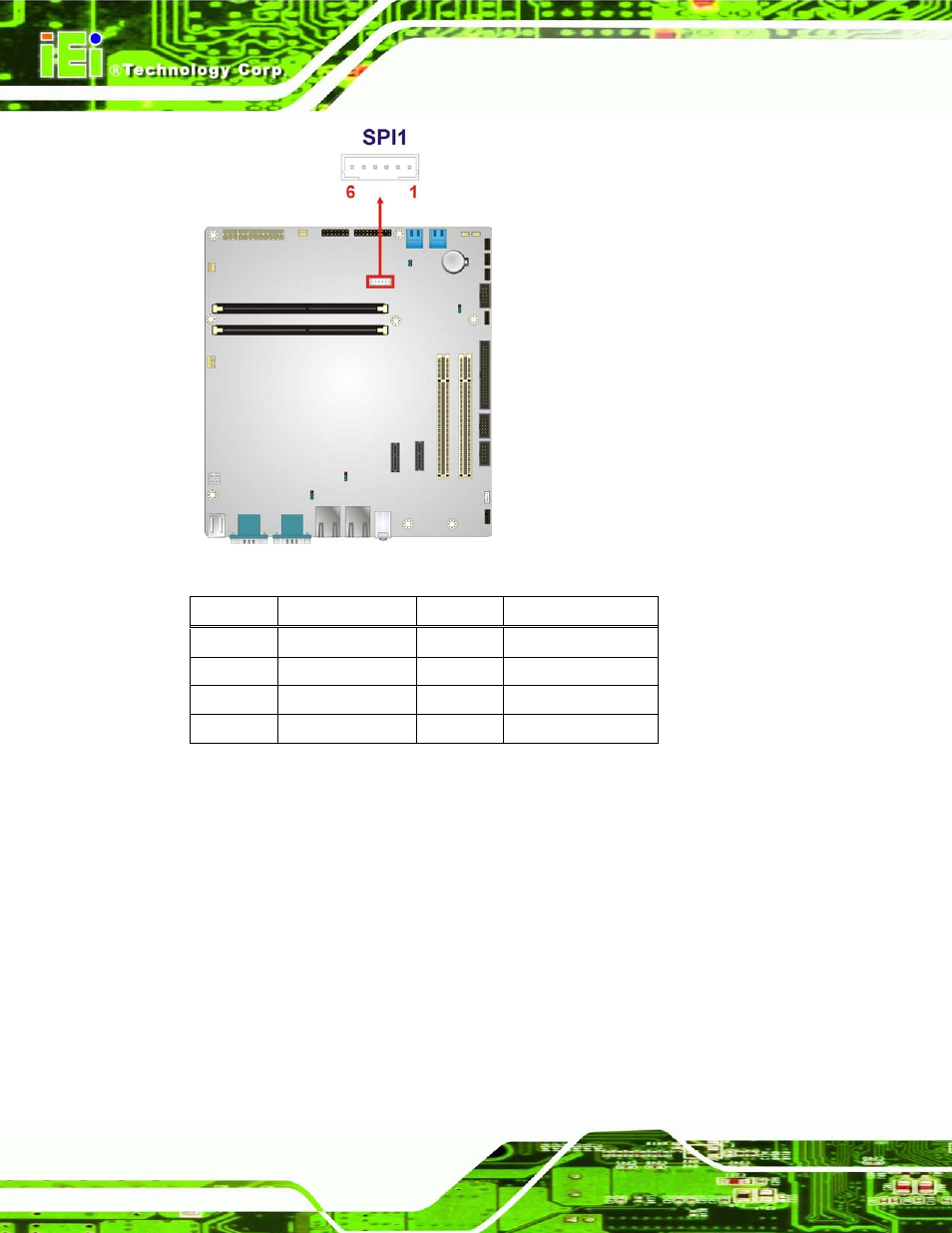

Figure 3-17: SPI Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 SPI_VCC 2 GND
3 SPI_CS0# 4 SPI_CLK
5 SPI_MISO 6 SPI_MOSI
7 NC 8 NC
Table 3-15: SPI Connector Pinouts
3.2.17 S ys te m Fa n Co n n e c to r
CN La b e l: S YS _FAN1, S YS _FAN2
CN Typ e : 3-pin wafer
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Table 3-16
The fan connector attaches to a cooling fan.
