IMB-H612 Mic ro -ATX Mo th e rb o a rd
P a g e 62

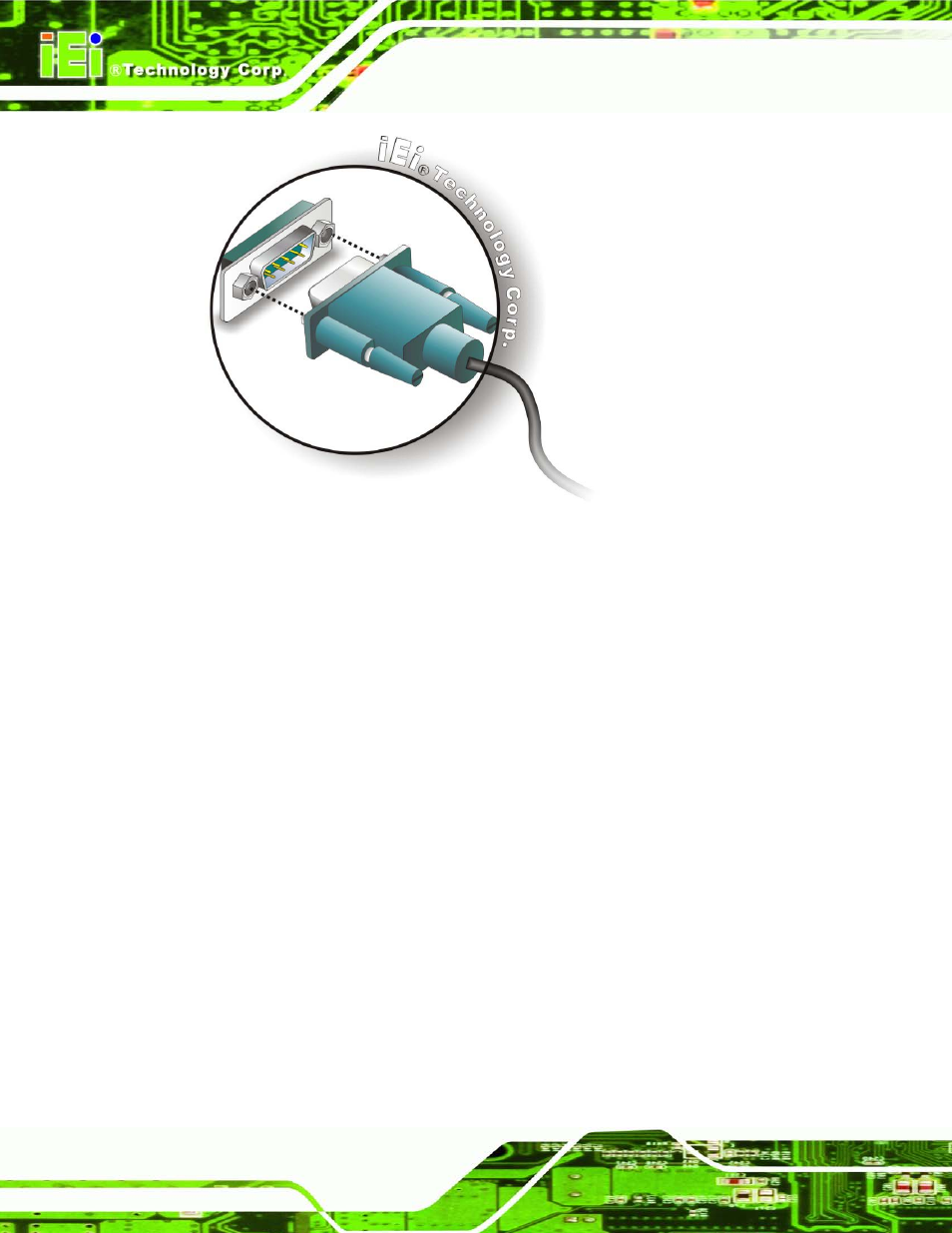

Figure 4-17: Serial Device Connector
S te p 3:
Secure the connector. Secure the serial device connector to the external
interface by tightening the two retention screws on either side of the connector.
4.6.5 US B Co n n e c tio n
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the IMB-H612.
S te p 1:
Locate the USB Series "A" receptacle connectors. The location of the USB
Series "A" receptacle connectors are shown in Chapter 3.
S te p 2:
Insert a USB Series "A" plug.
Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
