IMB-H612 Mic ro -ATX Mo th e rb o a rd
P a g e 58

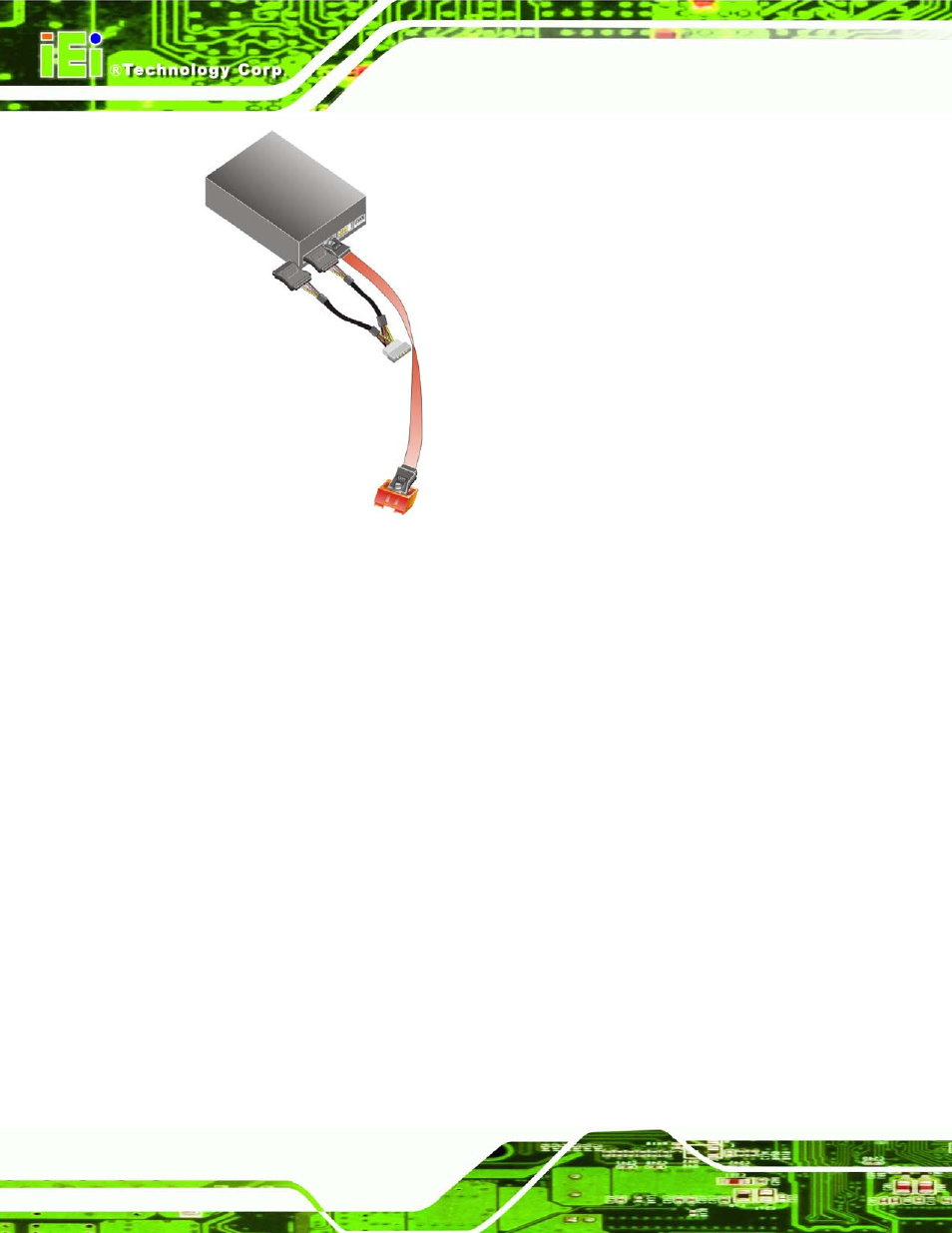

Figure 4-13: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.6 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
This section describes connecting devices to the external connectors on the IMB-H612.
4.6.1 Au d io Co n n e c tio n
The audio jacks on the external audio connector enable the IMB-H612 to be connected to
a stereo sound setup. Each jack supports both input and output. When connecting a
device, the High Definition Audio utility will automatically detect input or output. The light
blue (top) audio jack does not support input from a microphone. To install the audio
devices, follow the steps below.
S te p 1:
Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel.
S te p 2:
Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
