PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 DATA10_N 4 DATA11_P
5 DATA10_P 6 DATA11_N
7 GND 8 VCC
Table 3-20: USB Port Connector Pinouts (USB89)
3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
 3 x Audio jacks
 2 x Ethernet connectors
 1 x Keyboard connector
 1 x Mouse connector
 2 x RS-232 serial port connectors
 4 x USB 2.0 connectors
 2 x VGA connectors

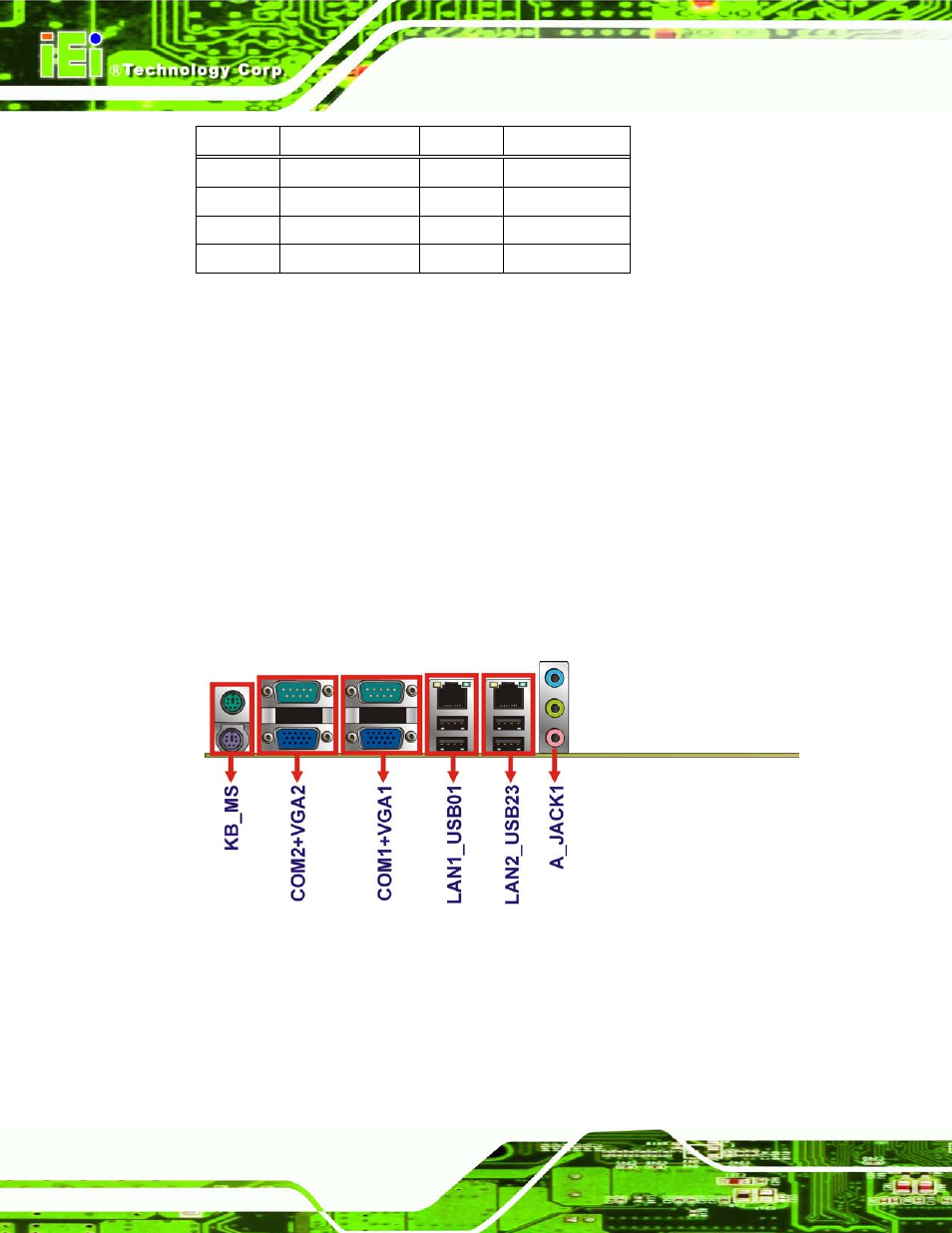

Figure 3-21: External Peripheral Interface Connector
3.3.1 Au d io Co n n e c to r
CN La b e l: A_J ACK1
CN Typ e : Audio jack
