IMB-H612 Mic ro -ATX Mo th e rb o a rd
P a g e 49
S te p 5:
Correctly position the CPU. Match the Pin 1 mark with the CPU edge on the
CPU socket.
S te p 6:
Align the CPU pins. Locate pin 1 and the two orientation notches on the CPU.
Carefully match the two orientation notches on the CPU with the socket
alignment keys.
S te p 7:

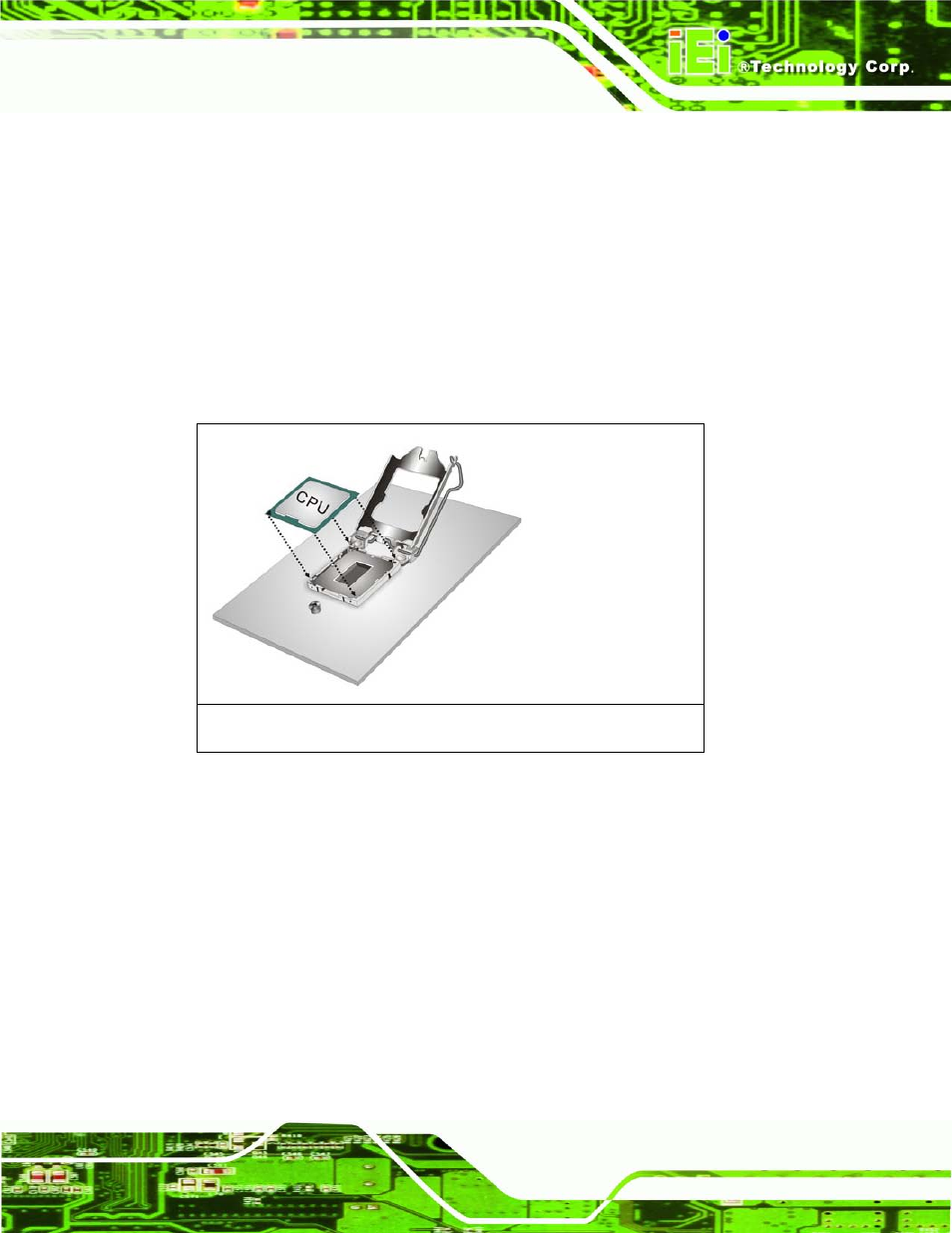

Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are
properly aligned, the CPU should slide into the CPU socket smoothly. See
Figure 4-3: Insert the Socket LGA1155 CPU
S te p 8:
Close the CPU socket. Close the load plate and pull the load back a little to
have the load plate be able to secure to the knob. Engage the load lever by
pushing it back to its original position. See Figure 4-4. There will be some
resistance, but will not require extreme pressure.
