IMB-H612 Mic ro -ATX Mo th e rb o a rd

P a g e 4

1.5 Co n n e c to rs

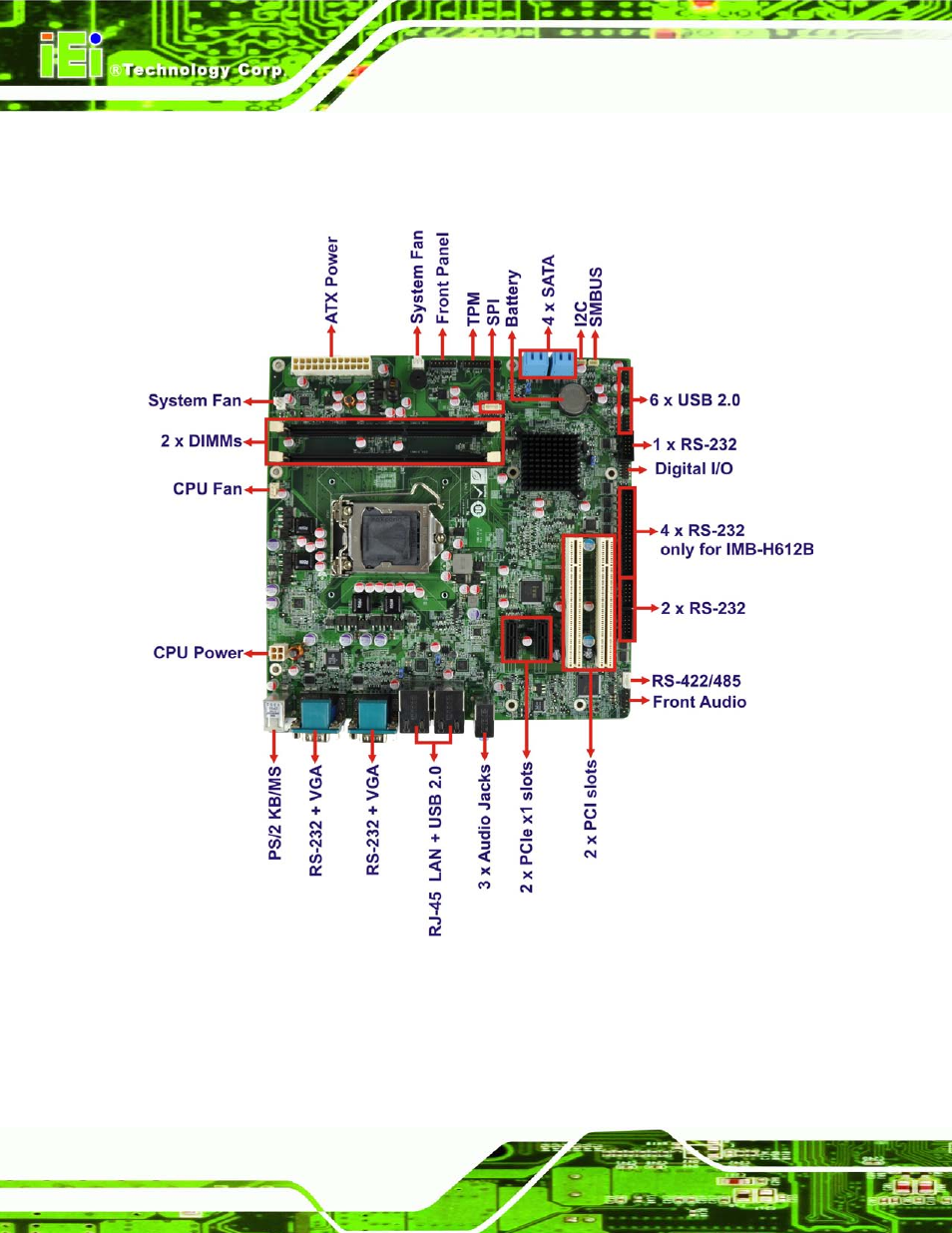

The connectors on the IMB-H612 are shown in the figure below.

Figure 1-2: Connectors
