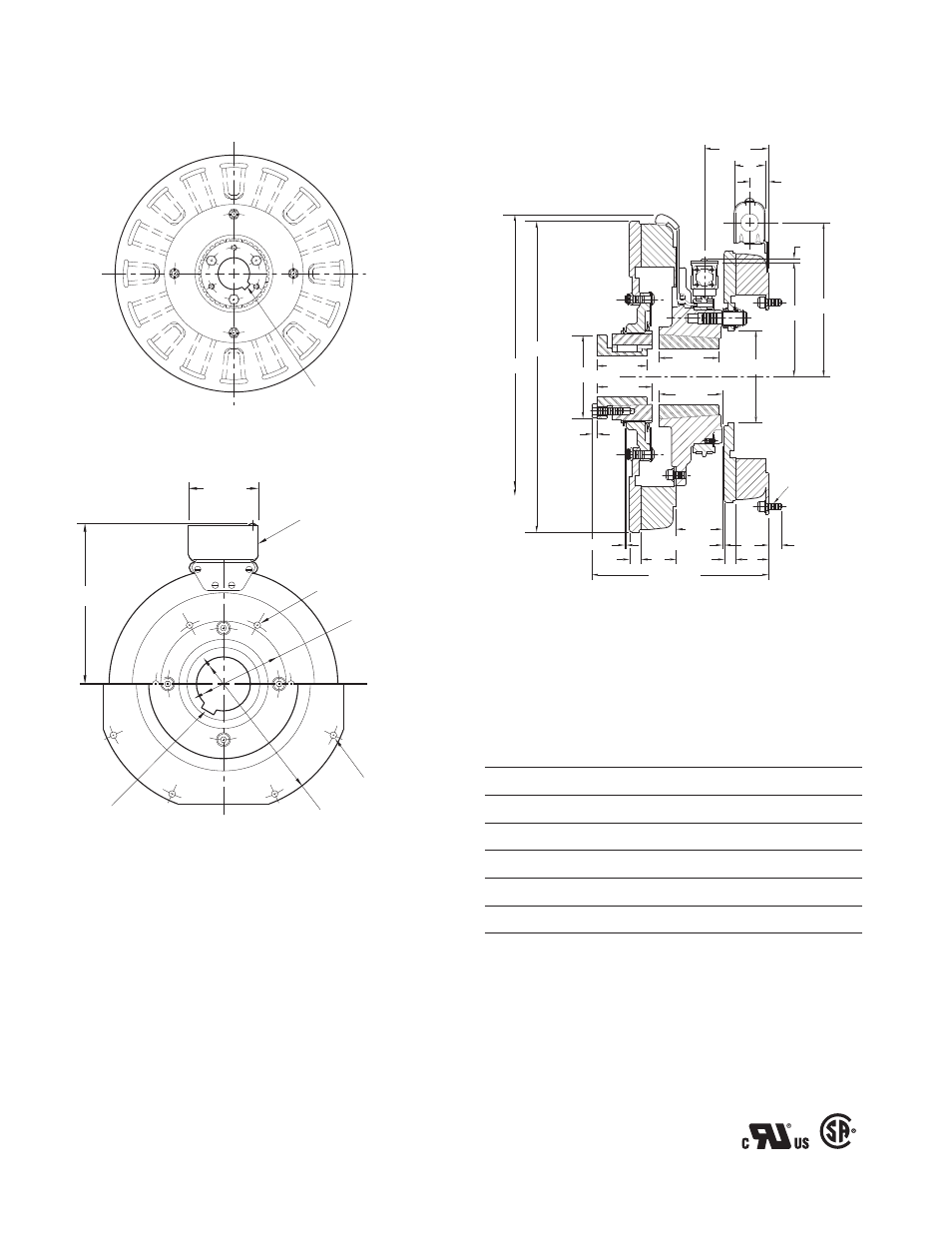

PCBC-1525/1225 Clutch/Brake Coupling
* Mounting holes are within .010 of true position
relative to pilot diameter.
.234
.562
4.625
7.531
5.750
1.546
16.250
15.578
4.093
.562
1.750
.593
1.640
.171
.921
5/16-18
UNC-3A
3.250
3.000
3.187
2.687
2.500
2.31
2
8.937 Max.
.062 .093 New
Customer Shall Maintain:
1. Armature mounting shaft concentric with mag-
net mounting shaft within .006 T.I.R.
2. Squareness of brake magnet mounting face
with magnet mounting shaft within .006 T.I.R.
3. Concentricity of brake magnet mounting pilot
diameter with magnet mounting shaft within
.010 T.I.R.
Armature View
See page 28 for
details on Bushings.
Magnet View
(Inside & Outside Mounted)
Removable plug in ends
for 1/2" conduit.
.358/.338 dia. (6)
holes equally spaced
on 7.250 dia.*
6.378/6.376
Pilot Dia.
13.875/13.871
Pilot Dia.
.358/.338 dia. (8) holes
equally spaced on 13.000
dia.*
8.687
See page 28 for details
on Bushings.
3.750
Armature Shaft .750 – 2.687
Magnet Shaft .937 – 3.000
Static Torque Clutch 700 lb.ft.
Static Torque Brake 465 lb.ft.
Maximum Speed 2,000 rpm
Standard Voltage D.C. 6, 24, 90
All dimensions are nominal unless otherwise noted.
