25 Warner Electric • 800-825-9050 P-214 • 819-0518

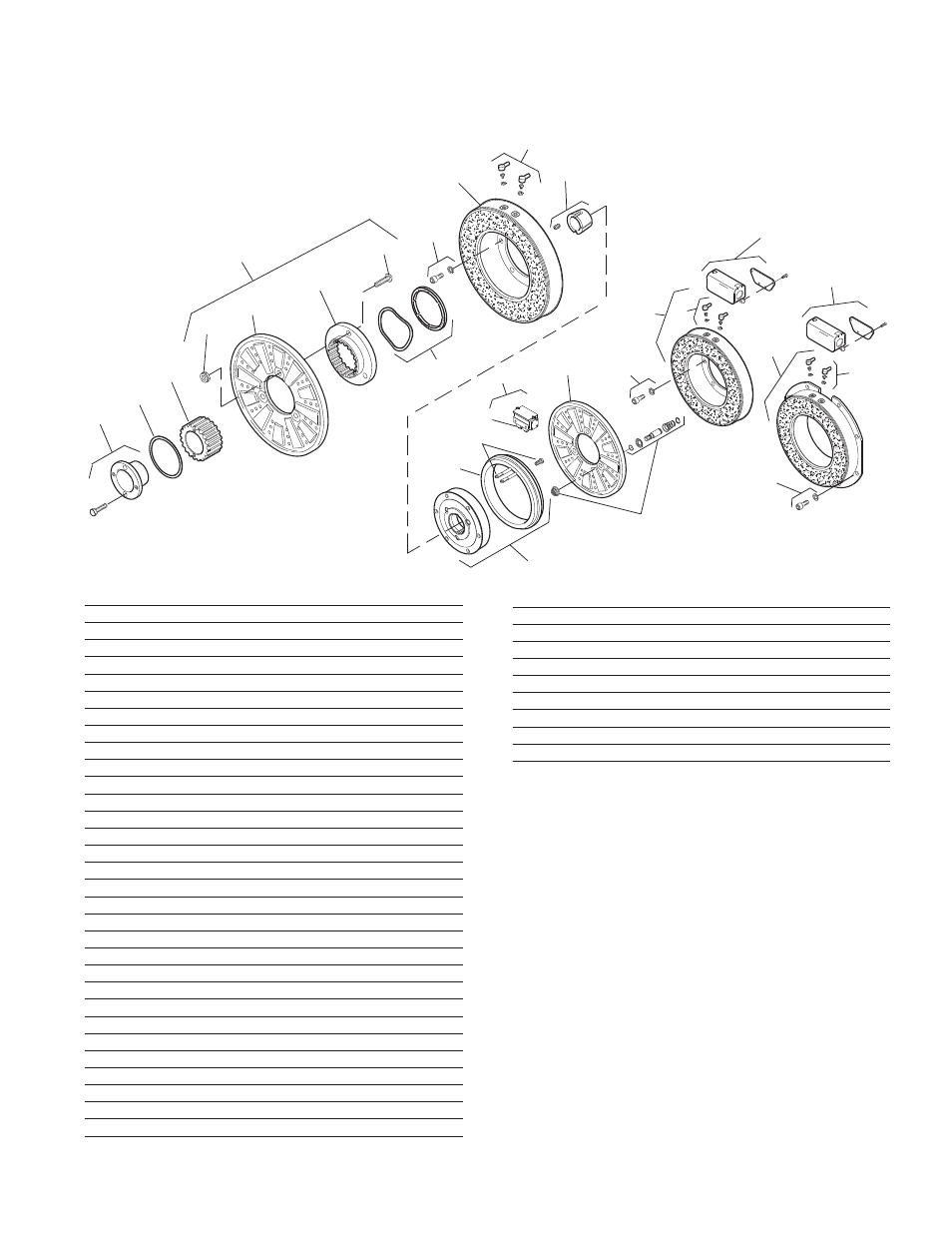

Drawing I-25613
How to Order:
1. Specify Bore Size for Item 1 and 9.
2. Specify Voltage for Item 6 and Item 13A or 13B.
3. Specify left hand or right hand hub for Item 7.
Bushing enters from magnet side for L.H. hub and
from hub side for R.H.
4. Specify Inside Mounted for Items 12A and 13A or
Outside Mounted for Items 12B and 13B.
Example:
PCBC-1225/1000 Clutch Brake Coupling per
I-25613 - 90 Volt, Inside Mounted, Left Hand hub, 1-
3/4" Bore, (Items 1 and 9).
These units meet standards set forth in UL508 and
are listed under guide card #NMTR2, file #59164.
1
2
3
4-1
4-2
4-3
4-6
4-4
4
(Shipped
Assembled)
5
6
6-1
9
8
8-1
7-1
7-2
7 (Shipped Assembled)
11
10 12A
13A
13A-1
14
14
13B
13B-1
12B
Item Description Part Number Qty.
1 Bushing* 1
3/4" to 2-11/16" Bore 180-0026 to 180-0057
2 Retainer Ring 748-0005 1
3 Splined Hub 540-0064 1
4 Armature & Splined Adapter 5323-111-001 1
4-1 Locknut 661-0005 4
4-2 Armature 5323-111-034 1
4-3 Splined Adapter 104-0010 1
4-4 Autogap Accessory 5323-101-002 1
4-6 Screw 797-0281 4
5 Mounting Accessory 5321-101-001 1
6 Magnet 1
6 Volt 5333-631-008
90 Volt 5333-631-009
†90 Volt LK Facing 5333-631-013
6-1 Terminal Accessory 5311-101-001 1
7 Magnet Hub 1
Left Hand (shown) 5302-541-004
Right Hand 5302-541-005
7-1 Collector Ring 5301-749-001 1
7-2 Collector Ring Accessory 5303-101-004 1
8 Brushholder 5300-178-001 1
8-1 Brush 176-0001 4
9 Bushing* 1
1/2" to 2-1/2" Bore 180-0185 to 180-0217
10 Armature 5302-111-013 1
11 Autogap Accessory 5201-101-008 3
12A Mounting Accessory - I.M. 5321-101-001 1
12B Mounting Accessory - O.M. 5321-101-002 2
13A Magnet - Inside Mounted 1
6 Volt 5312-631-004
Item Description Part Number Qty.
90 Volt 5312-631-006
13A-1 Terminal Accessory 5311-101-001 1
13B Magnet - Outside Mounted 1
6 Volt 5312-631-011
90 Volt 5312-631-012
13B-1 Terminal Accessory 5311-101-001 1
14 Conduit Box 5200-101-011 1
*See page 28 for specific part numbers. †Optional LK facing
PCBC-1225/1000 Clutch/Brake Coupling
