21 Warner Electric • 800-825-9050 P-214 • 819-0518

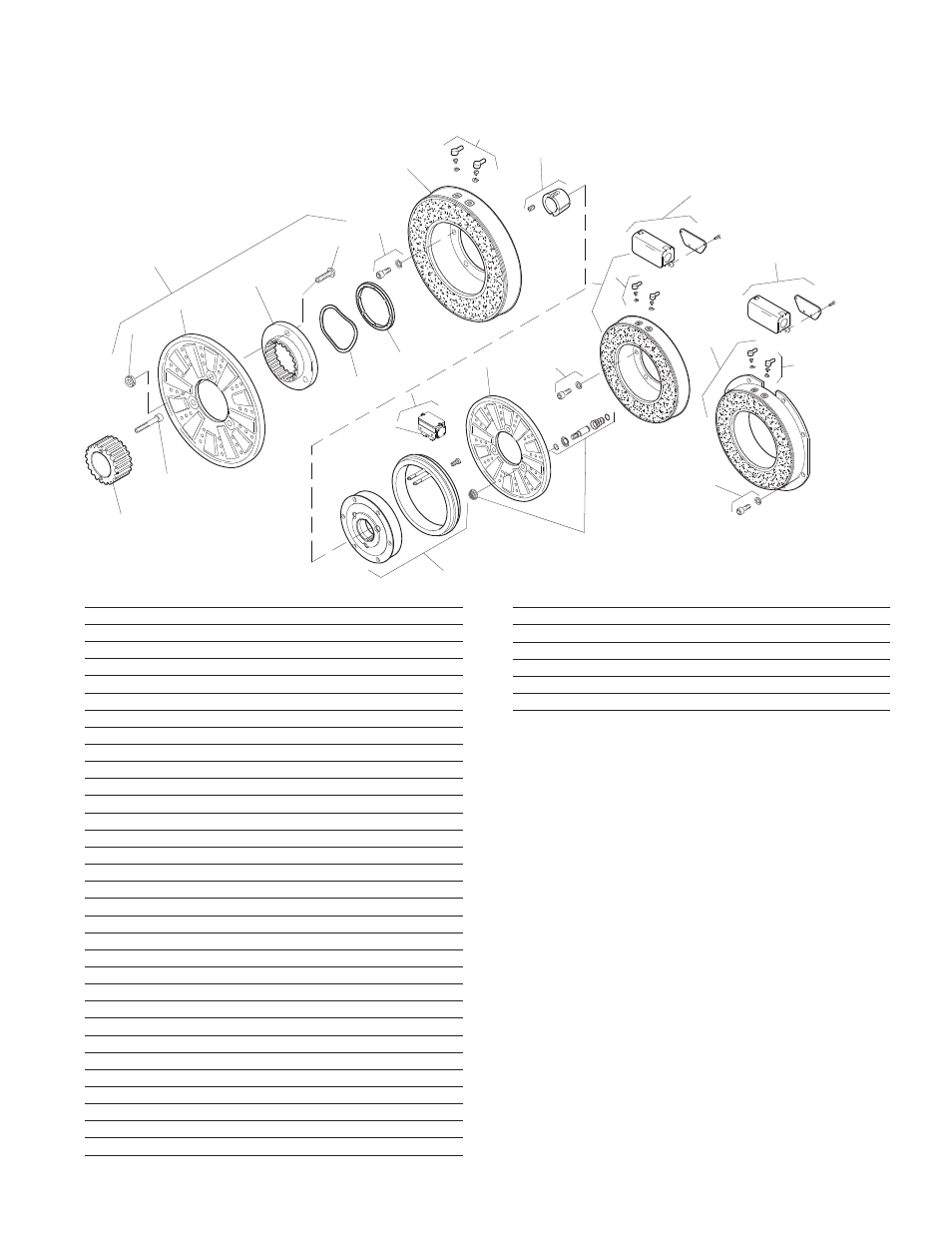

Drawing I-25611
How to Order:
1. Specify Voltage for Item 5 and Item 11A or 11B.
2. Specify left hand or right hand hub for Item 6.
Bushing enters from magnet side for L.H. hub and
from hub side for R.H.
3. Specify Bore Size for Item 7.
4. Specify Inside Mounted for Items 11A and 12A or
Outside Mounted for Items 11B and 12B.
Example:
PCB-1225/1000 Clutch Brake per
I-25611- 90 Volt, Left Hand hub,
1-1/2" Bore, Inside Mounted
These units meet the standards of UL508 and are
listed under guide card #NMTRs, file #59164. These
units are CSA certified under file #LR11543.
3
(Shipped
Assembled)
3-7
3-1
3-2
3-6
4
5
5-1
7
3-4
3-3
2
1
8
8-1
9
10
6 (Shipped Assembled)
12B
11B
11B-1
13
11A-1
11A
13
12A
Item Description Part Number Qty.
1 Splined Hub 540-0148 1
2 Mounting Accessory 5202-101-001 1
3 Armature Assembly 5323-111-001 1
3-1 Armature 5323-111-034 1
3-2 Splined Armature Adapter 104-0010 1
3-3 Autogap Spring 808-0044 1
3-4 Retainer Ring 748-0370 1
3-6 Buttonhead Screw 797-0281 4
3-7 Locknut 661-0005 4
4 Mounting Accessory 5321-101-001 1
5 Magnet Assembly 1
6 Volt 5333-631-008
90 Volt 5333-631-009
†90 Volt LK Facing 5333-631-013
5-1 Terminal Accessory 5311-101-001 1
6 Hub Assembly
Left Hand (shown)
5302-541-004 1
Right Hand 5302-541-005 1
7 Bushing* 180-0185 to 180-0217 1
8 Brushholder 5300-178-001 1
8-1 Brush 176-0001 4
9 Armature Assembly 5302-111-013 1
10 Autogap Accessory 5201-101-008 3
11A Magnet I.M. 1
6 Volt 5312-631-004
24 Volt 5312-631-005
90 Volt 5312-631-006
11A-1 Terminal Accessory 5311-101-001 1
11B Magnet - Outside Mounted 1
6 Volt 5312-631-011
24 Volt 5312-631-013
Item Description Part Number Qty.
90 Volt 5312-631-012
11B-1 Terminal Accessory 5311-101-001 1
12A Mounting Accessory I.M. 5321-101-001 1
12B Mounting Accessory O.M. 5321-101-002 2
13 Conduit Box 5200-101-011 1
*See page 28 for specific part numbers. †Optional LK facing
available.
PCB-1225/1000 Clutch/Brake – Heavy Duty
