BTTracer Protocol Analyzer User’s Manual
CATC
SW Version 2.20
•
Click Next to see the options for the three types of recordings that the
Recording Wizard can make.

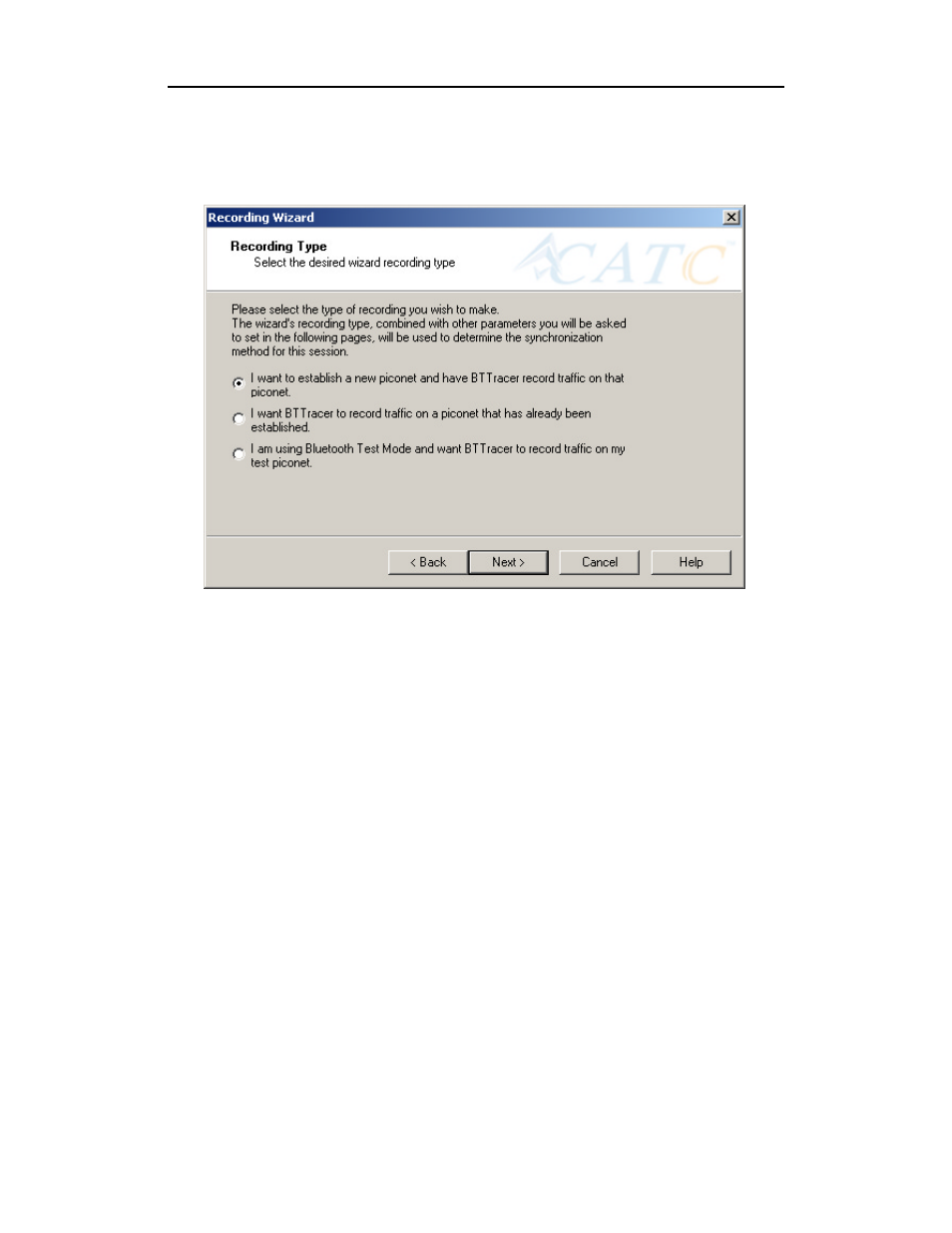

The Wizard advances to the next screen which presents three options:
•
I want to establish a new piconet and have BTTracer record traffic on that
piconet.
This option causes BTTracer to perform an Inquiry so it can discover
local devices and then establish a new piconet and record the piconet
traffic.
•
I want BTTracer to record traffic on a piconet that has already been
established.
This option lets BTTracer record traffic from an already established
piconet.
•
I am using Bluetooth Test Mode and want BTTracer to record traffic on
my test piconet.
This option lets BTTracer create either a single frequency range
recording of a range that you specify or create a recording of a limited
hop frequency range consisting of 5 frequency hops.
5.1 Recording a Traffic on a New Piconet
The New Piconet option shown in the previous screen presents users with
the means of recording the traffic from a new piconet. This option will
cause a sequence of screens to prompt you for information such as the
piconet Master address.
