94
BTTracer Protocol Analyzer User’s Manual CATC SW Version 2.20
• Name - Symbolic name of the IUT given by the user, for easy
identification.
• Host => Controller Com port - The port that is used for the
capturing of the down-link traffic.
• Controller => Host Com port - The port that is used for the
capturing of the up - link traffic.
• Rate - the bits per second rate the com ports are configured for.

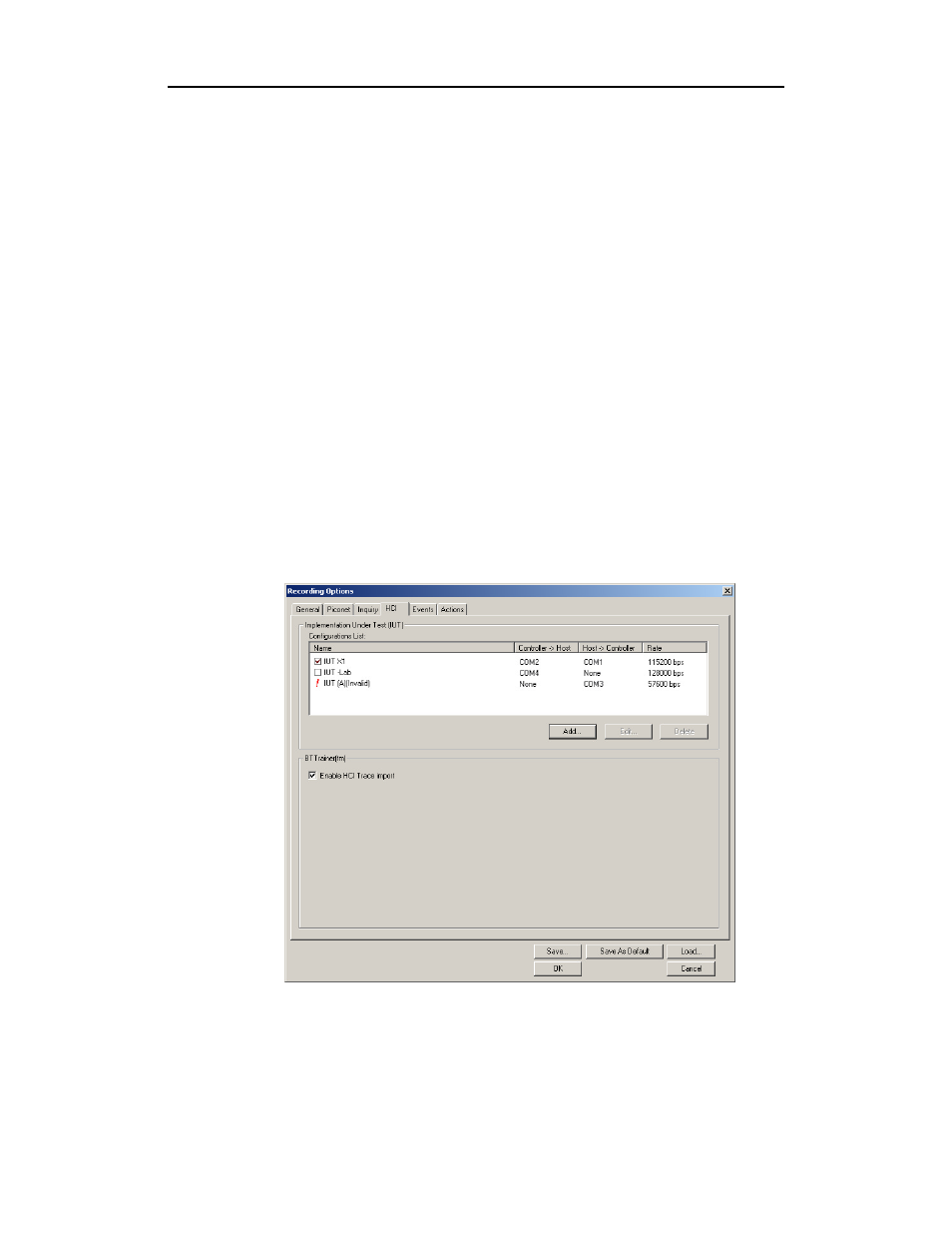

The list displays three possible states for each one of the entries:
• Enabled - The HCI traffic from the IUT is going to be recorded.
• Disabled - The HCI traffic from the IUT is not going to be
recorded.
Invalid - The analyzer failed in opening the COM port for accessing
the IUT, with the listed parameters. In this case, you should refer to
Windows configuration of the COM ports or check whether the
same COM port(s) is (are) used by other applications in the host
machine or that the parameters are set correctly.
Step 5
Click OK to close the Add HCI Trace Configuration dialog box.
The information you entered will appear in the HCI Page .
The following description explains the fields in the HCI Trace
Configuration dialog box:
Name - Symbolic name for easy identification of the device and connector.
