BTTracer Protocol Analyzer User’s Manual

CATC

SW Version 2.20

HCITrace RS-232 Cable [b] to ‘Connector A’ in the 2-port
RS232 to USB converter [d].

Step 4

Connect the connector marked with ‘COM B’ in the
HCITrace RS-232 Cable [b] to ‘Connector B’ in the 2-port
RS232 to USB converter [d].

Step 5

Connect the USB cable to the USB connector of the 2-port
RS232 to USB converter [e].

Monitoring RS232 level Signals

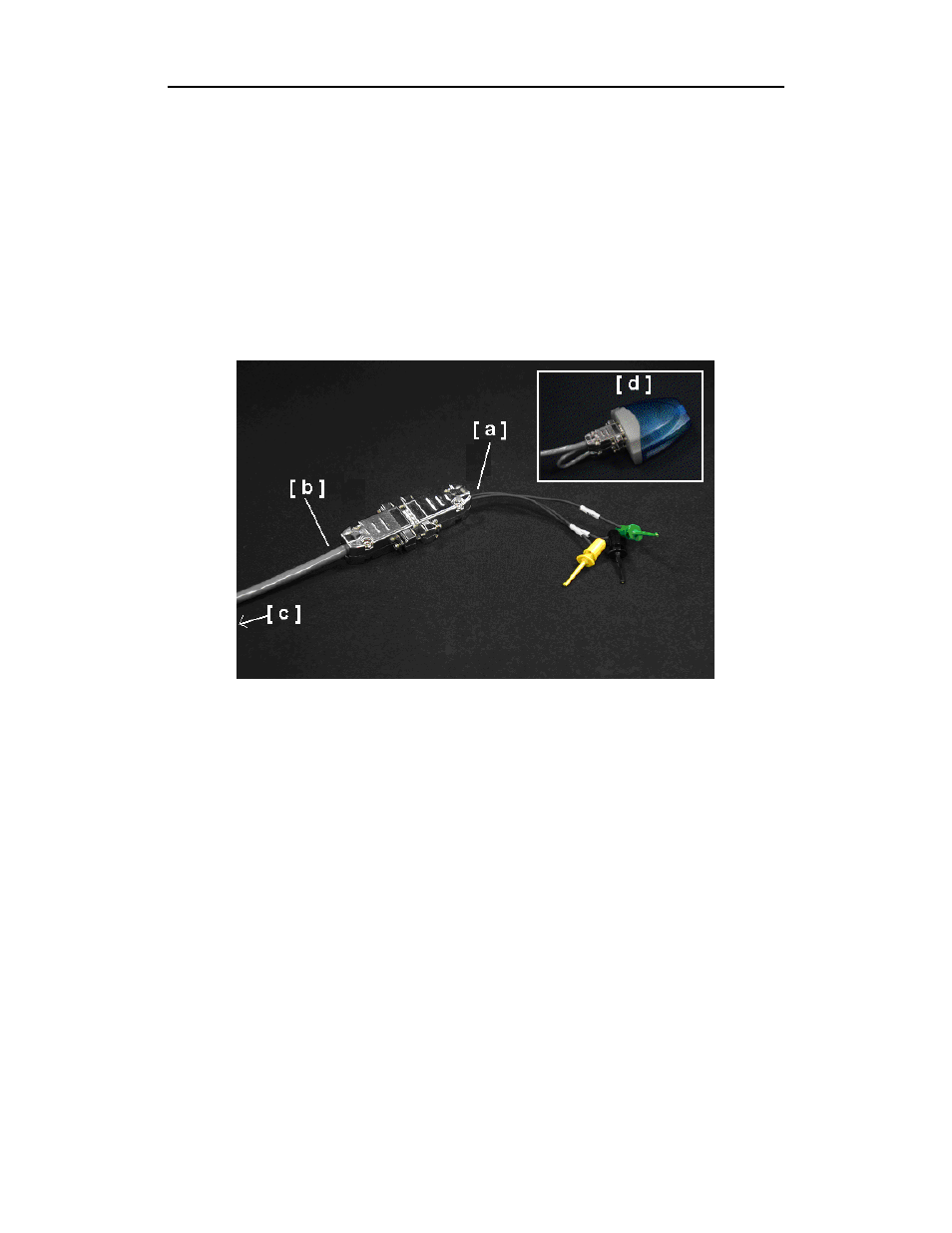

Legend for photo:

[a] HCI Probe Cable

[b] HCI Trace RS-232 Cable

[c] Connectors A and B on the other end of the HCI Trace RS-232

Cable

[d] Two-Port RS-232 to USB Converter

For monitoring RS232 level signals do not use the converter. To assemble
the HCI probe for this configuration, perform the following steps:

Step 1

Connect the DB-9 connector of the HCITrace Probe Cable
[a] to the connector marked with ‘'RS-232/Probe’’ in the
HCITrace RS-232 Cable [b].

Step 2

Connect the connector marked with ‘COM A’ in the
HCITrace RS-232 Cable [c] to ‘Connector A’ in the 2-port
