BTTracer Protocol Analyzer User’s Manual CATC SW Version 2.20
Step 4
Click the Setup ... button.

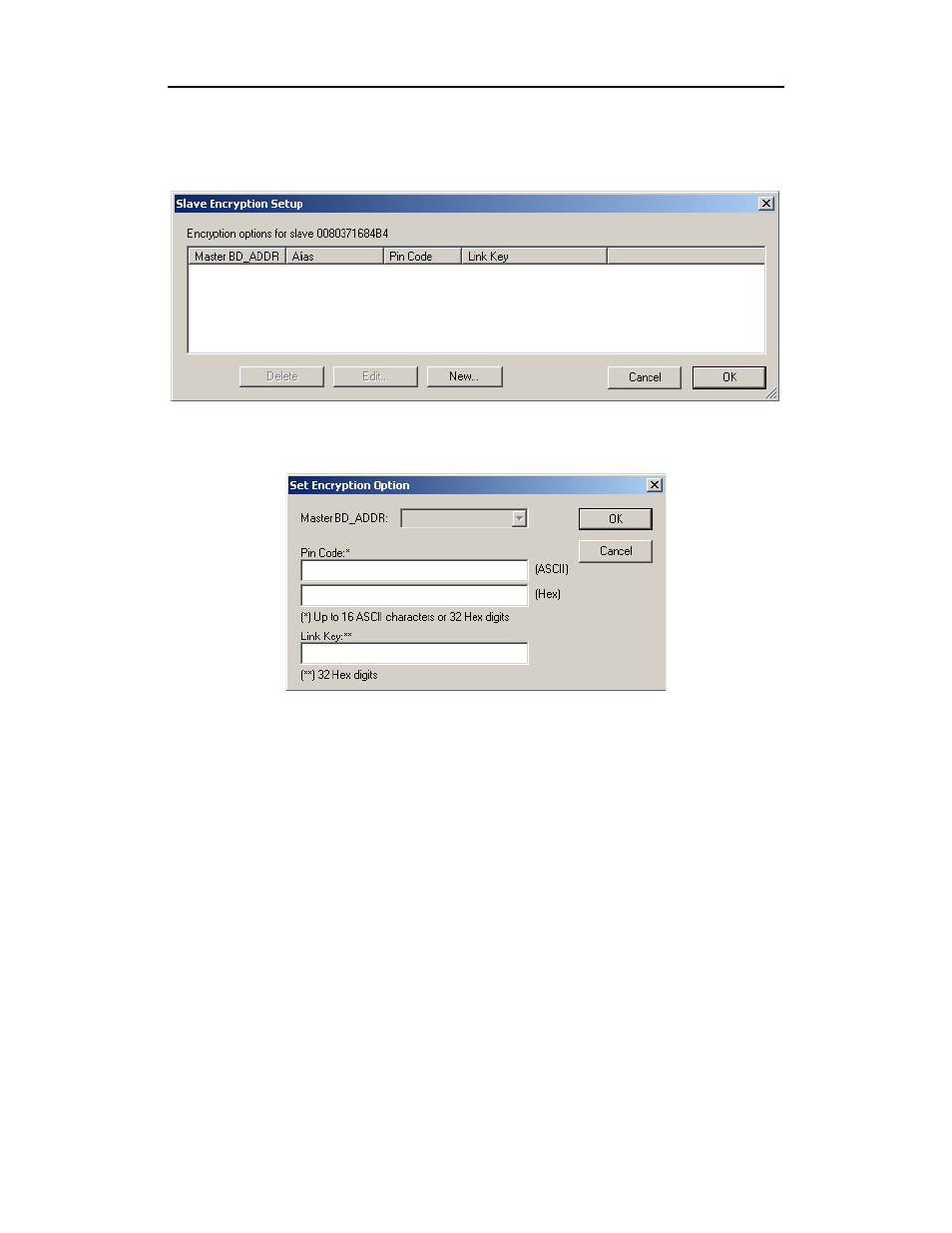

The following dialog box opens:
Step 5
Click the button marked New.
The following dialog box appears.
Step 6
Enter the appropriate Personal Identification Number (PIN)
for the selected device to the box marked PIN Code. This
PIN allows BTTracer to learn the Link Key. If you do not
have the PIN, skip to Step 5.
Note The PIN you provide should be the same used by the Slave. For example, if your
Slave device requires a PIN of "1234", then enter the same PIN in the dialog box
shown above.
Step 7 If you do not have the PIN, or if the Master and Slave have already
agreed upon the Link Key, manually enter a Link Key as a 128 bit
(sixteen byte) hex value into the box marked Current Link Key. If
you have the PIN, you can skip this step.
Step 1
If the Master and Slave were previously connected, they may
already agree on the Link Key. In this case, you will need to
provide BTTracer with the Link Key and not simply the PIN.
