Page 134

124
BTTracer Protocol Analyzer User’s Manual
CATC
SW Version 2.20

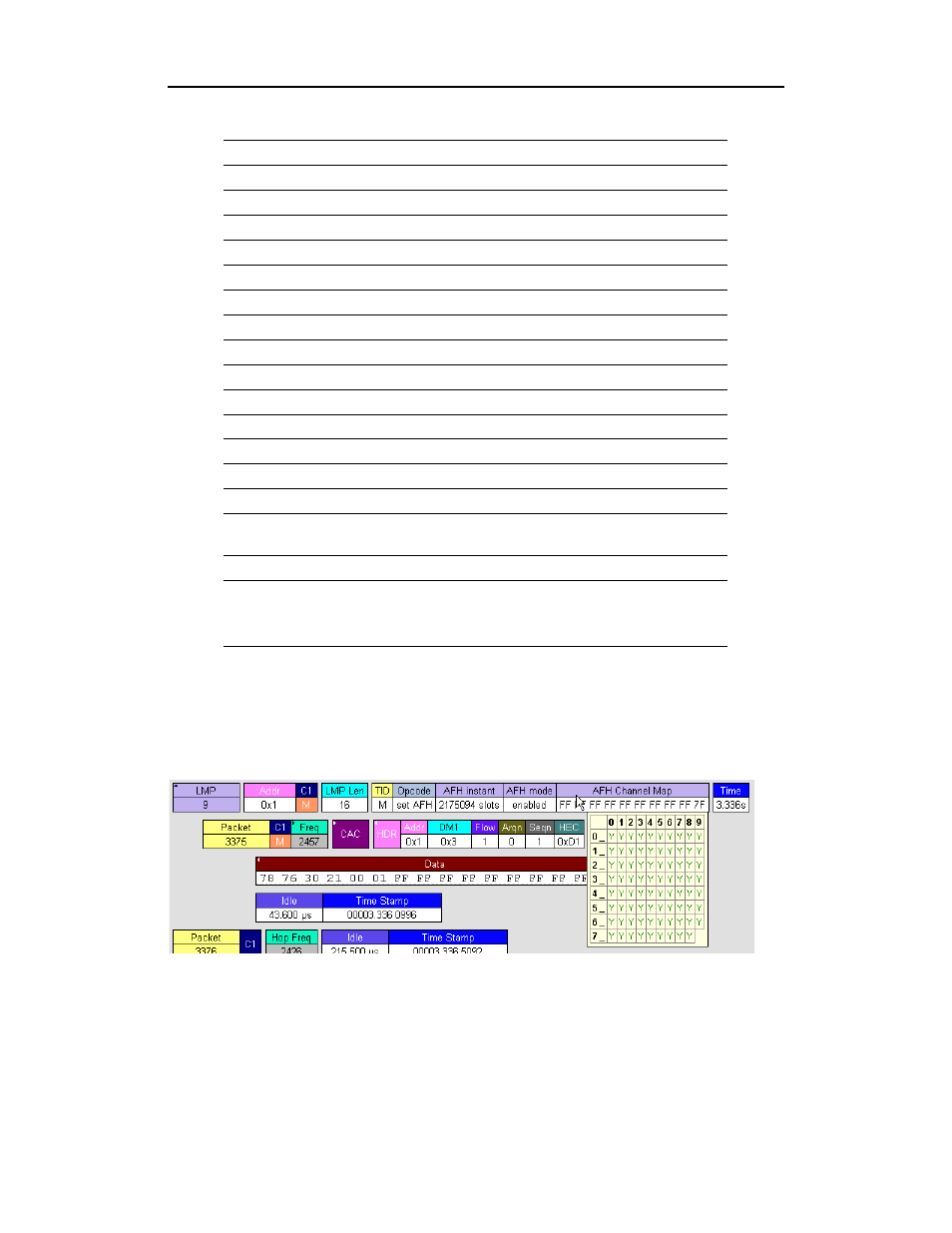

8.3 Tooltips
You can get additional information about each field in a trace by holding
your mouse pointer over a field. A tooltip will appear with details about the
field.
8.4 Set Marker
Note
Set Marker works in conjunction with the Go to Marker feature.
CAC
Channel Access Code
Trail
Access Code Trailer of the Sync word
Addr
Active Member Address
DM1
DM1 Packet Type
Flow
ACL Link Flow Control
Arqn
Acknowledgment Indication Flag
Seqn
Sequential Numbering
HEC
Header Error Correction Code
L_CH
LMP Message
L2FL
L2CAP Flow Control Flag
Len
Message Length in Bytes including Opcode
TID
LMP Transition initiated by Master
Opcode
LMP-host_connection_req
CRC
Cyclic Redundancy Check
Ack’d
Packet Acknowledgment based on subsequent packet’s ARQN with
same LT_ADDR
Idle
Idle Time in nanoseconds
Time Stamp
Decimal in Seconds.Milliseconds.Microseconds*10
This is the analyzer internal clock as a reference with resolution of
100 ns.
Packet:#
Packet/Event Number
