Reference – Teledyne LeCroy WaveAce 1000_2000 User Manual
Page 96
WaveAce 1000/2000
90
922131-00 Rev A
Reference
Using WaveStudio to Remotely Connect to the
WaveAce
The following steps demonstrate how to use WaveStudio to remotely connect
to your WaveAce oscilloscope.
1. Make the hardware connection to your oscilloscope.
Connect a network cable to the RJ-45 connector on the back of your
oscilloscope as shown in Back and Side Connections (on page 8).
Note: Contact a system administrator when connecting to any internal
LAN.
2. Configure the remote control settings on the oscilloscope to enable
remote control.

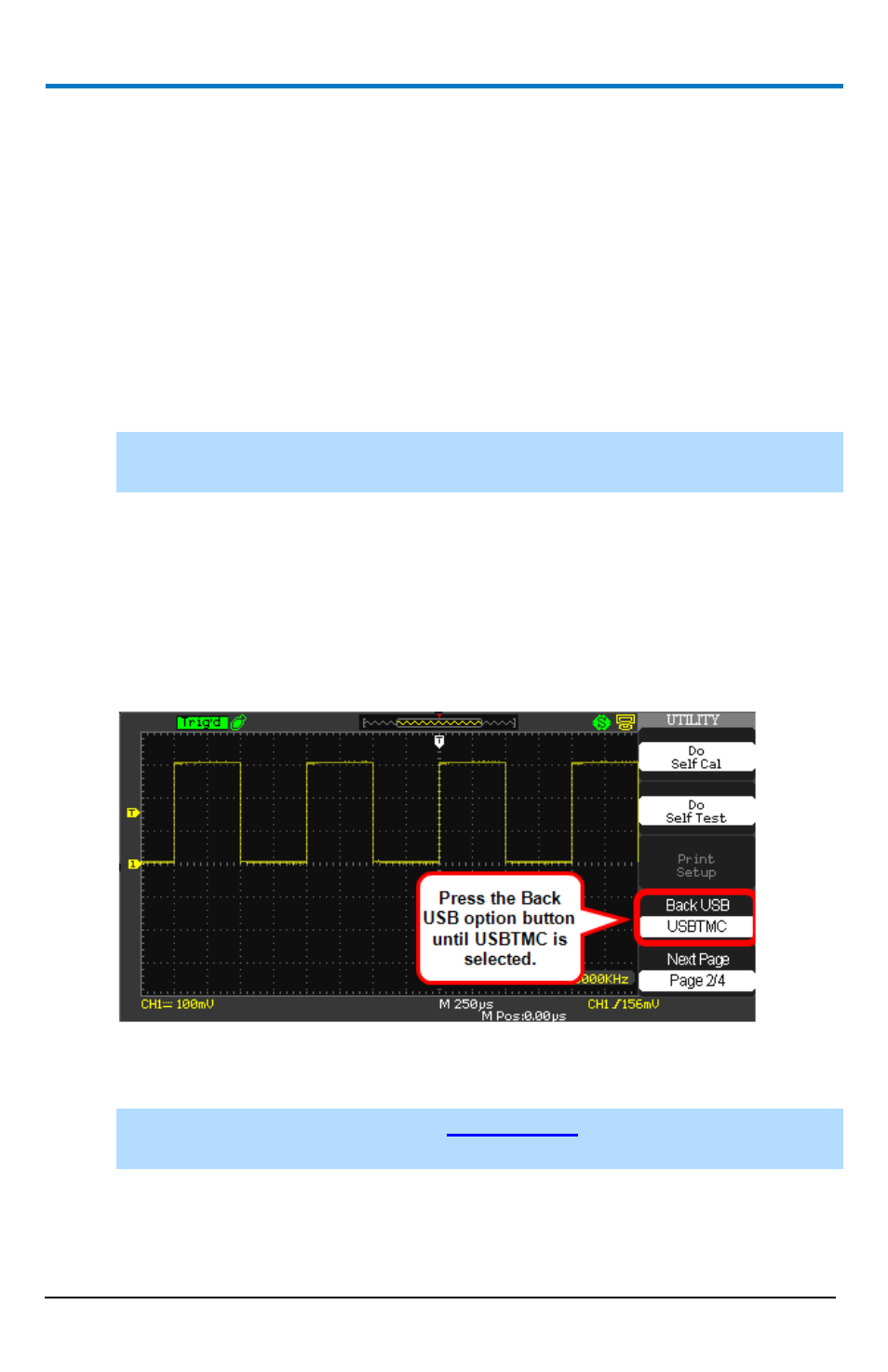

Press the UTILITY Front Panel (on page 7) button to display the Utility
menu, and then press the Next Page option button to display page 2/4.
Now, press the Back USB option button until USBTMC is selected and
your oscilloscope is WaveStudio remote connection ready.
3. Download and install the National Instruments Measurement &
Automation Explorer on your PC.
Note: Download the program a
When the installation is
complete, launch the program and keep it open on your PC.
