Using Pass/Fail
The Pass/Fail function monitors signal changes determining whether or not it
falls within a predefined mask.
Access Pass/Fail by pressing the corresponding option button on the Utility
menu. The first of two Pass/Fail menus is then shown.

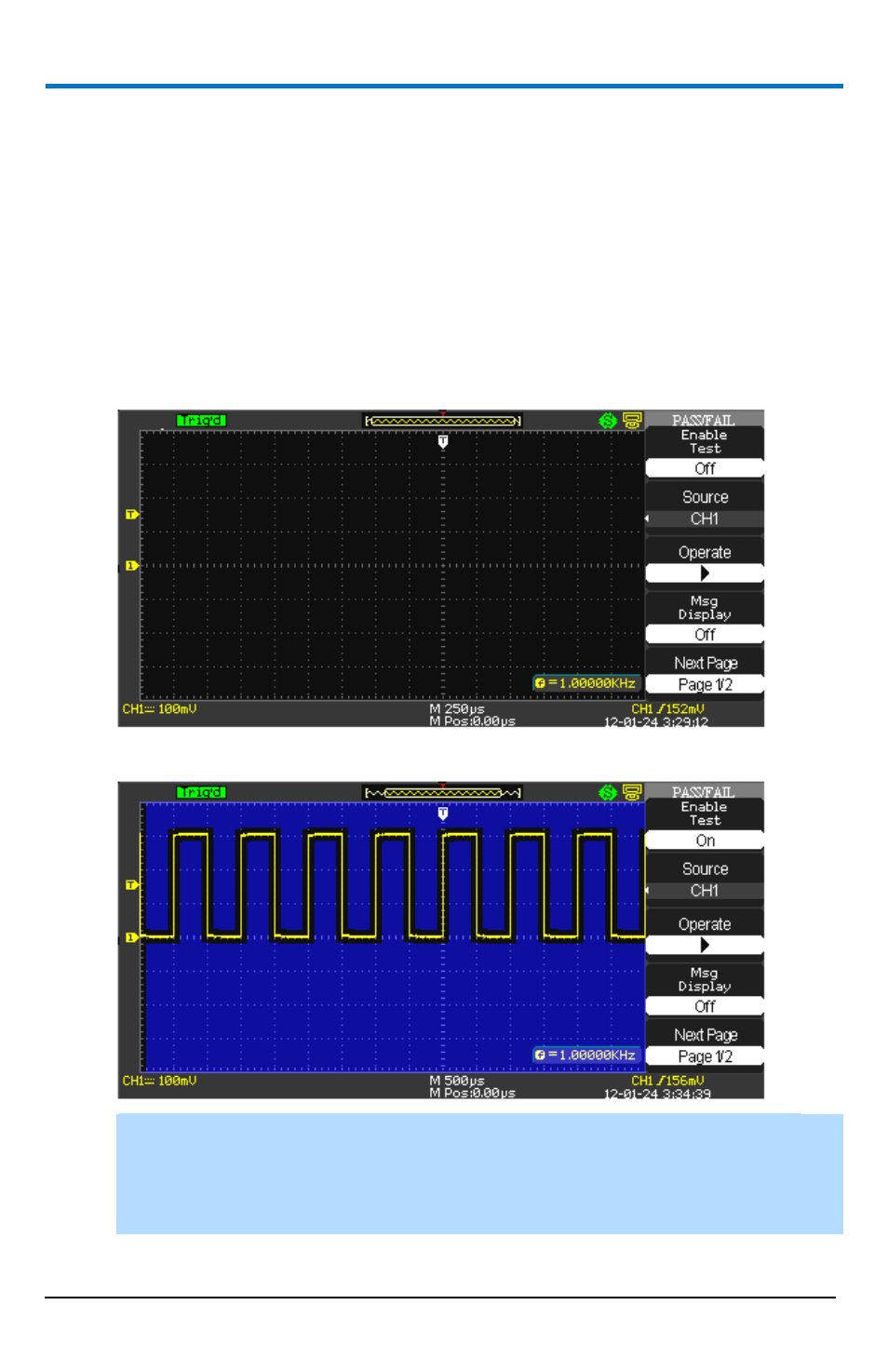

Pass/Fail - Page 1/2
After pressing the Pass/Fail option button, the first of two Pass/Fail menus
(Page 1/2) is shown and contains the following option button controls.
1. Press the Enable Test option button to turn the function On or Off.
NOTE: Turning Enable Test On/Off allows you to control whether or
not the mask is shown on the display grid area while making your
settings. The Operate button runs the test and allows you to see the
results update in real time.
