Operator’s Manual
922131-00 Rev A 19
Display Menu Pages 1/3, 2/3, and 3/3 and their options are described as
follows:
1. Type - Vectors fill the space between adjacent sample points in the
display. Dots displays sample points directly.
2. Persist - Sets the length of time (1 sec, 2 sec, 5 sec, Infinite) each
displayed sample point remains displayed.
3. Intensity - Turn the Universal front panel knob to set the Intensity.
4. Brightness - Turn the Universal front panel knob to set the screen
brightness.
5. Format - Choose between YT format and XY format.
6. Screen - Set to Normal mode or Inverted color display mode.
7. Grid - Display grids and axes, turn off grids, or turn off grids and axes.
8. Menu Display - Set the length of time the menus are shown on screen
(2 seconds, 5 seconds, 10 seconds, 20 seconds, or Infinite).
9. Skin - You can change the color of the software interface by selecting
Classical (default), Modern, Traditional, and Succinct skin options.

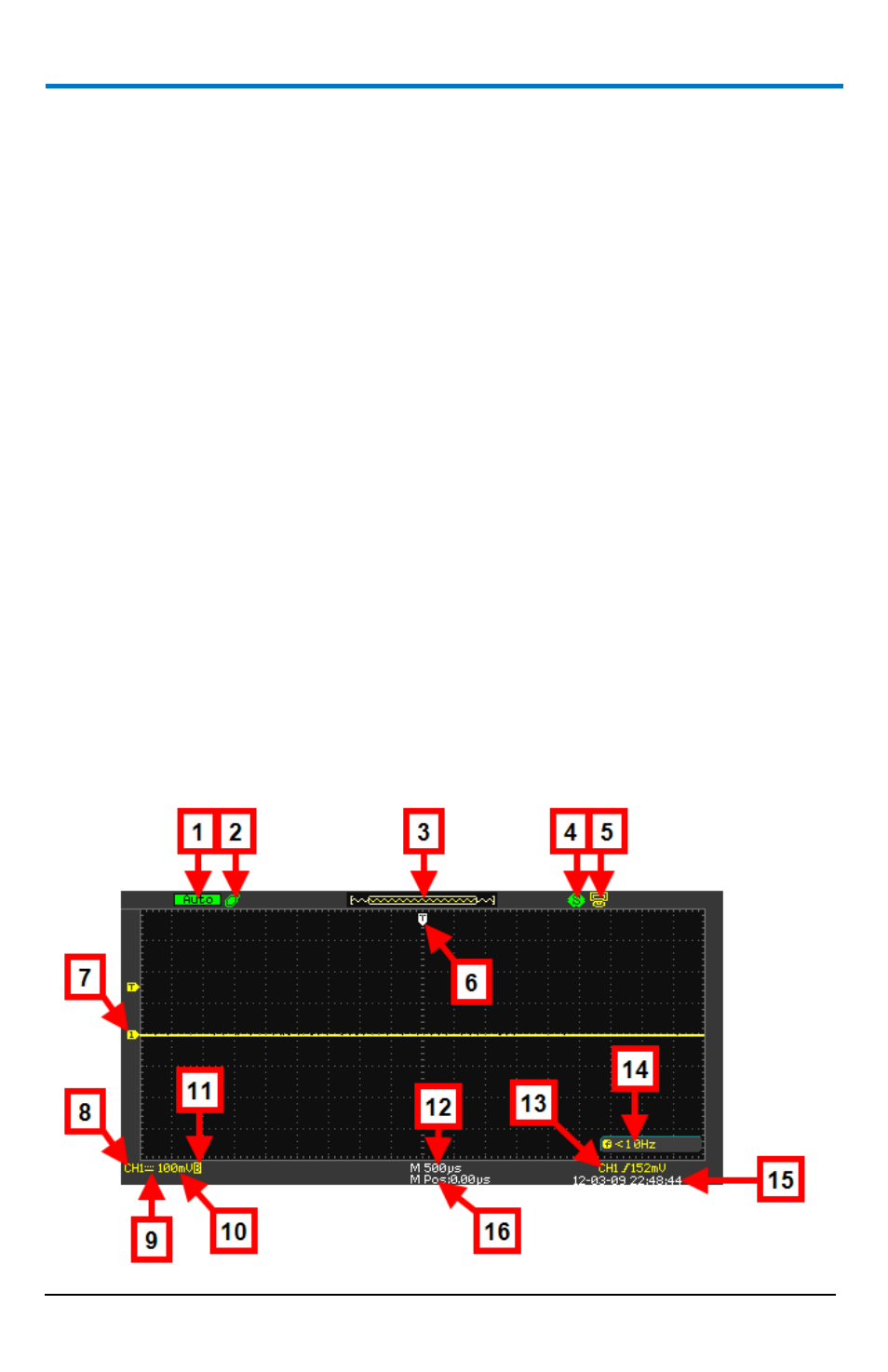

Understanding Display Information
The grid area contains several indicators to help you understand the display.
Indicators are coded to the channel colors).
