Analyzing Waveforms
Four main front panel buttons are used for waveform analysis.

Two Menu Function front panel buttons - Cursors, Measure

The other two are Vertical front panel buttons - Math, REF
The following topics explain their detailed use.

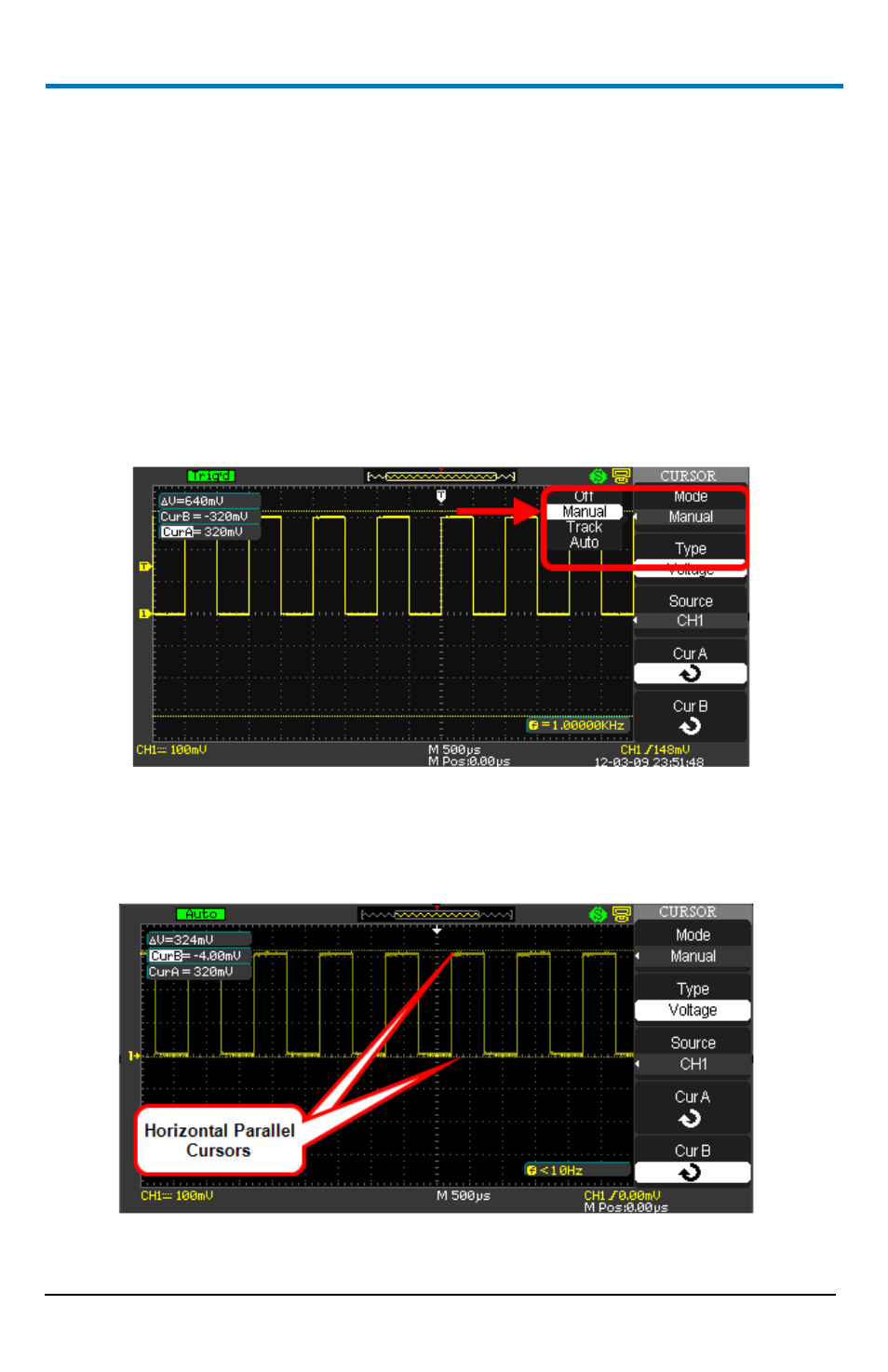

Measuring with Cursors
Cursors are important tools that aid you in measuring signal values. Cursors
are boundary markers you can move across the grid. Use cursors to make fast,
accurate measurements and eliminate guesswork.
There are three cursor measurement modes:
1. Manual - displays two horizontal parallel cursors or vertical parallel
cursors to measure voltage or time, respectively.
