Saving and Recalling Waveforms
You can quickly save waveforms in internal memory (up to 20 waveforms) or
on a USB memory device (limited only by your USB memory device capacity).
You can display up to three waveforms at the same time. You can easily recall
these saved waveforms later.
Saving Waveforms

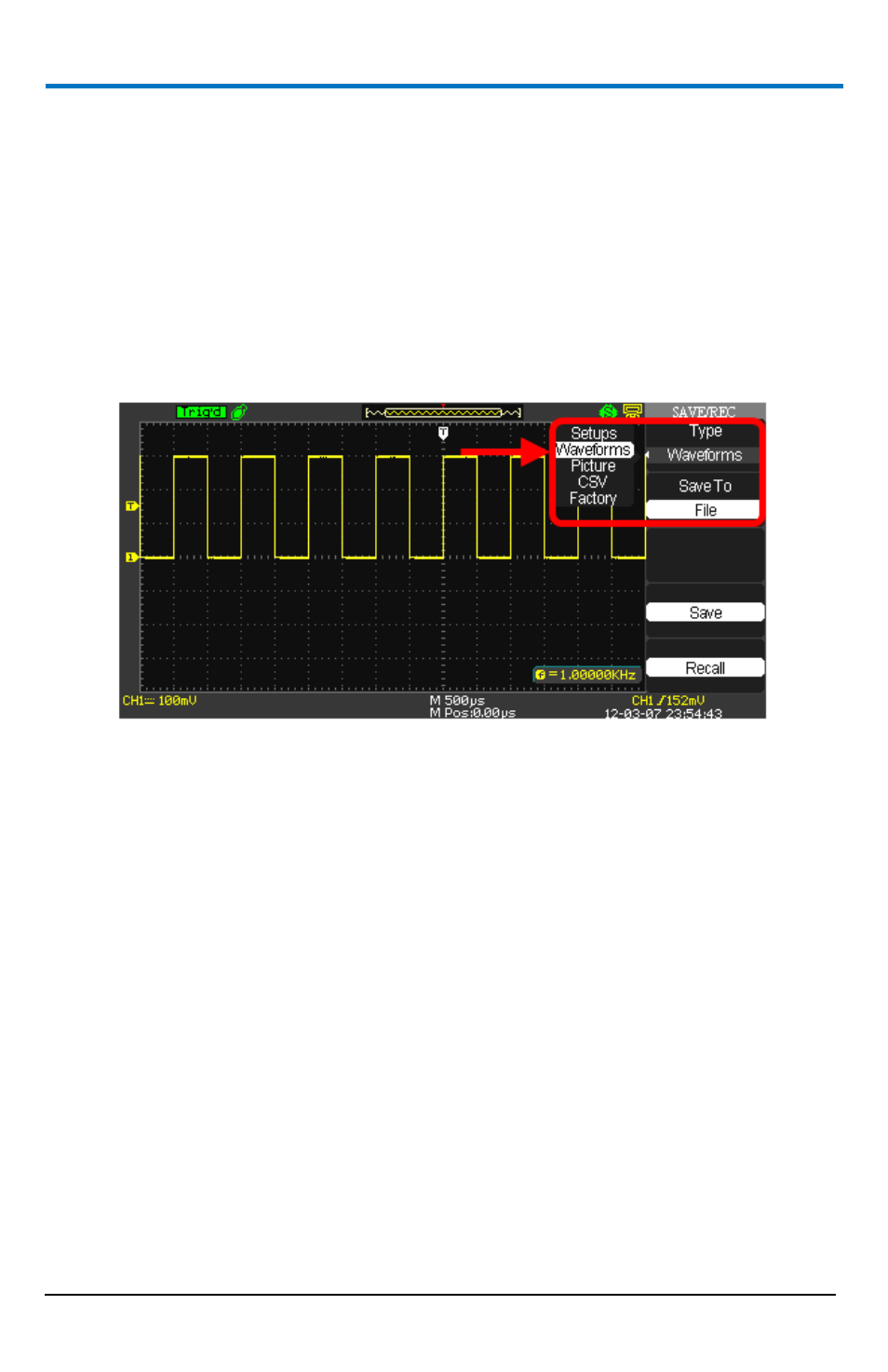

1. Display the waveform(s) you want to save and press the Save/Recall
front panel button. The SAVE/REC menu is shown.
2. Press the Type option button and select Waveforms.
3. Save the waveform either to Device (meaning internal memory on your
WaveAce) or File (for storage on a USB memory device) using the
following methods.
Saving Waveforms to Internal Memory

Press the Save To option button to select Device.

Press the Waveform option button or turn the Adjust knob to
assign a number (No. 1 - No. 20) to the waveform.

Press the Save option button to save the waveform.

The waveform is saved to memory and the oscilloscope briefly
shows a Store Data Success! message on the lower part of the
grid display area.
