WaveAce 1000/2000
58 922131-00 Rev A
Saving Waveforms to a USB Memory Device


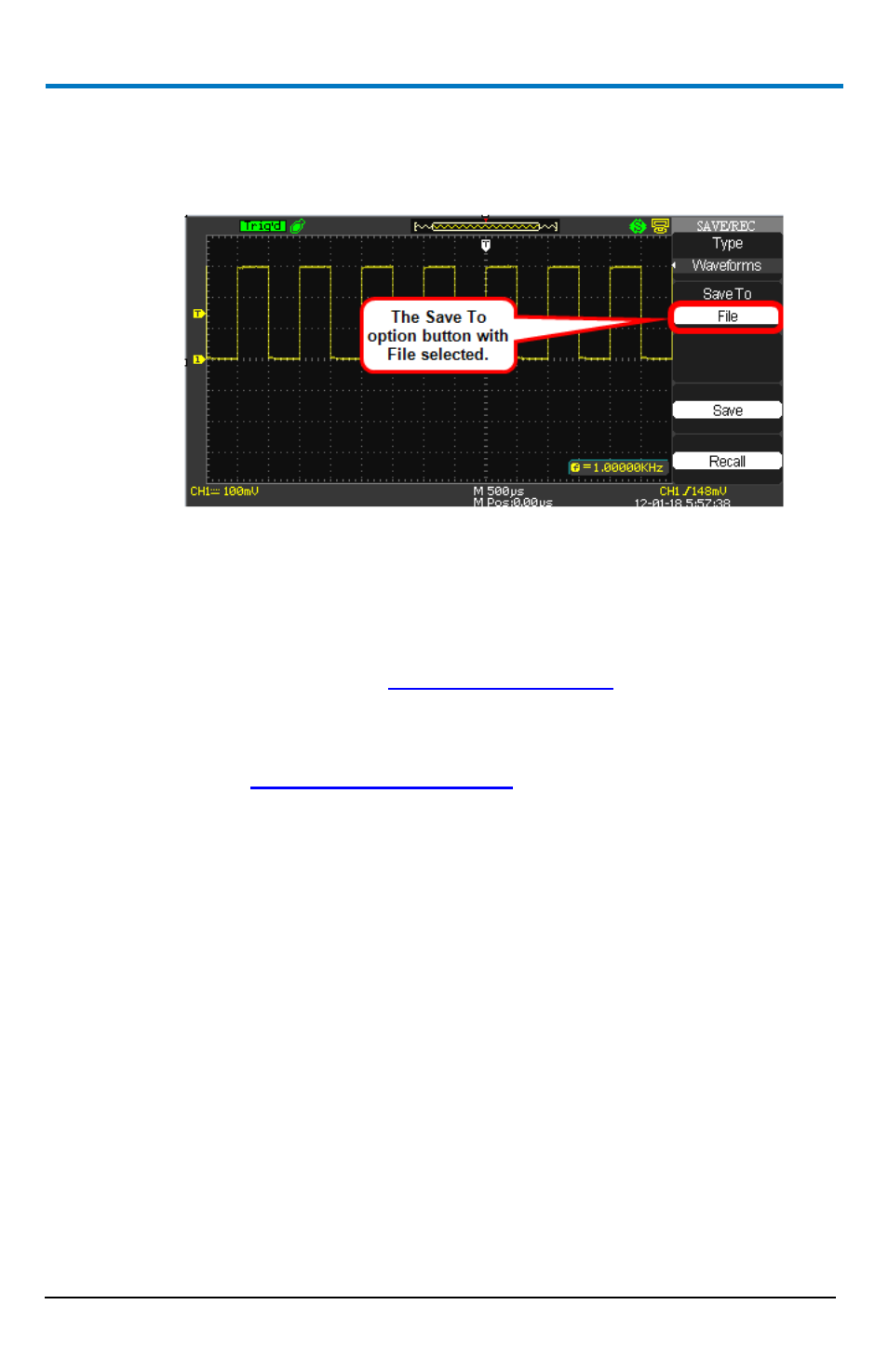

Insert the USB memory device, press the Save To option button,
and select File.

Press the Save option button to save the waveform.

Now, the SAVE ALL screen opens showing Directorys by default.
Finish saving to your USB memory device using the following
instructions in Using the SAVE ALL Screen (on page 66).
1. Switch to the SAVE ALL - Files Menu - covered in the Using
the SAVE ALL Screen (on page 66) topic.
2. Name and Confirm your file using the steps explained in
Creating Folders and Files - also covered in the Using the
SAVE ALL Screen (on page 66) topic.
Recalling Waveforms
1. If you're not already on the SAVE/REC menu, press the Save/Recall
front panel button and the SAVE/REC menu is shown.
2. Press the Type option button and select Waveforms.
3. Recall the waveform either from your Device (meaning internal
memory on your WaveAce) or from a File (stored on a USB memory
device) using the following methods.
Recalling Waveforms from Internal Memory

Press the Save To option button to select Device.

Press the Waveform option button or turn the Universal front
panel knob to select the number (No. 1 - No. 20) assigned to the
waveform you want to recall.
