WaveAce 1000/2000
16 922131-00 Rev A

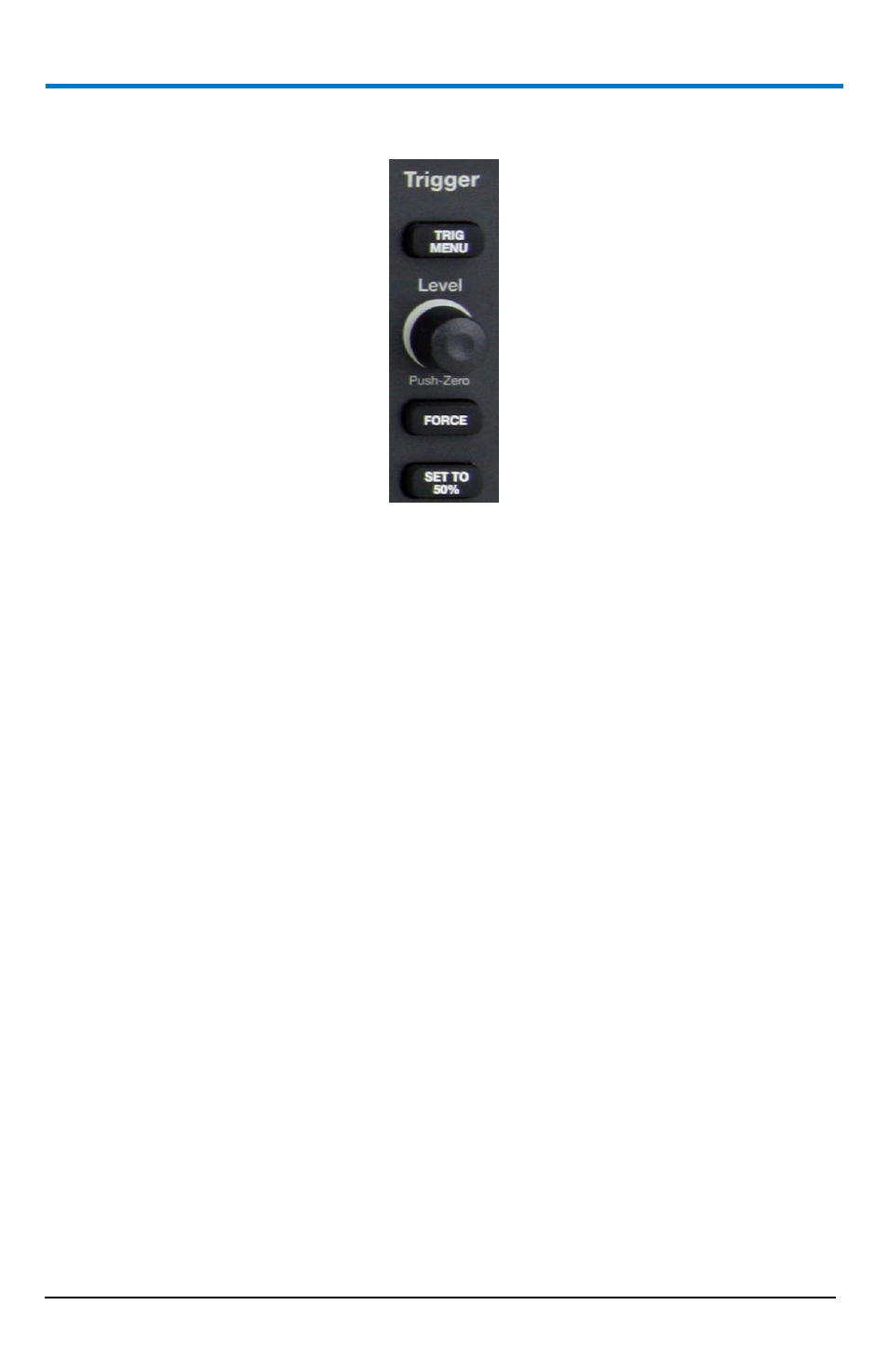

Trigger Controls

TRIG MENU - Press to display the Trigger menu. You can use the Trigger
menu to set the trigger type (Edge, Pulse, Video, Slope, Alternative)
and trigger settings.

SET TO 50% - Press to stabilize a waveform quickly. The oscilloscope can
set the Trigger Level to be halfway between the minimum and
maximum voltage levels automatically. This is useful when you connect
a signal to the EXT TRIG connector and set the trigger source to Ext or
Ext/5.

FORCE - Press to complete the current waveform acquisition whether
the oscilloscope detects a trigger or not. This is useful for SINGLE
acquisitions and Normal trigger mode.

LEVEL - Turn to select the trigger threshold level. Press the Level front
panel knob to set the trigger level to zero.
See Trigger Types (on page 34) for more information.
