WaveAce 1000/2000
50 922131-00 Rev A
Math on 4 Channel WaveAce Models

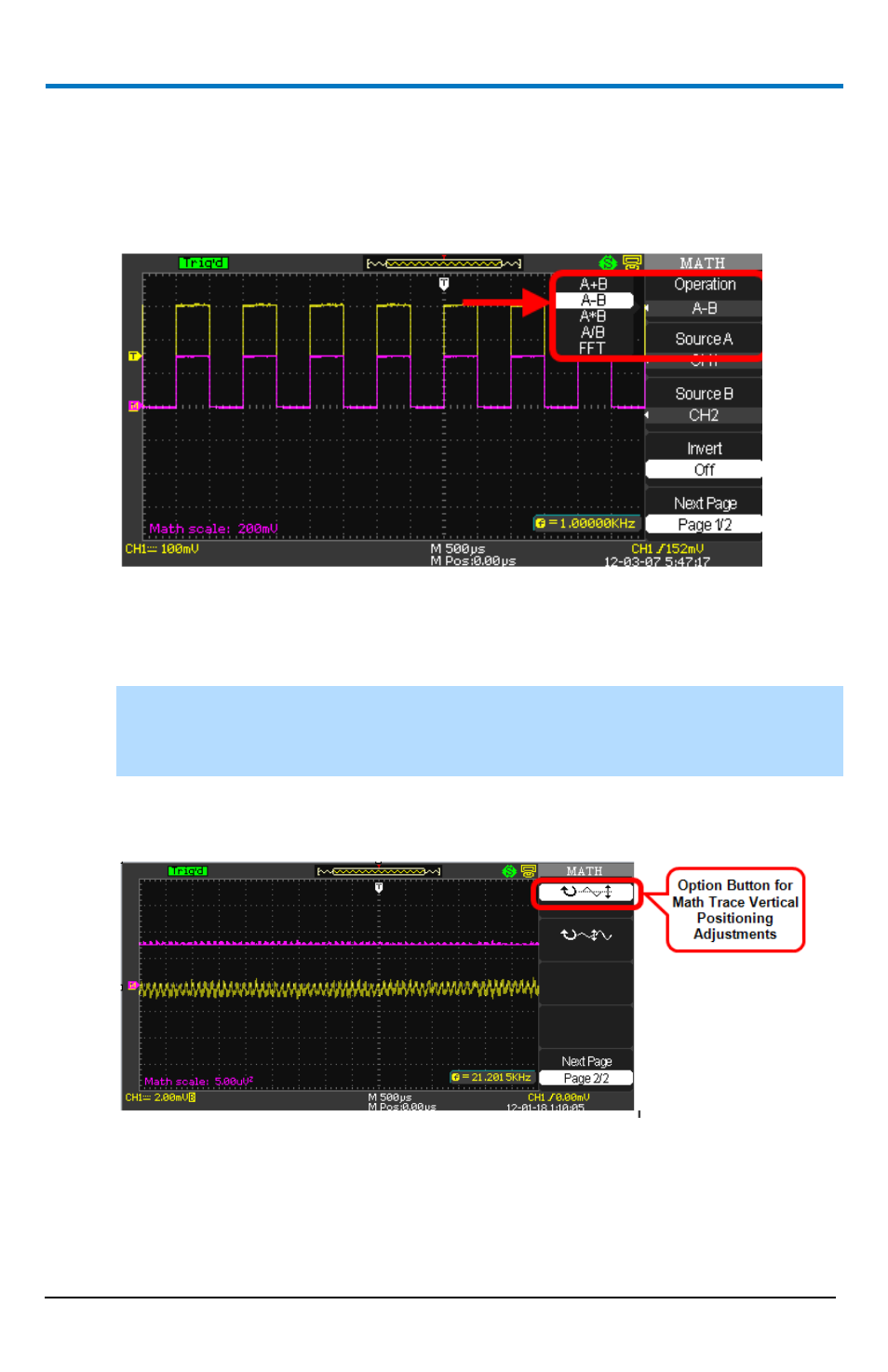

Math Menu Pages 1/2 and 2/2 and their options are described as follows:
1. Press the Operation option button and select a math operator A + B,A -
B, A * B, /, or FFT Spectrum Analyzer (on page 51).
2. The Source can be any channel, but not another math trace. Channel
behavior for the math operators force CH1+CH2 or CH3+CH4 selection
pairings (using addition as an example).
NOTE: Invert a waveform by pressing the CH1Invert or CH2Invert (or
CH3Invert or CH4Invert on 4 Channel models) option button and select
On.
3. Position your math trace vertically by pressing the following option
button and turning the Adjust knob as desired.
