WaveAce 1000/2000
40 922131-00 Rev A

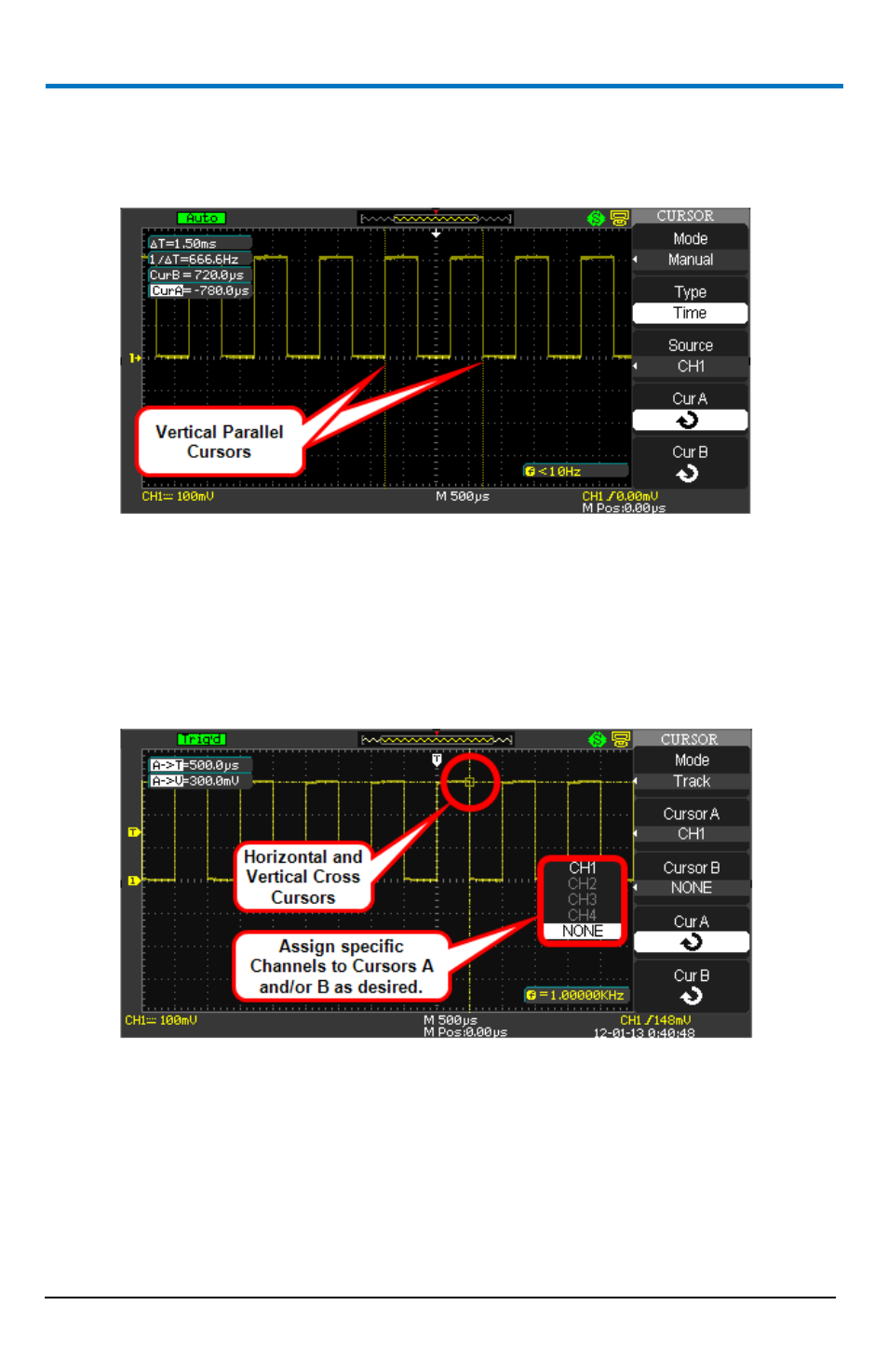

Voltage cursors appear as horizontal lines on the display and measure
the vertical parameters. Time cursors appear as vertical lines on the
display and measure the horizontal parameters.
Move cursors by pressing corresponding CurA, CurB option buttons,
and then using the Adjust front panel knob. Before using cursors, you
should make sure that you have set the signal source as the channel for
measuring.
2. Error! Bookmark not defined.Track - displays two cross-cursors. The
cross-cursors set the position on the waveform automatically.
Adjust the cursor position on the waveform by turning the Adjust front
panel knob. Measurements are shown in the upper-left of the grid.
3. Auto - Automatically places markers of what is being measured on the
waveform. These markers clarify parameter measurements by
displaying cursors and a visual representation of what is being
measured. When in Auto cursor mode, as you select measurement
parameters the markers will be displayed for the measurements.
