WaveAce 1000/2000

28

922131-00 Rev A

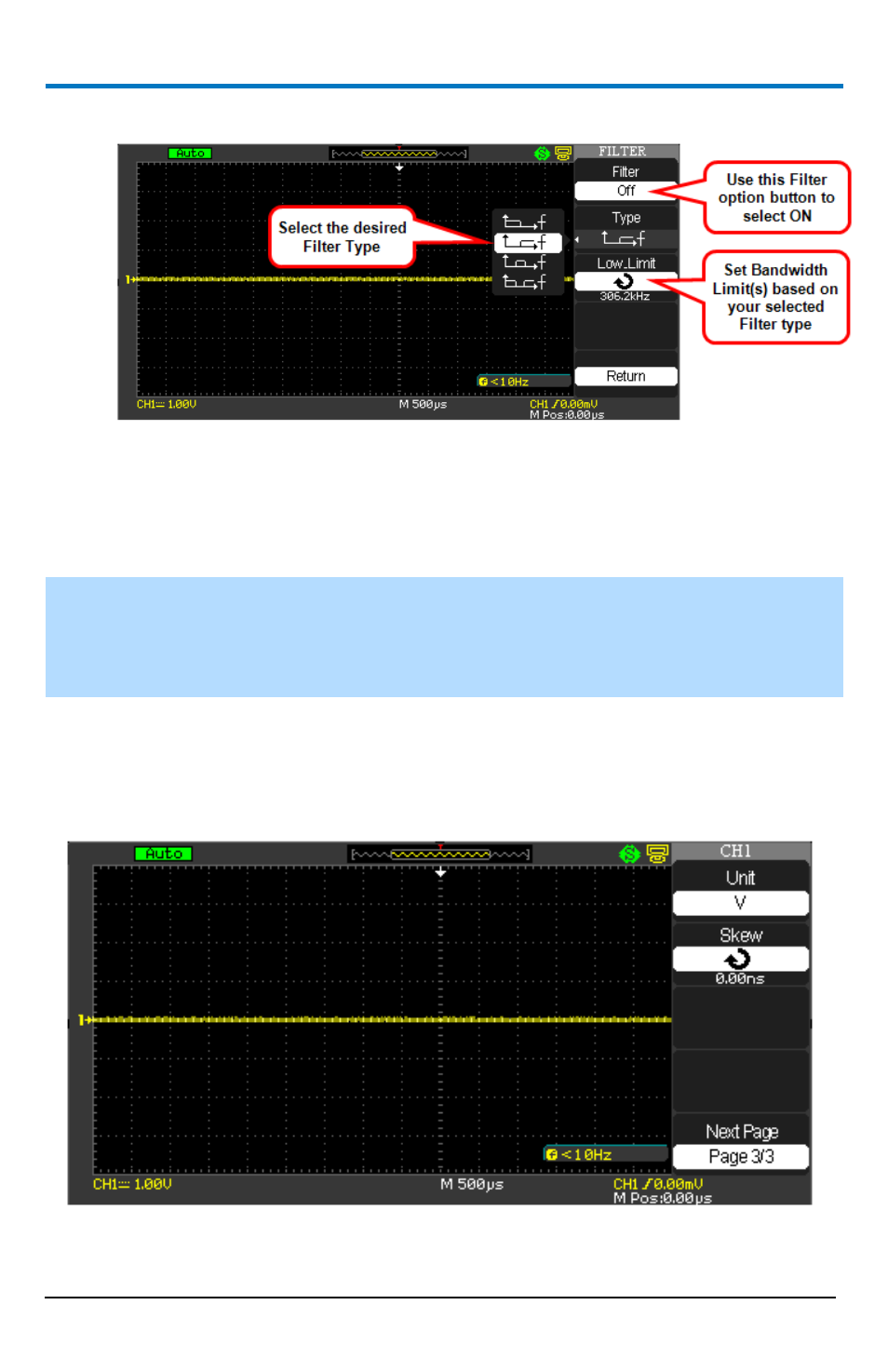

5. Press the Type option button and select a digital filter type.

6. Press the Upp. Limit option button and turn the Adjust front panel

knob to set the Upper limit.

7. Press the Low. Limit option button and turn the Adjust front panel knob

to set the Lower limit.

NOTE: If you select the Low Pass Filter (LPF) type, you can only set an Upper
Limit. If you select the High Pass Filter (HPF) type, you can only set a Lower
Limit. For both Band Pass Filter (BPF) and Band Stop Filter, you can set both
Upper and Lower Limits.

Unit and Skew Settings

On the channel menu, press the Next Page option button, showing page 3/3.
This menu allows you to set your desired Unit and Skew values.
