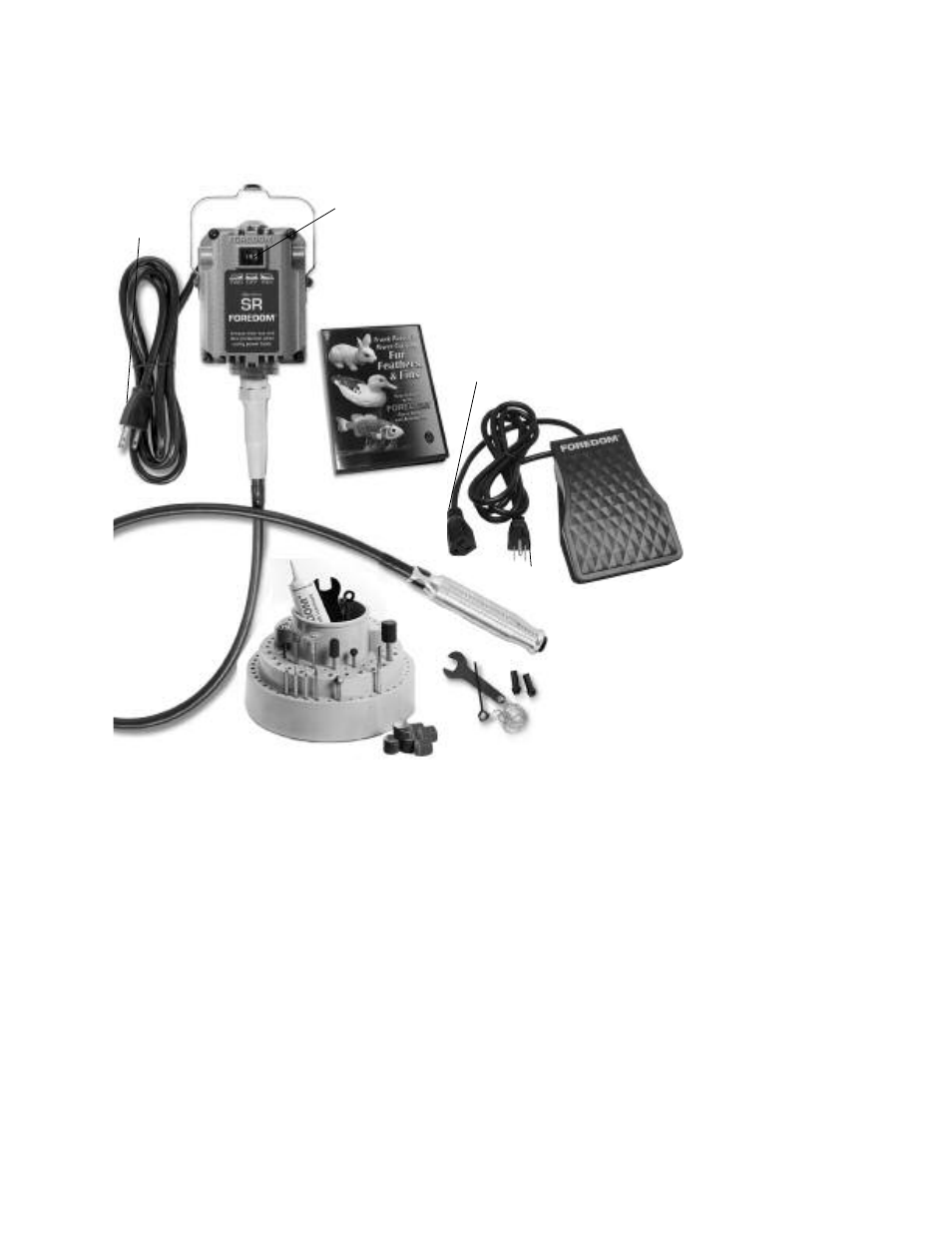

K.5240 Kit Product Specifications
The K.5240 Kit includes products that are ideal for woodcarving, but they can also be used
to accomplish many other tasks on metal, glass, acrylic, rubber, ceramics and more.
Series SR Motor
Permanently lubricated
Ball bearing
1/6 horsepower
Runs in forward and reverse
4 amps, 110-120 Volt,
AC current only
Variable speed up to 18,000 rpm
Zinc die cast metal housing
FCT Speed Control
Solid state, electronic
AC currently only
Low profile heavy
duty plastic housing
Screw holes for
mounting to wood
or metal plate for
added stability
Assembly
Kit. K.5240 contains three basic components– a reversing motor (with flexible shaft in protective
sheath), foot pedal, and handpiece. Assembly is very simple:
The flexible shaft and sheath come attached to the motor.
The removable handpiece also comes attached to the flexible shaft.
To connect the motor to the foot pedal, insert the 3-prong plug on the end of the motor power
cord into the socket connector on the shorter power cord in the foot pedal.
With the motor Forward/Off/Reverse Switch in the “off” position, plug the 3-prong plug on the
longer power cord from the foot control into a proper 3-wire electrical outlet.
The switch on the motor selects the rotational direction and turns the machine on & off (the foot
pedal is used to vary speed).
The machine is now ready to operate.
socket connector
for motor plug
motor
Forward/Off /Reverse
switch 3-prong motor
plug connects
to foot pedal
3-prong plug
connects to
wall outlet
44T Handpiece
Permanently lubricated
Heavy duty ball bearing
Collet-type chuck adaptable to
larger size accessories
Includes 3 collets (1/4″, 1/8″ and
3/32″) with 1/4″ collet installed.
Also metric collets and 1/16″.
Comes with pin and wrench for
changing collets & accessories
