Foredom H.35SJ User Manual
Important instructions, Important, For foredom

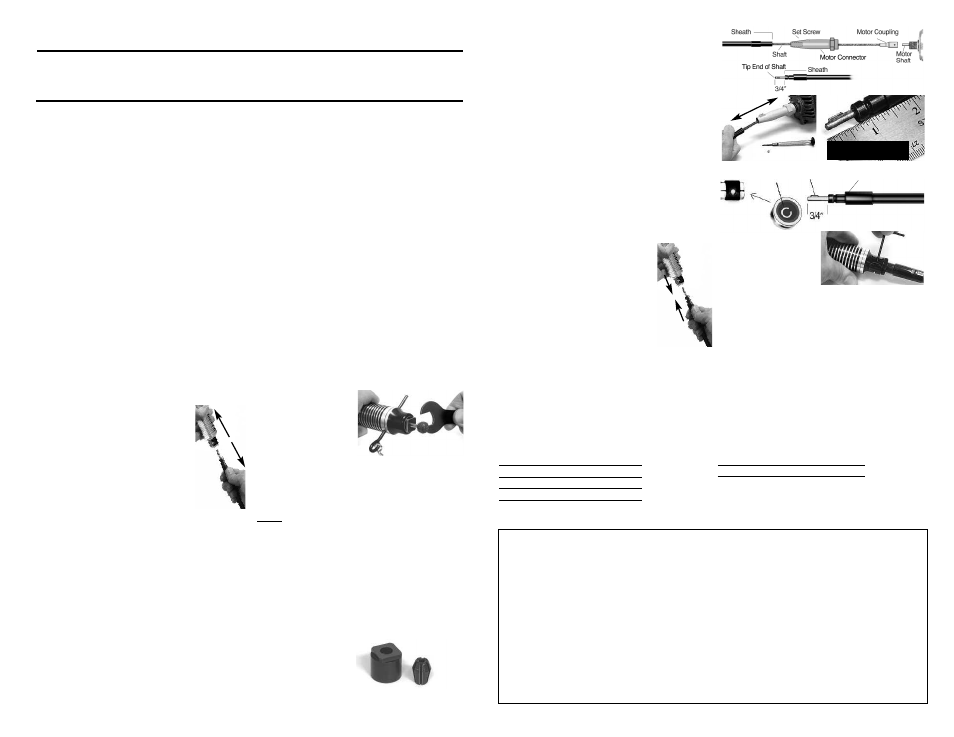

Adjust the Shaft and Sheath
It is important to check the sheath and shaft tip and properly
adjust them before attaching this handpiece to your Foredom
flexible shaft tool.
The tip of the flexible shaft should extend 3/4
″ beyond the end of
the sheath. This adjustment is made by loosening the set screw
in the motor connector and moving the sheath in or out while the
motor and shaft and sheath are hanging fully extended or laying
on a flat surface. When the shaft is adjusted correctly, tighten the
set screw in the motor connector.
Always make sure your power tool is unplugged
during any maintenance procedure.
Attach Handpiece to Flexible Shaft
Before attaching the handpiece, connect the motor to the
speed control and plug into power source.
To Attach Handpiece: while holding the black colored metal
outer sheath tip facing upward, turn on the control so that the
motor is running at about half speed and then
turn it off. While the inner key tip is still rotat-
ing, grip the handpiece and push it onto the
sheath tip with one firm motion until it snaps
into place (shown at right). This procedure will
align the key tip into the keyway slot (shown
above). To verify this, insert and tighten an
accessory into collet or chuck, turn on control
to a low speed and observe that the accessory
rotates smoothly. Finally retighten locking
screw to secure handpiece on sheath.
For Foredom
®
Handpieces H.25, H.35, and H.35SJ
See your Power Tool Owner's Manual for
complete instructions on use, care and
maintenance.
For More Information
on Foredom machines, hand-
pieces, or accessories, contact your local dealer. When
no local dealer is available, write The Foredom Electric
Company, 16 Stony Hill Road, Bethel, CT 06801,
email: [email protected], call
(203) 792-8622, visit our website at www.foredom.net.
Always wear proper eye protection
while using this handpiece.
Form 1226 n
12/10
Printed in U.S.A.
Before attaching this Handpiece please
read these instructions.
Never use a damaged, bent, vibrating, or
out of balance accessory.
Note: This illustration does not apply to slip joint connections.
IMPORTANT INSTRUCTIONS
IMPORTANT!
Repair Service
Factory repairs are done promptly and at reasonable cost.
If you wish, you can send your equipment directly to the
factory marked: “Attention: Service Department”. Include
your street address, daytime phone number and/or email
address, and a brief note describing the problem with the
equipment. Estimates will be made upon request.
keyway
slot
inside,
back end of
handpiece
key tip end
of shaft
metal sheath tip
Handpiece Locking
Screw on H.25,
H.35 & H.35SJ
The locking screw on the
bottom of your handpiece
prevents unintended release from the shaft and sheath and
keeps the handpiece from rotating on the sheath. Some
users who make frequent handpiece changes, prefer to use
this handpiece with locking screw removed since it is easi-
er to switch out handpieces.
To change an accessory
insert the pin provided into
the pilot hole and through
the spindle hole (turn spin-
dle to align holes).
Apply wrench and loosen
chuck nut slightly by turning
counterclockwise. Insert shank of accessory into collet.
Tighten chuck nut with wrench, keeping pin in pilot hole.
Test for a secure hold by pulling on accessory. Remove
pin.
Never screw the chuck nut back on too tightly.
If you tighten an empty collet or insert an
accessory which is too small or too large
you may damage the collet.
Changing Collets
Foredom offers additional collets for holding burs and
other accessories with different shank sizes.
To Change a Collet insert pin provided into the pilot hole
and through the spindle hole (turn spindle to align holes).
Apply wrench and unscrew chuck nut by turning
counterclockwise.
Remove chuck nut to
expose collet and pull collet
out of handpiece shaft. Slip
new collet in place and
screw on chuck nut with
pin and wrench.
Maintenance and Lubrication
Handpieces: no lubrication is required. Putting oil or grease
into the front or back of these handpieces will damage their
pre-lubricated ball bearings. The collet seat and threads of
the handpiece should be kept free of dirt, chips, dust
or debris.
Flex Shafts: Follow the instructions for cleaning and lubrica-
tion that came with your flexible shaft machine or view the
online maintenance videos at www.foredom.net
To Change an Accessory
Be sure the shank size of the accessory is paired with the
same size collet. Inserting an accessory which is too small or
too large may damage the collet.
Handpiece Accessories and Spare Parts
Pins and wrenches that are lost or damaged can be
ordered from your dealer or the factory.
Collets for H.25, H.35 and H.35SJ
P/N
Nominal Capacity
P/N
Nominal Capacity
HP103116
1/16
″
HP103124
3mm (comes with H.35SJ)
HP103115
3/32
″
HP103126
4mm
HP103114
1/8
″ (comes with H.25 & H.35)
HP103119* 6mm
HP103113
3/16
″
HP103112*
1/4
″ (comes with H.25)
*Not recommended for handpiece H.35
LIMITED WARRANTY
Foredom
®
warrants its product to be free of defects in material or workmanship for a period of 90 days after purchase. During
the warranty period, the defective product will be repaired or replaced without charge or, at our option, the purchase price will
be refunded. This warranty does not cover damage caused in transit or by accident, misuse, or ordinary wear.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE
HEREBY LIMITED IN DURATION TO A PERIOD ENDING 90 DAYS FROM DATE OF PURCHASE, AND WE WILL NOT BE LIABLE
OR RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES. Repair or replacement will be made at our option if
the product is returned post-paid to:
The Foredom Electric Company
16 Stony Hill Road, Bethel CT 06801
All warranty repairs must be done at the factory at the address above. We will not pay any shipping or transportation charges.
This warranty covers the original purchaser of the product only. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
To Remove Handpiece from Flexible Shaft:
1. First make sure your power tool
is unplugged.
2. If the handpiece has a locking screw in
place remove it – instructions on reverse.
3. To remove, simply pull the handpiece
off the shaft and sheath with a firm grip.
14,000 RPM is the recommended
maximum speed for the H.35 hand-
piece.
The bearings in the H.35 will overheat and may
cause damage if you operate your motor at full
speed (generally 18,000 RPM).
chuck nut and collet
P/N HP103117– Pin and Wrench for handpieces H.25,
H.35, and H.35SJ
HP103000 5 Collet Set
includes: 1/16
″, 3/32″, 1/8″, 3/16″, and 1/4″
*
collets.
