Foredom C.FCT-2CE - Manual

Tigger Switch
5
6
1
4
3
2
W
ire
Conne
cto
r
BLU
BRN
GRN/YLW
EMI Filter with
Integrated Male Plug,
to AC Power Source
BRN
BLU
GRN/YLW
Female Receptacle
to Motor
FOREDOM
The Foredom Electric Company
16 Stony Hill Rd., Bethel, CT 06801 • 203−792−8622
Fax: 203−796−7861 • www.foredom.net
}
Qty Description Part No. Item
1 Cover CP10852B 1
1 Trigger Switch, 250V CP11027 2
1 Screw Terminal CP10534M 3
1 Base CP10851F 4
1 Front Base Pad CP10859 5
1 SCREW, 6−32 x 1" CP10856 6
1 Washer, #6 CP10862 7
1 Rear Base Pad CP10860 8
1 Strain Relief CP10002 9
1 Female Cordset CP10868 10
2 Screw, 6−32 x 3/8", Flathead MP2027 11
1 *Detachable Cordset, or Substitute Option CP10835 12
1 EMI Filter CP10879 13

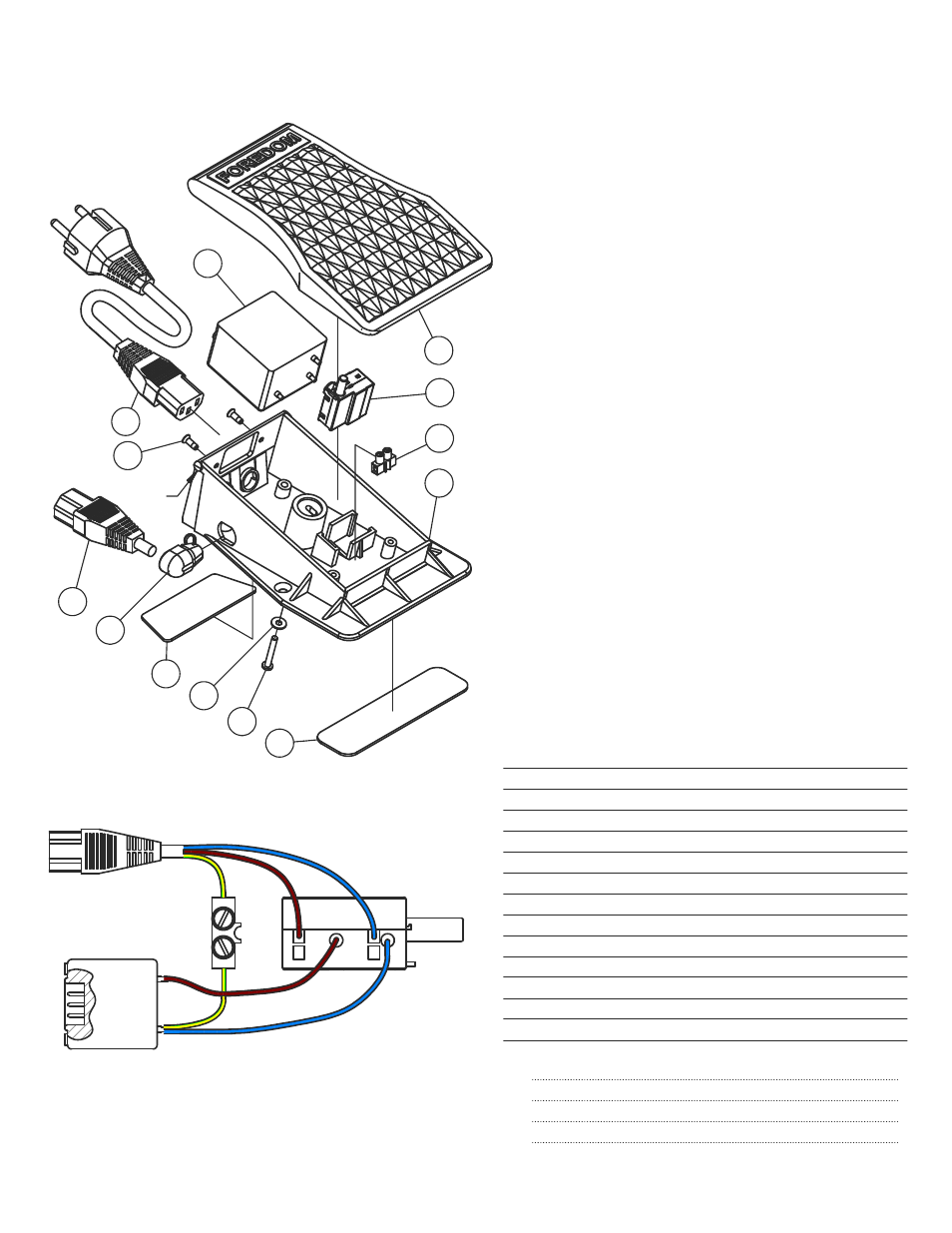

Parts List
C.FCT−2CE
Foot Control, 230V
Wiring Diagram
Cordset Option
CPOption21 CP10834 Detachable, United Kingdom
*CPOption22 CP10835 Detachable, Continental Europe
CPOption26 CP10836 Detachable, Australian
FORM DN 12/10
3.
4.
Instructions for Removing
and Replacing Trigger Switch
Disconnect Foot Control from Motor and Wall Outlet.
Using flat blade of screwdriver inserted at Point A
between Cover (1) and Base (4), carefully pry Cover off.
Remove Trigger Switch (2) from Base mounting bracket.
Unscrew cover adjustment screw (6).
6.
7.
8.
Connect Wires to New Trigger Switch as shown in the Wiring
Diagram. Push wires all the way in, so no bare wire is exposed.
On Screw Terminals 1 and 2, push wire leads all the way into the
socket then tighten the screws firmly. Push other wire leads all the
way into the designated terminals. Pull on all the wires, making sure
they are secure. Place Switch back into Base mounting bracket.
Snap cover (1) onto hinge posts on top of rear corners of base (4).
Insert adjustment screw (6) through washer (7) and into post
slot and threaded insert in cover (1). Tighten with screwdriver
until cover is just touching the trigger switch pushrod. Do not
tighten the screw further to avoid pressing the Switch Pushrod
into a permanently "on" position.
Position wires around adjustment screw post so wires will not
interfere with cover travel.
On older Switches, all the terminals will be push-in, spring clamp
type. On newer Switches, some terminals have screw fasteners.
To remove wires from the push-in terminals, insert 1.3mm [.05in]
approximate diameter pin or the blade of a jeweler's screwdriver
all the way into the terminal socket to release the spring clamp.
Grasp the tool and wire and pull them together out of the socket.
If you have difficulty removing the wires from the push-in terminals
and you have wire-cutting, stripping, and soldering tools, you can
cut the wires off where they exit from the terminals. To prepare
the cut wires for installation into the replacement Switch, strip
them back exactly 8.25 mm [5/16 in], then apply solder to the
stripped ends to fuse the strands together.
2.
1.
5.
1
2
3
4
6
7
8
9
10
11
13
12
5
Point A
